Hallo,
ich will aktuell meine FB7490 mit dem ASUS DSL-AC68U ersetzen. Leider habe ich ziemliche Probleme mit dem VDSL Verbindungsaufbau. Scheinbar kein Einzelfall. Bisher trifft aber kein Fall mein Problem..
Naja..nach einigen Verkabelungsproblemen findet mein Router mittlerweile immerhin das DSL Signal. Auch wird erkannt, dass ich VDSL 50000 habe. Internet findet der Router aber trotzdem nicht. Das Log sieht folgendermaßen aus:
Das Folgende sind meine Einstellungen
Wäre sehr dankbar über Hilfe!
ich will aktuell meine FB7490 mit dem ASUS DSL-AC68U ersetzen. Leider habe ich ziemliche Probleme mit dem VDSL Verbindungsaufbau. Scheinbar kein Einzelfall. Bisher trifft aber kein Fall mein Problem..
Naja..nach einigen Verkabelungsproblemen findet mein Router mittlerweile immerhin das DSL Signal. Auch wird erkannt, dass ich VDSL 50000 habe. Internet findet der Router aber trotzdem nicht. Das Log sieht folgendermaßen aus:
Code:
Jan 1 00:00:13 syslogd started: BusyBox v1.17.4
Jan 1 00:00:13 kernel: klogd started: BusyBox v1.17.4 (2014-09-17 18:41:13 CST)
Jan 1 00:00:13 kernel: Linux version 2.6.36.4brcmarm (sam@SW5-Server-50) (gcc version 4.5.3 (Buildroot 2012.02) ) #2 SMP PREEMPT Mon Sep 1 21:26:05 CST 2014
Jan 1 00:00:13 kernel: CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=10c53c7f
Jan 1 00:00:13 kernel: CPU: VIPT nonaliasing data cache, VIPT nonaliasing instruction cache
Jan 1 00:00:13 kernel: Machine: Northstar Prototype
Jan 1 00:00:13 kernel: Ignoring unrecognised tag 0x00000000
Jan 1 00:00:13 kernel: Memory policy: ECC disabled, Data cache writealloc
Jan 1 00:00:13 kernel: Built 1 zonelists in Zone order, mobility grouping on. Total pages: 60416
Jan 1 00:00:13 kernel: Kernel command line: root=/dev/mtdblock2 console=ttyS0,115200 init=/sbin/preinit earlyprintk debug
Jan 1 00:00:13 kernel: Memory: 255500k/255500k available, 6644k reserved, 0K highmem
Jan 1 00:00:14 kernel: Virtual kernel memory layout:
Jan 1 00:00:14 kernel: vector : 0xffff0000 - 0xffff1000 ( 4 kB)
Jan 1 00:00:14 kernel: fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
Jan 1 00:00:14 kernel: DMA : 0xf7e00000 - 0xffe00000 ( 128 MB)
Jan 1 00:00:14 kernel: vmalloc : 0xd0800000 - 0xf0000000 ( 504 MB)
Jan 1 00:00:14 kernel: lowmem : 0xc0000000 - 0xd0000000 ( 256 MB)
Jan 1 00:00:14 kernel: modules : 0xbf000000 - 0xc0000000 ( 16 MB)
Jan 1 00:00:14 kernel: .init : 0xc0008000 - 0xc003d000 ( 212 kB)
Jan 1 00:00:14 kernel: .text : 0xc003d000 - 0xc03ad000 (3520 kB)
Jan 1 00:00:14 kernel: .data : 0xc03c4000 - 0xc03e6fe0 ( 140 kB)
Jan 1 00:00:14 kernel: External imprecise Data abort at addr=0x0, fsr=0x1c06 ignored.
Jan 1 00:00:14 kernel: Mount-cache hash table entries: 512
Jan 1 00:00:14 kernel: CPU1: Booted secondary processor
Jan 1 00:00:14 kernel: Found a AMD NAND flash:
Jan 1 00:00:14 kernel: Total size: 128MB
Jan 1 00:00:14 kernel: Block size: 128KB
Jan 1 00:00:14 kernel: Page Size: 2048B
Jan 1 00:00:14 kernel: OOB Size: 64B
Jan 1 00:00:14 kernel: Sector size: 512B
Jan 1 00:00:14 kernel: Spare size: 16B
Jan 1 00:00:14 kernel: ECC level: 8 (8-bit)
Jan 1 00:00:14 kernel: Device ID: 0x 1 0xf1 0x 0 0x1d 0x 1 0xf1
Jan 1 00:00:14 kernel: bio: create slab <bio-0> at 0
Jan 1 00:00:14 kernel: PCI: no core
Jan 1 00:00:14 kernel: PCI: no core
Jan 1 00:00:14 kernel: PCI: Fixing up bus 0
Jan 1 00:00:14 kernel: PCI: Fixing up bus 0
Jan 1 00:00:14 kernel: PCI: Fixing up bus 1
Jan 1 00:00:14 kernel: PCI: Fixing up bus 0
Jan 1 00:00:14 kernel: PCI: Fixing up bus 2
Jan 1 00:00:14 kernel: VFS: Disk quotas dquot_6.5.2
Jan 1 00:00:14 kernel: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
Jan 1 00:00:14 kernel: pflash: found no supported devices
Jan 1 00:00:15 kernel: bcmsflash: found no supported devices
Jan 1 00:00:15 kernel: Boot partition size = 524288(0x80000)
Jan 1 00:00:15 kernel: lookup_nflash_rootfs_offset: offset = 0x200000
Jan 1 00:00:15 kernel: nflash: squash filesystem with lzma found at block 28
Jan 1 00:00:15 kernel: Creating 4 MTD partitions on "nflash":
Jan 1 00:00:15 kernel: 0x000000000000-0x000000080000 : "boot"
Jan 1 00:00:15 kernel: 0x000000080000-0x000000200000 : "nvram"
Jan 1 00:00:15 kernel: 0x000000200000-0x000004000000 : "linux"
Jan 1 00:00:15 kernel: 0x00000039f580-0x000004000000 : "rootfs"
Jan 1 00:00:15 kernel: === PPTP init ===
Jan 1 00:00:15 kernel: Registering the dns_resolver key type
Jan 1 00:00:15 kernel: Spare area=64 eccbytes 56, ecc bytes located at:
Jan 1 00:00:15 kernel: 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 27 28 29 30 31 34 35 36 37 38 39 40 41 42 43 44 45 46 47 50 51 52 53 54 55 56 57 58 59 60 61 62 63
Jan 1 00:00:15 kernel: Available 7 bytes at (off,len):
Jan 1 00:00:15 kernel: (1,1) (16,2) (32,2) (48,2) (0,0) (0,0) (0,0) (0,0)
Jan 1 00:00:15 kernel: Bad eraseblock 4 at 0x000000080000
Jan 1 00:00:15 kernel: Options: NO_AUTOINCR,NO_READRDY,BBT_SCAN2NDPAGE,
Jan 1 00:00:15 kernel: Creating 2 MTD partitions on "brcmnand":
Jan 1 00:00:15 kernel: 0x000004000000-0x000007ec0000 : "brcmnand"
Jan 1 00:00:15 kernel: 0x000007ec0000-0x000008000000 : "asus"
Jan 1 00:00:15 kernel: VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
Jan 1 00:00:15 kernel: ctf: module license 'Proprietary' taints kernel.
Jan 1 00:00:15 kernel: Disabling lock debugging due to kernel taint
Jan 1 00:00:15 kernel: et_module_init: passivemode set to 0x0
Jan 1 00:00:15 kernel: et_module_init: txworkq set to 0x0
Jan 1 00:00:15 kernel: et_module_init: et_txq_thresh set to 0x400
Jan 1 00:00:15 kernel: eth0: Broadcom BCM47XX 10/100/1000 Mbps Ethernet Controller 6.37.14.86 (r456083)
Jan 1 00:00:15 kernel: wl_module_init: passivemode set to 0x0
Jan 1 00:00:15 kernel: wl_module_init: txworkq set to 0x0
Jan 1 00:00:15 kernel: eth1: Broadcom BCM4360 802.11 Wireless Controller 6.37.14.86 (r456083)
Jan 1 00:00:15 kernel: eth2: Broadcom BCM4360 802.11 Wireless Controller 6.37.14.86 (r456083)
Jan 1 00:00:15 kernel: Empty flash at 0x02ed145c ends at 0x02ed1800
Jan 1 00:00:15 kernel: JFFS2 notice: (346) check_node_data: wrong data CRC in data node at 0x02ed0418: read 0x8cd5a90b, calculated 0x664ef986.
Jan 1 00:00:15 kernel: SCSI subsystem initialized
Jan 1 00:00:15 syslog: module vfat not found in modules.dep
Jan 1 00:00:15 kernel: jnl: driver (lke_8.9.0, Sep 17 2014 21:00:34, LBD=ON) loaded at bf5ec000
Jan 1 00:00:16 kernel: ufsd:: trace mask set to 0000000f
Jan 1 00:00:16 kernel: ufsd: driver (lke_8.9.0 lke_8.9.0_r225078_b43, LBD=ON, delalloc, acl, ioctl, ugm, sd(1), wb, tr) loaded at bf5f9000
Jan 1 00:00:16 kernel: NTFS support included
Jan 1 00:00:16 kernel: Hfs+/HfsJ support included
Jan 1 00:00:16 kernel: optimized: speed
Jan 1 00:00:16 kernel: Build_for__ASUS_PRODUCTS_003_lke_8.9.0_r225078_b43
Jan 1 00:00:16 kernel: xhci_hcd 0000:00:0c.0: Failed to enable MSI-X
Jan 1 00:00:16 kernel: xhci_hcd 0000:00:0c.0: failed to allocate MSI entry
Jan 1 00:00:16 kernel: usb usb1: No SuperSpeed endpoint companion for config 1 interface 0 altsetting 0 ep 129: using minimum values
Jan 1 00:00:19 stop_nat_rules: apply the redirect_rules!
Jan 1 00:00:19 WAN Connection: Ethernet link down.
Jan 1 00:00:19 dnsmasq[554]: warning: interface ppp1* does not currently exist
Jan 1 00:00:19 DSL-AC68U: start httpd
Jan 1 00:00:20 syslog: Generating SSL certificate...
Jan 1 00:00:24 miniupnpd[600]: HTTP listening on port 59014
Jan 1 00:00:24 miniupnpd[600]: Listening for NAT-PMP traffic on port 5351
Jan 1 00:00:24 disk monitor: be idle
Jan 1 00:00:25 pppd[604]: pppd 2.4.5 started by admin, uid 0
Jan 1 00:00:36 kernel: nf_conntrack_rtsp v0.6.21 loading
Jan 1 00:00:37 kernel: nf_nat_rtsp v0.6.21 loading
Jan 1 00:00:37 zcip client: configured 169.254.33.51
Jan 1 00:00:38 miniupnpd[600]: Failed to get ip address for interface
Jan 1 00:00:54 rc_service: httpd 560:notify_rc start_dsl_autodet
Jan 1 00:01:00 pppd[604]: Timeout waiting for PADO packets
Jan 1 00:01:00 pppd[604]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:01:00 pppd[604]: Connect: ppp0 <--> vlan100
Jan 1 00:01:00 pppd[604]: PAP authentication failed
Jan 1 00:01:07 pppd[604]: Connection terminated.
Jan 1 00:01:07 pppd[604]: Modem hangup
Jan 1 00:01:17 pppd[604]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:01:17 pppd[604]: Connect: ppp0 <--> vlan100
Jan 1 00:01:17 pppd[604]: PAP authentication failed
Jan 1 00:01:23 pppd[604]: Connection terminated.
Jan 1 00:01:23 pppd[604]: Modem hangup
Jan 1 00:01:34 pppd[604]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:01:34 pppd[604]: Connect: ppp0 <--> vlan100
Jan 1 00:01:34 pppd[604]: PAP authentication failed
Jan 1 00:01:40 pppd[604]: Connection terminated.
Jan 1 00:01:40 pppd[604]: Modem hangup
Jan 1 00:02:22 rc_service: httpd 560:notify_rc restart_dsl_setting;restart_dsl_wireless 0
Jan 1 00:02:25 pppd[604]: Unable to complete PPPoE Discovery
Jan 1 00:02:34 pppd[724]: pppd 2.4.5 started by admin, uid 0
Jan 1 00:02:43 kernel: wl_module_init: passivemode set to 0x0
Jan 1 00:02:43 kernel: wl_module_init: txworkq set to 0x0
Jan 1 00:02:43 kernel: eth1: Broadcom BCM4360 802.11 Wireless Controller 6.37.14.86 (r456083)
Jan 1 00:02:43 kernel: eth2: Broadcom BCM4360 802.11 Wireless Controller 6.37.14.86 (r456083)
Jan 1 00:02:45 zcip client: configured 169.254.33.51
Jan 1 00:02:54 kernel: br0: received packet on eth1 with own address as source address
Jan 1 00:02:57 miniupnpd[600]: Failed to get ip address for interface
Jan 1 00:03:09 pppd[724]: Timeout waiting for PADO packets
Jan 1 00:03:10 pppd[724]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:03:10 pppd[724]: Connect: ppp0 <--> vlan100
Jan 1 00:03:10 pppd[724]: PAP authentication failed
Jan 1 00:03:17 pppd[724]: Connection terminated.
Jan 1 00:03:17 pppd[724]: Modem hangup
Jan 1 00:03:27 pppd[724]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:03:27 pppd[724]: Connect: ppp0 <--> vlan100
Jan 1 00:03:27 pppd[724]: PAP authentication failed
Jan 1 00:03:33 pppd[724]: Connection terminated.
Jan 1 00:03:34 pppd[724]: Modem hangup
Jan 1 00:03:45 pppd[724]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:03:45 pppd[724]: Connect: ppp0 <--> vlan100
Jan 1 00:03:45 pppd[724]: PAP authentication failed
Jan 1 00:03:51 pppd[724]: Connection terminated.
Jan 1 00:03:51 pppd[724]: Modem hangup
Jan 1 00:04:36 pppd[724]: Timeout waiting for PADO packets
Jan 1 00:05:18 pppd[724]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:05:18 pppd[724]: Connect: ppp0 <--> vlan100
Jan 1 00:05:19 pppd[724]: PAP authentication failed
Jan 1 00:05:25 pppd[724]: Connection terminated.
Jan 1 00:05:25 pppd[724]: Modem hangup
Jan 1 00:05:35 pppd[724]: Connected to 00:30:88:1f:17:4e via interface vlan100
Jan 1 00:05:35 pppd[724]: Connect: ppp0 <--> vlan100
Jan 1 00:05:35 pppd[724]: PAP authentication failed
Jan 1 00:05:41 pppd[724]: Connection terminated.
Jan 1 00:05:41 pppd[724]: Modem hangup

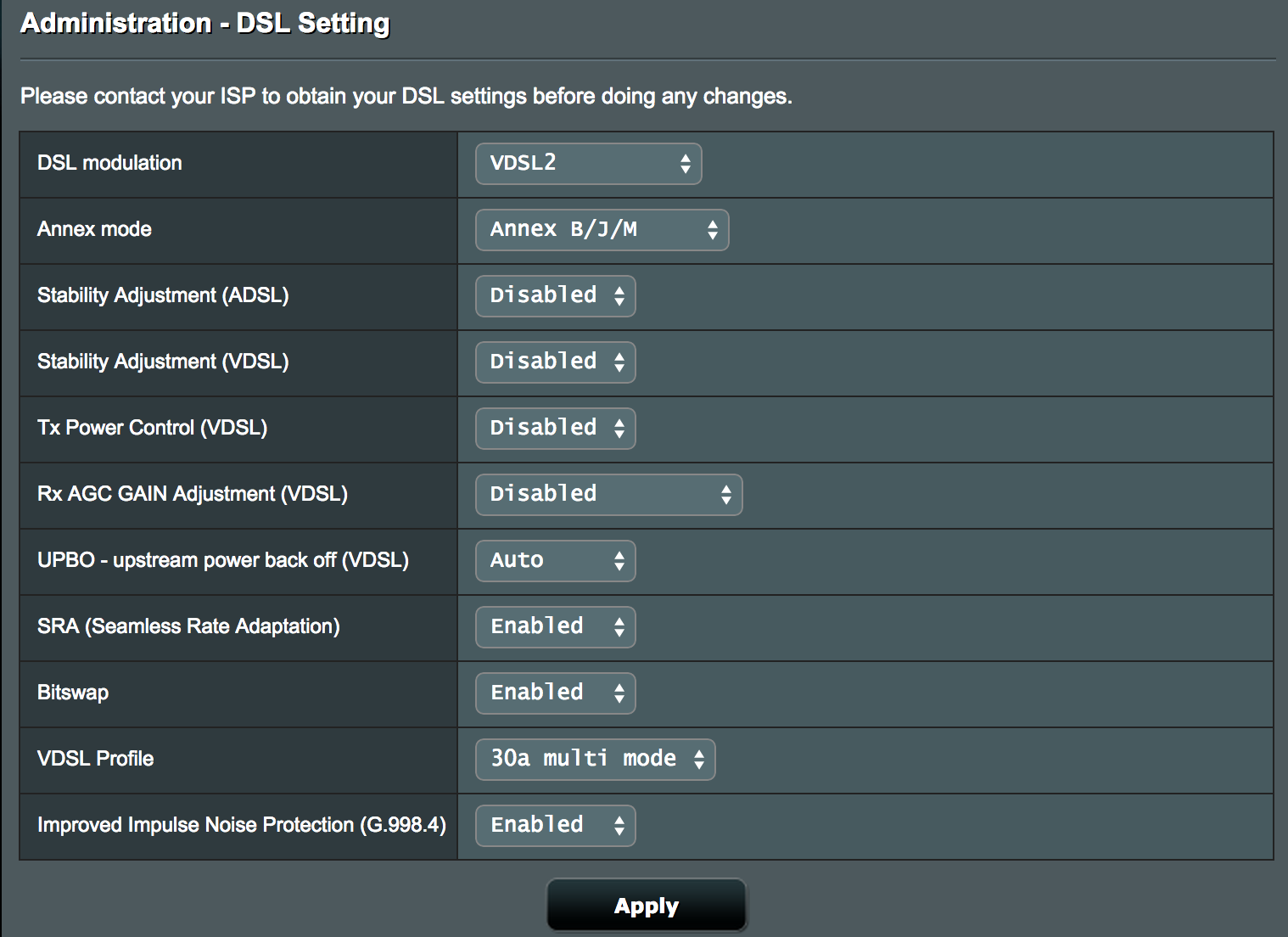

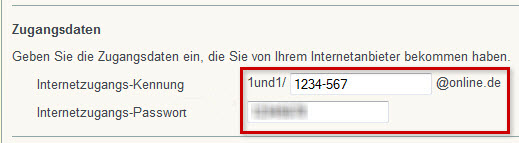

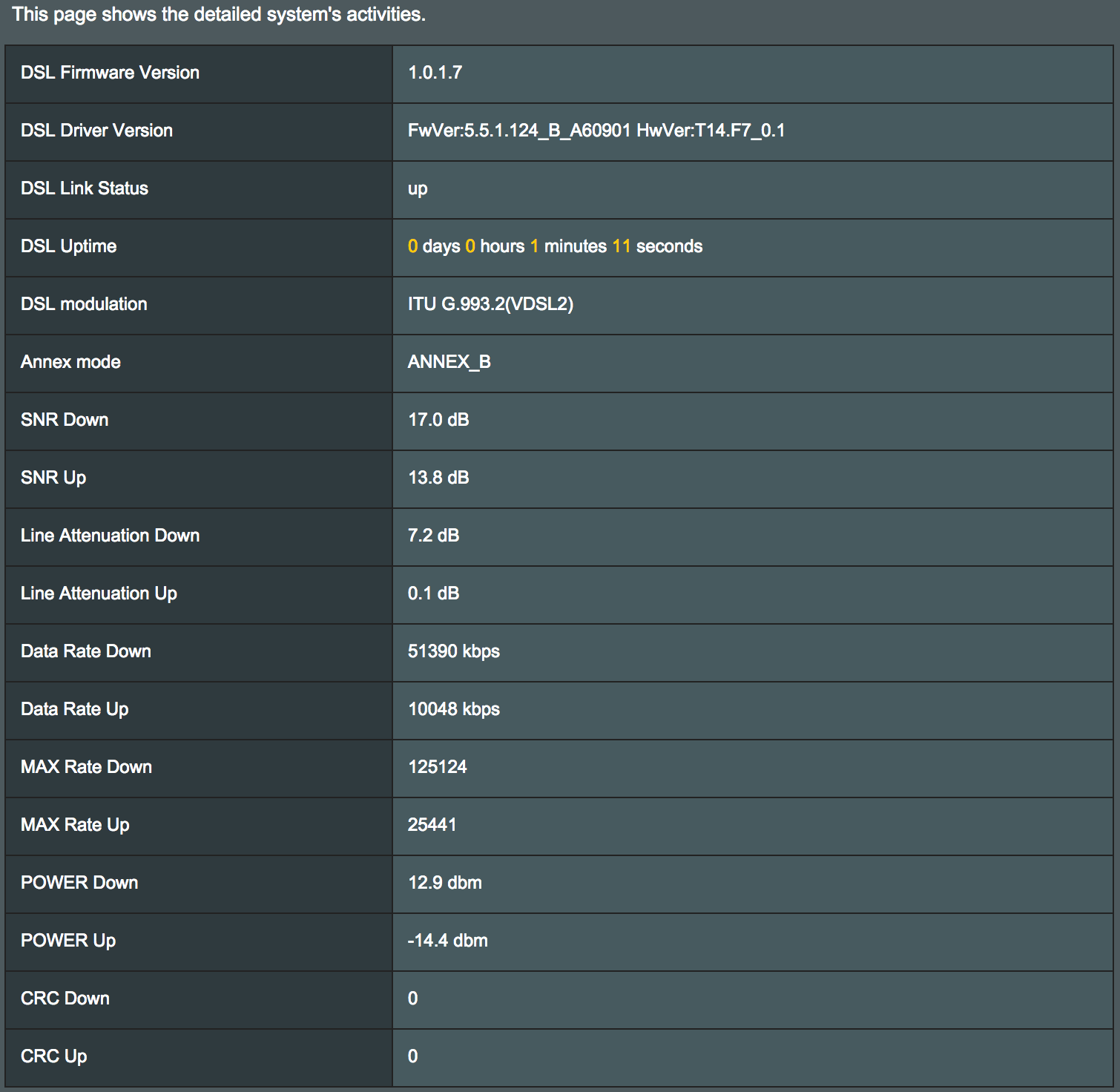

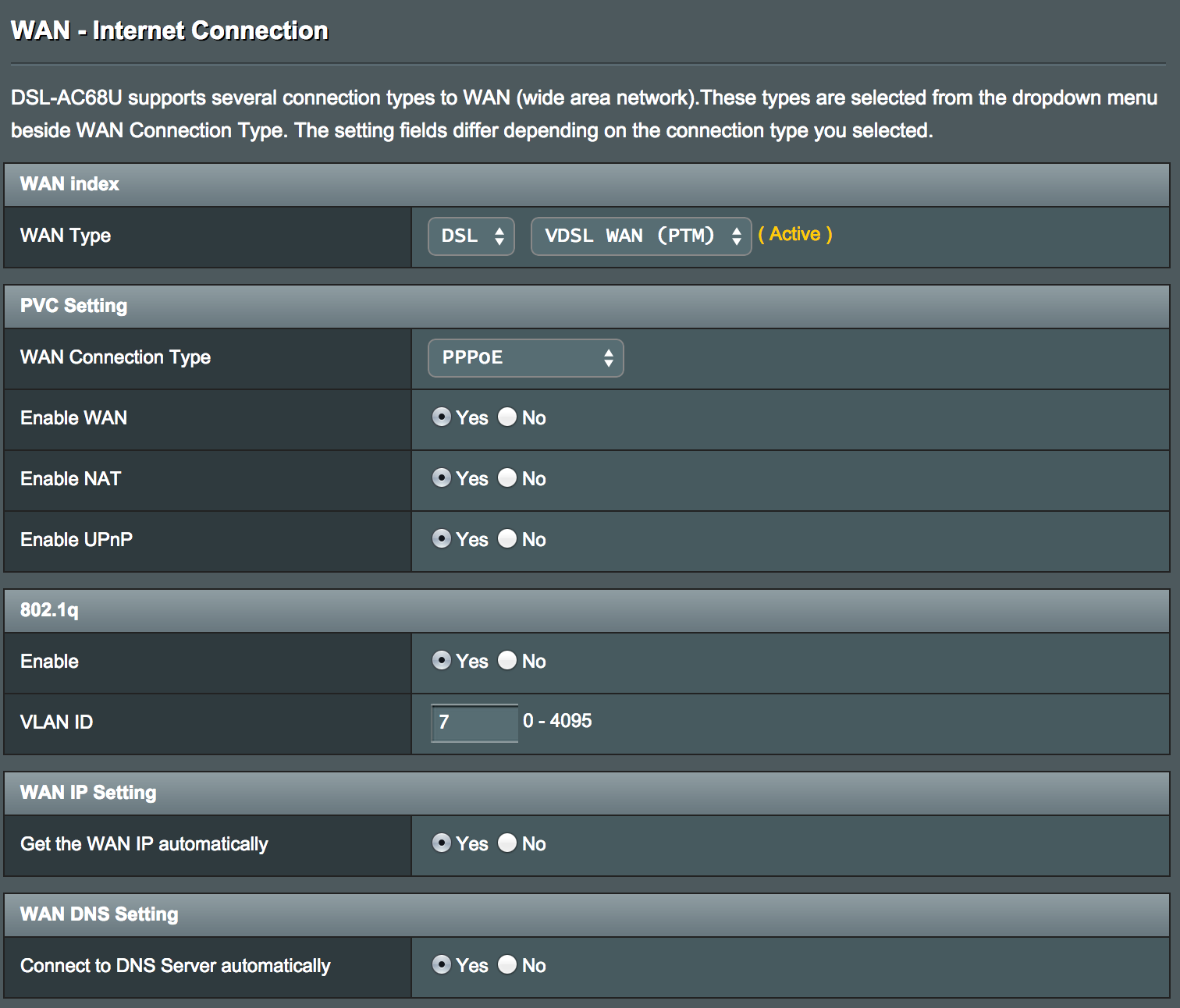

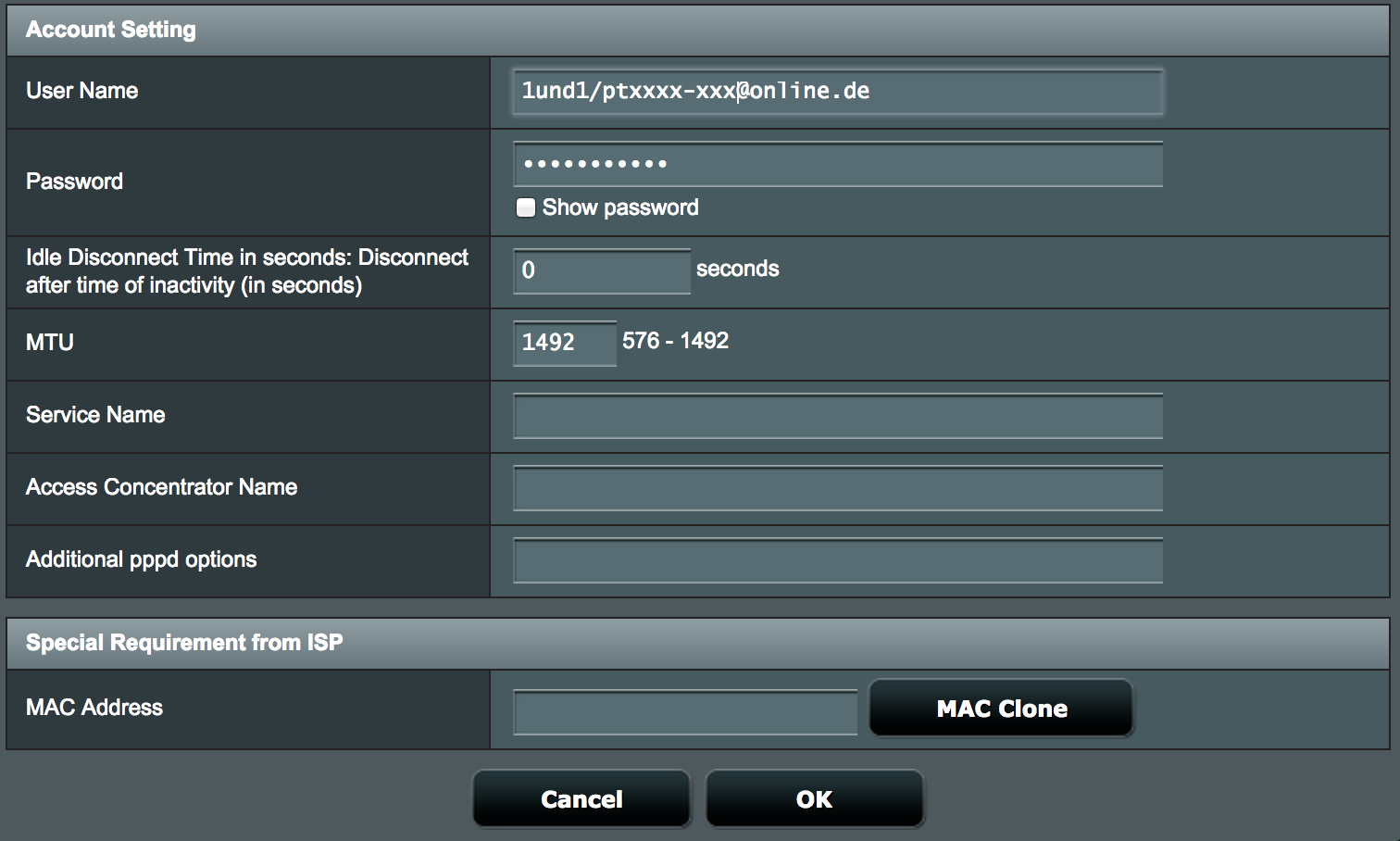

Das Folgende sind meine Einstellungen
Wäre sehr dankbar über Hilfe!
