Hallo,
an meinem Rechner funktioniert eine externe Festplatte nicht mehr
und ich wäre für Hinweise, wie ich weiter verfahren soll, sehr dankbar.
Untenstehend die hoffentlich sachdienlichen Informationenen.
Da auch mein letzter Versuch (Rebuild BS, siehe unten Ziff. 4.3) fehlgeschlagen ist, frage ich mich, ob überhaupt noch Aussicht besteht, die Daten retten zu können. Oder kann ich die jetzt abschreiben?
Da ich mich in diesem Bereich überhaupt nicht auskenne, wäre ich für Eure Hilfe hier sehr dankbar.
Vielen Dank im Voraus ,
Maverick2018
----
1. System
AMD Athlon(tm) II X4 640 mit 3.00 GHz
RAM 4,00 GB
OS: Windows 10 Home 64-bit, Version 1709
2. Externe Festplatte
Trekstor DataStation maxi.mu
279,46 GB
Datenträgerverwaltung:
3. Windows Fehlermeldung
"Sie müssen den Datenträger E:/ formatieren, bevor sie ihn verwenden können"
(Habe NICHT formatiert)
4. Durchgeführte Schritte
4.1. Image der Festplatte mit AOMEI erstellt
4.2. Testdisk aufgerufen
Analyse
Invalid FAT boot sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
No partition is bootable
Quickscan (keine Partition gefunden!)
Ergebnis DeepScan
TestDisk Log
Thu Jan 11 18:42:56 2018
Command line: TestDisk
TestDisk 7.1-WIP, Data Recovery Utility, January 2018
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 6.4, Cygwin 2009.0
ext2fs lib: 1.43.1, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.0
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=1500301910016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=1500301910016
filewin32_getfilesize(\\.\PhysicalDrive1) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive1) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive1
filewin32_getfilesize(\\.\PhysicalDrive2) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive2) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive2
filewin32_getfilesize(\\.\PhysicalDrive3) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive3) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive3
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C
=1466908540928
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D=32212254720
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E=300066407424
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F=0
Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G=0
Warning: can't get size for \\.\G:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H=0
Warning: can't get size for \\.\H:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I=24510464
Hard disk list
Disk /dev/sda - 1500 GB / 1397 GiB - CHS 182401 255 63, sector size=512 - ST31500541AS, S/N:5XW2CVYA, FW:CC34
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63, sector size=512 - TrekStor WD3000BB-00KEA0, S/N:0000000000090003W, FW:1.05
Drive I: - 24 MB / 23 MiB - CHS 5 64 32, sector size=2048 - TSSTcorp CDDVDW SH-S223C, FW:ME02
Partition table type (auto): Intel
Disk /dev/sde - 300 GB / 279 GiB - TrekStor WD3000BB-00KEA0
Partition table type: Intel
Analyse Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
Geometry from i386 MBR: head=255 sector=63
test_FAT()
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
sector_size 13987
cluster_size 40
reserved 56198
fats 1
dir_entries 39235
sectors 19170
media A3
fat_length 38572
secs_track 53791
heads 17070
hidden 1218524296
total_sect 19017665
check_part_i386 failed for partition type 0C
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
Invalid FAT boot sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
No partition is bootable
search_part()
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
file_pread(5,2,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,1,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,2,buffer,586074112(36481/108/44)) lseek err Invalid argument
file_pread(5,14,buffer,586074114(36481/108/46)) lseek err Invalid argument
file_pread(5,3,buffer,586074128(36481/108/60)) lseek err Invalid argument
file_pread(5,3,buffer,586074175(36481/109/44)) lseek err Invalid argument
file_pread(5,8,buffer,586074191(36481/109/60)) lseek err Invalid argument
file_pread(5,11,buffer,586074238(36481/110/44)) lseek err Invalid argument
file_pread(5,2,buffer,586076160(36481/141/13)) lseek err Invalid argument
Results
interface_write()
No partition found or selected for recovery
search_part()
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
file_pread(5,2,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,1,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,2,buffer,586074112(36481/108/44)) lseek err Invalid argument
Results
interface_write()
No partition found or selected for recovery
Nach oben
4.3 Erneuter Versuch mit TestDisk - Rebuild BS
Fri Jan 12 23:46:36 2018
Command line: TestDisk
TestDisk 7.1-WIP, Data Recovery Utility, January 2018
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 6.4, Cygwin 2009.0
ext2fs lib: 1.43.1, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.0
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=1500301910016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=1500301910016
filewin32_getfilesize(\\.\PhysicalDrive1) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive1) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive1
filewin32_getfilesize(\\.\PhysicalDrive2) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive2) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive2
filewin32_getfilesize(\\.\PhysicalDrive3) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive3) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive3
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C=1466908540928
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D=32212254720
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F=0
Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G=0
Warning: can't get size for \\.\G:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H=0
Warning: can't get size for \\.\H:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I=24510464
Hard disk list
Disk /dev/sda - 1500 GB / 1397 GiB - CHS 182401 255 63, sector size=512 - ST31500541AS, S/N:5XW2CVYA, FW:CC34
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63, sector size=512 - TrekStor WD3000BB-00KEA0, S/N:0000000000090003W, FW:1.05
Drive I: - 24 MB / 23 MiB - CHS 5 64 32, sector size=2048 - TSSTcorp CDDVDW SH-S223C, FW:ME02
Partition table type (auto): Intel
Disk /dev/sde - 300 GB / 279 GiB - TrekStor WD3000BB-00KEA0
Partition table type: Intel
Interface Advanced
Geometry from i386 MBR: head=255 sector=63
test_FAT()
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
sector_size 13987
cluster_size 40
reserved 56198
fats 1
dir_entries 39235
sectors 19170
media A3
fat_length 38572
secs_track 53791
heads 17070
hidden 1218524296
total_sect 19017665
check_part_i386 failed for partition type 0C
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=40434814(0x268fc7e), pos=1617489705
file_pread(5,1094,buffer,44187165054(2750523/207/19)) lseek err Invalid argument
file_pread(5,2,buffer,44187165054(2750523/207/19)) lseek err Invalid argument
FAT: Can't read directory cluster.
Directory /ﾼﾥￋ￲u]j`.ￔﾛ
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
file_pread(5,1094,buffer,11012148933(685474/144/52)) lseek err Invalid argument
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
rebuild_FAT_BS p_fat12 0, p_fat16 0, p_fat32 1
fat_find_type(max_offset=4578714, p_fat12=0, p_fat16=0, p_fat32=1, debug=1, dump_ind=0)
No FAT found, reserved=0, fat_length=0
find_sectors_per_cluster skip_sectors=26828 (skip_offset=13735936)
Can't find cluster size
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
Boot sector Backup boot sector
0000 51b3f5ca 1c8869d7 Q.....i. a1009201 1d690d4d .....i.M
0008 2f5378a3 362886db /Sx.6(.. 33e22c5e 66a96406 3.,^f.d.
0010 014399e2 4aa3ac96 .C..J... b67975b7 228e3033 .yu.".03
0018 1fd2ae42 8834a148 ...B.4.H 8bb57df0 7571cdf3 ..}.uq..
0020 c12f2201 61567ecb ./".aV~. b4826d84 a0077686 ..m...v.
0028 a0138a56 51e19e08 ...VQ... 645c5706 4cb8b84c d\W.L..L
0030 01d233e1 5544f60c ..3.UD.. 4bea94e6 4356080f K...CV..
0038 66e6dba3 4be9442f f...K.D/ c88d47f4 0886985f ..G...._
0040 63d896f4 0cbeac8e c....... a41278f0 48db4bc7 ..x.H.K.
0048 c80fdc07 f1a64df4 ......M. 91ae6b88 da2a73ba ..k..*s.
0050 1b3216de 79824ce1 .2..y.L. 4af62982 262026c7 J.).& &.
0058 1649f629 8bd1c995 .I.).... 77417707 2e84d85c wAw....\
0060 2ea4b197 1b16ef70 .......p eb7991ea 9a938547 .y.....G
0068 cca33ecf 1b0886c4 ..>..... 441fe3f3 186a769b D....jv.
0070 3e27ba9e d792e309 >'...... 2bae1c14 fa8fc7c3 +.......
0078 4fd7f881 298e3d1b O...).=. 7a6546b2 12951f6a zeF....j
0080 0f99ffcc 759a7f8a ....u... 1a100cc0 45ed7103 ....E.q.
0088 0809a7b5 a711ea11 ........ f0f7e598 7495acc8 ....t...
0090 9f6315d9 c4330b44 .c...3.D 33a58268 735659fe 3..hsVY.
0098 51a63243 93e2ea50 Q.2C...P 1bd61d6d 8d6198f4 ...m.a..
00A0 63036426 4aad2862 c.d&J.(b a4ae82e0 ac77c41c .....w..
00A8 4c16b3aa 43d701ca L...C... f625cf03 83e21645 .%.....E
00B0 bad72d01 5116bec3 ..-.Q... 420bd8e7 63926f5e B...c.o^
00B8 8de69848 84de5dce ...H..]. 7d4cfc17 bbccce81 }L......
00C0 7cf9d505 04a02598 |.....%. 3cee1cc7 560a4ea4 <...V.N.
00C8 f0c7445a 77c728ee ..DZw.(. e87b35bc 756df642 .{5.um.B
00D0 7d1994e7 1873ac6c }....s.l 58a3328a 4f9f4f5f X.2.O.O_
00D8 b766993e d9e76f0d .f.>..o. f8853fdd 6e95104a ..?.n..J
00E0 a863cece 4036893e .c..@6.> 448c4e37 c01ac3f4 D.N7....
00E8 af1a15b5 e3b01bcb ........ 467fed5a 53fd1229 F..ZS..)
00F0 1dc389f6 78b205fe ....x... 16c6a054 3dcc7a23 ...T=.z#
00F8 0afd2ad3 ca04115d ..*....] f54dd2a8 8731562a .M...1V*
0100 dfb4f70c 6980caef ....i... 202b9ecc 6278e692 +..bx..
0108 e6a73526 407118a3 ..5&@q.. 4f135f81 3e42cf61 O._.>B.a
0110 075ece79 2f32a7ba .^.y/2.. a5a750b4 c6de5490 ..P...T.
0118 b7158559 e36bbca8 ...Y.k.. ed97b2cb 61da162d ....a..-
0120 7e875417 4c1ddd37 ~.T.L..7 895b171e 3e55e244 .[..>U.D
0128 745da2a1 7f7fdece t]...... 35529618 22adcab6 5R.."...
0130 1908d935 68c56d9c ...5h.m. 28d48fa4 a6d729f5 (.....).
0138 ce5db766 80bf316c .].f..1l 9f15ef5e a5ba723b ...^..r;
0140 177880a8 723e6302 .x..r>c. 8a6f9f76 ba8b3765 .o.v..7e
0148 1ccb642a 40628899 ..d*@b.. 55326cf0 192c3a24 U2l..,:$
0150 038ae653 e2c0d289 ...S.... 60a6c34c 73a482be `..Ls...
0158 448f108a 07c04d49 D.....MI f690b275 6c512e7e ...ulQ.~
0160 1f0a5735 ecd28fa9 ..W5.... c83f7346 83579838 .?sF.W.8
0168 2b27df7e 8cad84f3 +'.~.... fc3372bf 9d1309f9 .3r.....
0170 a31b5322 b7cfb63a ..S"...: 5b7fe074 a8385096 [..t.8P.
0178 fb61ecbd 6a060e0a .a..j... d32413e7 8a182d2b .$....-+
0180 becc2301 bff96e7d ..#...n} d7530ed0 95d794c2 .S......
0188 e08ddeec 66ef8716 ....f... 9b95571b d10e801e ..W.....
0190 5ac658a6 2791459a Z.X.'.E. 9a95853d 6bcadf4a ...=k..J
0198 8df80f7b 9b5af96b ...{.Z.k f8d43265 f36018d5 ..2e.`..
01A0 fd77f732 658974b6 .w.2e.t. be6eb250 7e1ef0b1 .n.P~...
01A8 58553e9d 8205856a XU>....j ea313404 db4be577 .14..K.w
01B0 740397ca 1d0ddf30 t......0 2f515e10 e80c6adf /Q^...j.
01B8 ec3e16e1 0c25e911 .>...%.. 6e55f550 414cdfc8 nU.PAL..
01C0 75437123 f8df1b9a uCq#.... 733d8350 8a571b66 s=.P.W.f
01C8 178b040d 520e5441 ....R.TA 1548f156 870876b9 .H.V..v.
01D0 9a1a0a90 548123b6 ....T.#. c57082bf ae4c7413 .p...Lt.
01D8 c74f28bc e1bcf47d .O(....} 270227ff e93fa5f6 '.'..?..
01E0 30b25a82 58e7184e 0.Z.X..N dac369f6 e6808220 ..i....
01E8 9680a39a 99e50ffe ........ 6ccecb52 9335029b l..R.5..
01F0 dfa209e4 4cb20342 ....L..B 5976c4e2 91cdc1dc Yv......
01F8 39e970f0 bd08d8f8 9.p..... ceea80d7 d4c1ba68 .......h
0200 53758ab4 247329ca Su..$s). b1383c0d dfd125e9 .8<...%.
0208 289d5de6 9ef18842 (.]....B 28d58efa 3bab9f64 (...;..d
0210 d6e85f78 f7020a32 .._x...2 61e530d6 6b5e933b a.0.k^.;
0218 12317147 3309c952 .1qG3..R 3b32e25f 6d212ed3 ;2._m!..
0220 55dd0703 1efc5c65 U.....\e c0e5fcdd 48a40f12 ....H...
0228 544e6f5f ce47bf04 TNo_.G.. 88b179bb a5d22267 ..y..."g
0230 a2d37ea2 a3544443 ..~..TDC b9d22e80 d8f59244 .......D
0238 bc3e0fe3 50722da8 .>..Pr-. 6736fded 0c9b5834 g6....X4
0240 5a749387 38e4e60f Zt..8... edf609dc 36bfcf75 ....6..u
0248 f6ad3941 c8ba5d3e ..9A..]> 54efcb03 dad8fc86 T.......
0250 ca41c6dc e268e8cb .A...h.. 4407682d d4cdbce4 D.h-....
0258 f330231f 8f0e8e95 .0#..... 210ab7bc 2a796205 !...*yb.
0260 567b97c7 b3fb9a7d V{.....} ca1d836f dfb5d4bd ...o....
0268 78b014ce c1cd0ab2 x....... 9ee3d3ff be862fcf ....../.
0270 ffa26e11 083d4b39 ..n..=K9 d6f46807 d32a8ef6 ..h..*..
0278 e2fa4202 5262de00 ..B.Rb.. f89bf8d3 dc9f184d .......M
0280 3779aaec 6ef013e5 7y..n... 760aecbb f367d136 v....g.6
0288 64d4fcfd 3aaa7418 d...:.t. 29016178 2cdaef12 ).ax,...
0290 6f4f680c dfddc306 oOh..... 70e0c4db 9f0c49a8 p.....I.
0298 27673be6 9a0f9eb5 'g;..... 0a46bd0c e370c4e6 .F...p..
02A0 94b131ab 3b066a17 ..1.;.j. 72a9f867 26fb6158 r..g&.aX
02A8 c0561ab2 7032c15f .V..p2._ 9040fee2 99f03865 .@....8e
02B0 32803e7c 0d4128c6 2.>|.A(. 47507a60 34401760 GPz`4@.`
02B8 22842cd8 40f5c89b ".,.@... 388b580e c68f958d 8.X.....
02C0 2be0f105 8ded92ca +....... 9301581c 639d4220 ..X.c.B
02C8 4febdc4a d698dc69 O..J...i 3a6676e8 b12d73fc :fv..-s.
02D0 99b93071 d3e754eb ..0q..T. 6787afb8 5fbe28cf g..._.(.
02D8 68e4c518 f44f1cfe h....O.. 06abe501 837af7e1 .....z..
02E0 74478f64 2d03cb3f tG.d-..? 2d920ee3 bf613248 -....a2H
02E8 2cabd178 99936b76 ,..x..kv 120e4f5d ce1037a1 ..O]..7.
02F0 1ee9e071 560e4768 ...qV.Gh 62f9b725 1f15af6d b..%...m
02F8 5a06a7b6 ddaa251f Z.....%. ab8c7ce6 7cb72aa3 ..|.|.*.
0300 fc1ddfa7 23924a67 ....#.Jg 0768ec5c 6c4c6c99 .h.\lLl.
0308 94cf0a33 c711f8a0 ...3.... 8577da98 8ff66c08 .w....l.
0310 1cecc163 45baa0d1 ...cE... 01d9ab09 9b3325db .....3%.
0318 7c6b9570 8372e0d8 |k.p.r.. 641f601c d255a573 d.`..U.s
0320 d8ba279f 2500d7a5 ..'.%... 8deb64d0 bd3e939f ..d..>..
0328 9e0e91f5 bd81afb3 ........ 35cc7fc7 c6384c5c 5....8L\
0330 9a0049e1 207605e2 ..I. v.. 5c483d21 2e3d4354 \H=!.=CT
0338 44fbc7a4 4f2b0128 D...O+.( 108ee931 fba8d6e6 ...1....
0340 132b7b59 701adaa2 .+{Yp... f96ac8fb d43d6eaf .j...=n.
0348 da75ebab d93b307b .u...;0{ db176a92 b9555b6d ..j..U[m
0350 6c25a583 91f1b96b l%.....k 2fd05618 d3cb34b7 /.V...4.
0358 af65dcff ad1bed6d .e.....m 1274f26a dfd52e66 .t.j...f
0360 2168ae74 9eddb3f5 !h.t.... c16b53a8 ff3e24bc .kS..>$.
0368 4c1e455e bcb79454 L.E^...T 61efa72a 281d34b8 a..*(.4.
0370 7630ddb8 d84b40f7 v0...K@. 2ea69726 c7790b71 ...&.y.q
0378 1f0924ed 0467efa2 ..$..g.. 6aac9b8d 669bd81a j...f...
0380 b4dcb75b 164904bc ...[.I.. 89aaca7a 78322739 ...zx2'9
0388 b0699d64 8c113df6 .i.d..=. 47cab59d 62c02504 G...b.%.
0390 8396bcd7 94dac355 .......U 59c528e3 26d4d354 Y.(.&..T
0398 08a62cbc 64b16d7e ..,.d.m~ eb520c1e d683b3e6 .R......
03A0 2c150051 a91a702b ,..Q..p+ 8bcc2029 b777284b .. ).w(K
03A8 85aa671b f324ac68 ..g..$.h fa4373e9 2cd1628c .Cs.,.b.
03B0 3e0646e2 5c74f8ec >.F.\t.. 7472aba9 b9b43dd2 tr....=.
03B8 ffb8c3e4 219edf0c ....!... 51f90afe 99ead602 Q.......
03C0 1c98c400 4a8fb8d1 ....J... c9688ad7 b1a9f92c .h.....,
03C8 25d27edb 0a62bead %.~..b.. 943b221a 8b96fb87 .;".....
03D0 3bf077ff 7837dd71 ;.w.x7.q 43056eee 696a98e8 C.n.ij..
03D8 8fb3e6b7 9ce1e09e ........ 899b5ad5 1c52a355 ..Z..R.U
03E0 95eca5e8 32049732 ....2..2 2405ab9e c1eb4486 $.....D.
03E8 9f56bf83 5811880b .V..X... c0021716 003b739f .....;s.
03F0 fc8ff8eb 313b9204 ....1;.. b4eef27a e9ddf1e7 ...z....
03F8 5fd72081 764d06fb _. .vM.. 4c8bc755 fce86ee6 L..U..n.
0400 07759d35 4bc3f088 .u.5K... ca620025 f4ef7cb7 .b.%..|.
0408 5dc8a056 7d771fe9 ]..V}w.. c496b8f1 503e0b51 ....P>.Q
0410 b07f6758 966cee45 ..gX.l.E 8486c16d 34884cd1 ...m4.L.
0418 c9549053 033ccf26 .T.S.<.& e8f10eef 08177cb1 ......|.
0420 18838ab4 256da5a3 ....%m.. 03385e42 eef65dfe .8^B..].
0428 c1501214 f8e0ce82 .P...... e62becee 680ed1e1 .+..h...
0430 c9800be8 9691bdc2 ........ 8e0cdb7f 61df9f0e ....a...
0438 8b0b24bb 1f0aef67 ..$....g b624528e 469e5ac9 .$R.F.Z.
0440 288fe3d6 53792a24 (...Sy*$ a3cd61b6 ca183647 ..a...6G
0448 1fbfa8ee b136172c .....6., 8ca15d6e 698896d7 ..]ni...
0450 6769101b aa447baf gi...D{. bb5209f3 8f448b06 .R...D..
0458 6bad3822 bc49b727 k.8".I.' 97ae6b42 603ba93a ..kB`;.:
0460 6d72ee02 6f955b80 mr..o.[. 3853a690 e0847b75 8S....{u
0468 fd9e24a3 d58bec9a ..$..... e7592748 1a687c4d .Y'H.h|M
0470 1083cfc4 85272ac0 .....'*. 9967ab4c 877ba2b8 .g.L.{..
0478 e457f6f4 512fc976 .W..Q/.v 56b6bcf5 b0f4d216 V.......
0480 06be832f b79b6866 .../..hf bf062566 09600fa2 ..%f.`..
0488 c8ebcc53 a91145e9 ...S..E. e115d6f0 50582efe ....PX..
0490 f88d731f 1d300cb0 ..s..0.. e101038c c6b835eb ......5.
0498 452b7e50 638e1bb3 E+~Pc... f74484ce da3b80ee .D...;..
04A0 d2dd8155 6684eb18 ...Uf... 8537a72e 1874e7ad .7...t..
04A8 3eae52ab 96660372 >.R..f.r d6bcc927 37ea1f07 ...'7...
04B0 b69b8b82 ee05c8fc ........ 71199c41 03f70488 q..A....
04B8 37f0954c d99ceab7 7..L.... ac4ab75d 9b0110ec .J.]....
04C0 fcd1b591 dada598b ......Y. abd34b72 a0b35d22 ..Kr..]"
04C8 2cf99505 c7824fef ,.....O. dd85dae7 794e802f ....yN./
04D0 5c5005bd 77c5bf49 \P..w..I e1a3ad25 7eaceaa8 ...%~...
04D8 171ea259 84d09438 ...Y...8 784814b6 d74e08ed xH...N..
04E0 7efc5600 9debbfdc ~.V..... 7fdab862 8a8cb068 ...b...h
04E8 a1d29cac 78c4128b ....x... ee4fea6e 951d9c5b .O.n...[
04F0 84e9f857 f5a77c79 ...W..|y 8ac34af5 b9386d06 ..J..8m.
04F8 08adbb9a 579987a0 ....W... c7d91e78 03fb0ba6 ...x....
0500 884d018d 6d9bd006 .M..m... 2e506d64 ac961d26 .Pmd...&
0508 f9466284 0ed18eaf .Fb..... 2411ca60 1a242742 $..`.$'B
0510 272d55b1 3319ca16 '-U.3... 8d38041a 4b40e0fc .8..K@..
0518 f1b2e8bc d78a224d ......"M 026089b9 93bfbea5 .`......
0520 3deba019 9d2e335d =.....3] c323347b 83185775 .#4{..Wu
0528 6f078bcf 5d48321a o...]H2. fec22cc2 48c18def ..,.H...
0530 4f81a83c a64848dc O..<.HH. a1e3379f 2a4b76b4 ..7.*Kv.
0538 681244a1 c2d365b8 h.D...e. bfb0a932 ccaf6d8c ...2..m.
0540 20e3d4fe 609d53c3 ...`.S. cd4ced49 e17a217b .L.I.z!{
0548 6d022765 f2c07989 m.'e..y. d3217564 3d552971 .!ud=U)q
0550 6acd4061 2acb9740 j.@a*..@ 59536249 7c668aa0 YSbI|f..
0558 96602767 37f7ca90 .`'g7... 2dddfa49 cf9320c2 -..I.. .
0560 3c944d1b e7f444dd <.M...D. 54c7da7a 5ebaa18b T..z^...
0568 f01bd7bf 860e671c ......g. 45221e14 67549a41 E"..gT.A
0570 1f08d503 d833d9da .....3.. 6e7ff33b a5f32d50 n..;..-P
0578 45b428ab 299efd33 E.(.)..3 fe44d211 68cc77e4 .D..h.w.
0580 ee69589b 6c37c04c .iX.l7.L eccaabef f5c02077 ...... w
0588 9c5630cd d7b98aba .V0..... 35859344 66543103 5..DfT1.
0590 41ed81e8 0a3434ae A....44. 05881603 0ff18400 ........
0598 5ed8c8c1 9dd09aa6 ^....... a9856f01 e471ccaf ..o..q..
05A0 ec6d581a 245d0798 .mX.$].. dc8918f4 b7b47602 ......v.
05A8 3fccde5a 01420f0f ?..Z.B.. edefc182 a7364de1 .....6M.
05B0 8b58bad3 fb5b0316 .X...[.. 9e30358b 660f703f .05.f.p?
05B8 35234528 7848e132 5#E(xH.2 2469c453 6832e524 $i.Sh2.$
05C0 973abaad a27adf07 .:...z.. 2fa4581a d95183c8 /.X..Q..
05C8 6bcc05e7 a08e0a97 k....... d593fb32 3cda4948 ...2<.IH
05D0 8c5cccac 035c46c2 .\...\F. deef4a91 d5b8d697 ..J.....
05D8 aadffb70 eb106048 ...p..`H b8ff2ab7 ed022c5a ..*...,Z
05E0 b3e5cff0 9a7d7ded .....}}. 246381b6 55b2b206 $c..U...
05E8 aac3fe29 d3c322f9 ...)..". 2069a3f5 0a06e051 i.....Q
05F0 c0d2d262 049ee312 ...b.... db87e316 3bbc0d9f ....;...
05F8 5391dee7 d9f865f4 S.....e. 98a1255c eba12962 ..%\..)b
FAT32
sector_size 13987 26206
cluster_size 40 169
reserved 56198 1636
fats 1 182
dir_entries 39235 30073
sectors 19170 8887
media A3 8E
fat_length 38572 13104
secs_track 53791 46475
heads 17070 61565
hidden 1218524296 4090327413
total_sect 19017665 2221769396
fat32_length 3414054497 2255882144
flags 13A0 5C64
version 138.86 87.6
root_cluster 144630097 1287174220
info_sector 53761 59979
backup_boot 57651 59028
free_count 2210354847 370606784
next_free 193466712 2675129088
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
an meinem Rechner funktioniert eine externe Festplatte nicht mehr
und ich wäre für Hinweise, wie ich weiter verfahren soll, sehr dankbar.Untenstehend die hoffentlich sachdienlichen Informationenen.
Da auch mein letzter Versuch (Rebuild BS, siehe unten Ziff. 4.3) fehlgeschlagen ist, frage ich mich, ob überhaupt noch Aussicht besteht, die Daten retten zu können. Oder kann ich die jetzt abschreiben?
Da ich mich in diesem Bereich überhaupt nicht auskenne, wäre ich für Eure Hilfe hier sehr dankbar.
Vielen Dank im Voraus ,
Maverick2018
----
1. System
AMD Athlon(tm) II X4 640 mit 3.00 GHz
RAM 4,00 GB
OS: Windows 10 Home 64-bit, Version 1709
2. Externe Festplatte
Trekstor DataStation maxi.mu
279,46 GB

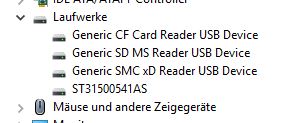

Datenträgerverwaltung:
3. Windows Fehlermeldung
"Sie müssen den Datenträger E:/ formatieren, bevor sie ihn verwenden können"
(Habe NICHT formatiert)
4. Durchgeführte Schritte
4.1. Image der Festplatte mit AOMEI erstellt
4.2. Testdisk aufgerufen
Analyse
Invalid FAT boot sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
No partition is bootable
Quickscan (keine Partition gefunden!)
Ergebnis DeepScan
TestDisk Log
Thu Jan 11 18:42:56 2018
Command line: TestDisk
TestDisk 7.1-WIP, Data Recovery Utility, January 2018
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 6.4, Cygwin 2009.0
ext2fs lib: 1.43.1, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.0
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=1500301910016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=1500301910016
filewin32_getfilesize(\\.\PhysicalDrive1) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive1) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive1
filewin32_getfilesize(\\.\PhysicalDrive2) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive2) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive2
filewin32_getfilesize(\\.\PhysicalDrive3) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive3) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive3
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C
=1466908540928disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D
=32212254720disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\E
=300066407424disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F
=0Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G
=0Warning: can't get size for \\.\G:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H
=0Warning: can't get size for \\.\H:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I
=24510464Hard disk list
Disk /dev/sda - 1500 GB / 1397 GiB - CHS 182401 255 63, sector size=512 - ST31500541AS, S/N:5XW2CVYA, FW:CC34
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63, sector size=512 - TrekStor WD3000BB-00KEA0, S/N:0000000000090003W, FW:1.05
Drive I: - 24 MB / 23 MiB - CHS 5 64 32, sector size=2048 - TSSTcorp CDDVDW SH-S223C, FW:ME02
Partition table type (auto): Intel
Disk /dev/sde - 300 GB / 279 GiB - TrekStor WD3000BB-00KEA0
Partition table type: Intel
Analyse Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
Geometry from i386 MBR: head=255 sector=63
test_FAT()
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
sector_size 13987
cluster_size 40
reserved 56198
fats 1
dir_entries 39235
sectors 19170
media A3
fat_length 38572
secs_track 53791
heads 17070
hidden 1218524296
total_sect 19017665
check_part_i386 failed for partition type 0C
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
Current partition structure:
Invalid FAT boot sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
No partition is bootable
search_part()
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
file_pread(5,2,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,1,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,2,buffer,586074112(36481/108/44)) lseek err Invalid argument
file_pread(5,14,buffer,586074114(36481/108/46)) lseek err Invalid argument
file_pread(5,3,buffer,586074128(36481/108/60)) lseek err Invalid argument
file_pread(5,3,buffer,586074175(36481/109/44)) lseek err Invalid argument
file_pread(5,8,buffer,586074191(36481/109/60)) lseek err Invalid argument
file_pread(5,11,buffer,586074238(36481/110/44)) lseek err Invalid argument
file_pread(5,2,buffer,586076160(36481/141/13)) lseek err Invalid argument
Results
interface_write()
No partition found or selected for recovery
search_part()
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63
file_pread(5,2,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,1,buffer,586074111(36481/108/43)) lseek err Invalid argument
file_pread(5,2,buffer,586074112(36481/108/44)) lseek err Invalid argument
Results
interface_write()
No partition found or selected for recovery
Nach oben
4.3 Erneuter Versuch mit TestDisk - Rebuild BS
Fri Jan 12 23:46:36 2018
Command line: TestDisk
TestDisk 7.1-WIP, Data Recovery Utility, January 2018
Christophe GRENIER <grenier@cgsecurity.org>
https://www.cgsecurity.org
OS: Windows 8 (9200)
Compiler: GCC 6.4, Cygwin 2009.0
ext2fs lib: 1.43.1, ntfs lib: 10:0:0, reiserfs lib: none, ewf lib: 20140608, curses lib: ncurses 6.0
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sda)=1500301910016
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(/dev/sde)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive0)=1500301910016
filewin32_getfilesize(\\.\PhysicalDrive1) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive1) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive1
filewin32_getfilesize(\\.\PhysicalDrive2) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive2) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive2
filewin32_getfilesize(\\.\PhysicalDrive3) GetFileSize err Unzulässige Funktion.
filewin32_setfilepointer(\\.\PhysicalDrive3) SetFilePointer err Unzulässige Funktion.
Warning: can't get size for \\.\PhysicalDrive3
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\PhysicalDrive4)=300069052416
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\C
=1466908540928disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\D
=32212254720disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\F
=0Warning: can't get size for \\.\F:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\G
=0Warning: can't get size for \\.\G:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\H
=0Warning: can't get size for \\.\H:
disk_get_size_win32 IOCTL_DISK_GET_LENGTH_INFO(\\.\I
=24510464Hard disk list
Disk /dev/sda - 1500 GB / 1397 GiB - CHS 182401 255 63, sector size=512 - ST31500541AS, S/N:5XW2CVYA, FW:CC34
Disk /dev/sde - 300 GB / 279 GiB - CHS 36481 255 63, sector size=512 - TrekStor WD3000BB-00KEA0, S/N:0000000000090003W, FW:1.05
Drive I: - 24 MB / 23 MiB - CHS 5 64 32, sector size=2048 - TSSTcorp CDDVDW SH-S223C, FW:ME02
Partition table type (auto): Intel
Disk /dev/sde - 300 GB / 279 GiB - TrekStor WD3000BB-00KEA0
Partition table type: Intel
Interface Advanced
Geometry from i386 MBR: head=255 sector=63
test_FAT()
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
sector_size 13987
cluster_size 40
reserved 56198
fats 1
dir_entries 39235
sectors 19170
media A3
fat_length 38572
secs_track 53791
heads 17070
hidden 1218524296
total_sect 19017665
check_part_i386 failed for partition type 0C
get_geometry_from_list_part_aux head=255 nbr=2
get_geometry_from_list_part_aux head=8 nbr=1
get_geometry_from_list_part_aux head=16 nbr=1
get_geometry_from_list_part_aux head=32 nbr=1
get_geometry_from_list_part_aux head=64 nbr=1
get_geometry_from_list_part_aux head=128 nbr=1
get_geometry_from_list_part_aux head=240 nbr=1
get_geometry_from_list_part_aux head=255 nbr=2
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=40434814(0x268fc7e), pos=1617489705
file_pread(5,1094,buffer,44187165054(2750523/207/19)) lseek err Invalid argument
file_pread(5,2,buffer,44187165054(2750523/207/19)) lseek err Invalid argument
FAT: Can't read directory cluster.
Directory /ﾼﾥￋ￲u]j`.ￔﾛ
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
file_pread(5,1094,buffer,11012148933(685474/144/52)) lseek err Invalid argument
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat.c get_next_cluster unknown fat type
FAT: Directory entry is marked as free.
FAT: cluster=117449362(0x7002292), pos=403104329
FAT: Can't read directory cluster.
Directory /5ﾥ￉ￓﾟ4￪￤.((&
Directory /
40434814 dr-xr-xr-x 0 0 2604237755 25-Jan-2028 03:39 ﾼﾥￋ￲u]j`.ￔﾛ
46991286 -rwxr-xr-x 0 0 1142798684 30-May-2022 09:58 ,￘ﾎD5�ￇï¾.4ﾚl
117449362 drwxr-xr-x 0 0 3503145828 19-Dec-2023 09:47 5ﾥ￉ￓﾟ4￪￤.((&
215561045 -rwxr-xr-x 0 0 2135446328 13-Dec-1912 17:51 Fﾅ#ﾌﾣￕ￷.c
93650974 -r-xr-xr-x 0 0 3827595936 1-Sep-1914 19:33
ﾳﾊk>￪.Nﾓx
50830073 -r-xr-xr-x 0 0 4094026448 22-Oct-1946 22:11 1=ﾪ:ï¿±ï¿¬ï¿ .ï¿¿ï¿®)
171280812 -rwxr-xr-x 0 0 1180159104 9-Feb-1906 08:51 $?ï¾ï¾¼a￡ﾉ.ￂﾞ.
262510154 -r-xr-xr-x 0 0 2995928742 1-Nov-1911 18:12 ï¿°ï¿”ï¿ï¾“ï¿».ciï¿£
252381564 drwxr-xr-x 0 0 4153946931 26-Jun-1931 01:23 :ï¾~{<ï¾¾
ￖ.ﾖ￶h
150873176 -rwxr-xr-x 0 0 4043642711 3-Jun-1905 23:55 ONhﾡ?q*￪.tj
53479499 dr-xr-xr-x 0 0 1060152102 18-Feb-2002 08:36 Kupﾊ%ï¾¥ï¿*w._
172400953 -rwxr-xr-x 0 0 2626349994 13-Jan-1958 15:53 !ﾼ0ﾕ*8sﾚ.#&g
16928993 -rwxr-xr-x 0 0 155750896 8-May-2024 09:46 ï¿´tp!`ï¾.#ﾂ
247613 -r-xr-xr-x 0 0 2666707678 6-Jan-1988 01:25 Mï¾†ï¾’ï¿¶ï¿ºï¿ 3.ﾜw
43946633 -rwxr-xr-x 0 0 1549707152 8-Mar-1987 04:19 ﾗﾤï¿ï¾Ÿï¿—￪9.hﾄ
256233758 drwxr-xr-x 0 0 2036734510 7-Dec-1950 13:30 IABￕﾡﾦ.ﾇ.{ﾡ*
152025745 -rwxr-xr-x 0 0 4133037469 7-Jan-2007 06:36 )ﾕ$ﾟï¿kï¿Œ.,bï¿£
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
rebuild_FAT_BS p_fat12 0, p_fat16 0, p_fat32 1
fat_find_type(max_offset=4578714, p_fat12=0, p_fat16=0, p_fat32=1, debug=1, dump_ind=0)
No FAT found, reserved=0, fat_length=0
find_sectors_per_cluster skip_sectors=26828 (skip_offset=13735936)
Can't find cluster size
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
Boot sector Backup boot sector
0000 51b3f5ca 1c8869d7 Q.....i. a1009201 1d690d4d .....i.M
0008 2f5378a3 362886db /Sx.6(.. 33e22c5e 66a96406 3.,^f.d.
0010 014399e2 4aa3ac96 .C..J... b67975b7 228e3033 .yu.".03
0018 1fd2ae42 8834a148 ...B.4.H 8bb57df0 7571cdf3 ..}.uq..
0020 c12f2201 61567ecb ./".aV~. b4826d84 a0077686 ..m...v.
0028 a0138a56 51e19e08 ...VQ... 645c5706 4cb8b84c d\W.L..L
0030 01d233e1 5544f60c ..3.UD.. 4bea94e6 4356080f K...CV..
0038 66e6dba3 4be9442f f...K.D/ c88d47f4 0886985f ..G...._
0040 63d896f4 0cbeac8e c....... a41278f0 48db4bc7 ..x.H.K.
0048 c80fdc07 f1a64df4 ......M. 91ae6b88 da2a73ba ..k..*s.
0050 1b3216de 79824ce1 .2..y.L. 4af62982 262026c7 J.).& &.
0058 1649f629 8bd1c995 .I.).... 77417707 2e84d85c wAw....\
0060 2ea4b197 1b16ef70 .......p eb7991ea 9a938547 .y.....G
0068 cca33ecf 1b0886c4 ..>..... 441fe3f3 186a769b D....jv.
0070 3e27ba9e d792e309 >'...... 2bae1c14 fa8fc7c3 +.......
0078 4fd7f881 298e3d1b O...).=. 7a6546b2 12951f6a zeF....j
0080 0f99ffcc 759a7f8a ....u... 1a100cc0 45ed7103 ....E.q.
0088 0809a7b5 a711ea11 ........ f0f7e598 7495acc8 ....t...
0090 9f6315d9 c4330b44 .c...3.D 33a58268 735659fe 3..hsVY.
0098 51a63243 93e2ea50 Q.2C...P 1bd61d6d 8d6198f4 ...m.a..
00A0 63036426 4aad2862 c.d&J.(b a4ae82e0 ac77c41c .....w..
00A8 4c16b3aa 43d701ca L...C... f625cf03 83e21645 .%.....E
00B0 bad72d01 5116bec3 ..-.Q... 420bd8e7 63926f5e B...c.o^
00B8 8de69848 84de5dce ...H..]. 7d4cfc17 bbccce81 }L......
00C0 7cf9d505 04a02598 |.....%. 3cee1cc7 560a4ea4 <...V.N.
00C8 f0c7445a 77c728ee ..DZw.(. e87b35bc 756df642 .{5.um.B
00D0 7d1994e7 1873ac6c }....s.l 58a3328a 4f9f4f5f X.2.O.O_
00D8 b766993e d9e76f0d .f.>..o. f8853fdd 6e95104a ..?.n..J
00E0 a863cece 4036893e .c..@6.> 448c4e37 c01ac3f4 D.N7....
00E8 af1a15b5 e3b01bcb ........ 467fed5a 53fd1229 F..ZS..)
00F0 1dc389f6 78b205fe ....x... 16c6a054 3dcc7a23 ...T=.z#
00F8 0afd2ad3 ca04115d ..*....] f54dd2a8 8731562a .M...1V*
0100 dfb4f70c 6980caef ....i... 202b9ecc 6278e692 +..bx..
0108 e6a73526 407118a3 ..5&@q.. 4f135f81 3e42cf61 O._.>B.a
0110 075ece79 2f32a7ba .^.y/2.. a5a750b4 c6de5490 ..P...T.
0118 b7158559 e36bbca8 ...Y.k.. ed97b2cb 61da162d ....a..-
0120 7e875417 4c1ddd37 ~.T.L..7 895b171e 3e55e244 .[..>U.D
0128 745da2a1 7f7fdece t]...... 35529618 22adcab6 5R.."...
0130 1908d935 68c56d9c ...5h.m. 28d48fa4 a6d729f5 (.....).
0138 ce5db766 80bf316c .].f..1l 9f15ef5e a5ba723b ...^..r;
0140 177880a8 723e6302 .x..r>c. 8a6f9f76 ba8b3765 .o.v..7e
0148 1ccb642a 40628899 ..d*@b.. 55326cf0 192c3a24 U2l..,:$
0150 038ae653 e2c0d289 ...S.... 60a6c34c 73a482be `..Ls...
0158 448f108a 07c04d49 D.....MI f690b275 6c512e7e ...ulQ.~
0160 1f0a5735 ecd28fa9 ..W5.... c83f7346 83579838 .?sF.W.8
0168 2b27df7e 8cad84f3 +'.~.... fc3372bf 9d1309f9 .3r.....
0170 a31b5322 b7cfb63a ..S"...: 5b7fe074 a8385096 [..t.8P.
0178 fb61ecbd 6a060e0a .a..j... d32413e7 8a182d2b .$....-+
0180 becc2301 bff96e7d ..#...n} d7530ed0 95d794c2 .S......
0188 e08ddeec 66ef8716 ....f... 9b95571b d10e801e ..W.....
0190 5ac658a6 2791459a Z.X.'.E. 9a95853d 6bcadf4a ...=k..J
0198 8df80f7b 9b5af96b ...{.Z.k f8d43265 f36018d5 ..2e.`..
01A0 fd77f732 658974b6 .w.2e.t. be6eb250 7e1ef0b1 .n.P~...
01A8 58553e9d 8205856a XU>....j ea313404 db4be577 .14..K.w
01B0 740397ca 1d0ddf30 t......0 2f515e10 e80c6adf /Q^...j.
01B8 ec3e16e1 0c25e911 .>...%.. 6e55f550 414cdfc8 nU.PAL..
01C0 75437123 f8df1b9a uCq#.... 733d8350 8a571b66 s=.P.W.f
01C8 178b040d 520e5441 ....R.TA 1548f156 870876b9 .H.V..v.
01D0 9a1a0a90 548123b6 ....T.#. c57082bf ae4c7413 .p...Lt.
01D8 c74f28bc e1bcf47d .O(....} 270227ff e93fa5f6 '.'..?..
01E0 30b25a82 58e7184e 0.Z.X..N dac369f6 e6808220 ..i....
01E8 9680a39a 99e50ffe ........ 6ccecb52 9335029b l..R.5..
01F0 dfa209e4 4cb20342 ....L..B 5976c4e2 91cdc1dc Yv......
01F8 39e970f0 bd08d8f8 9.p..... ceea80d7 d4c1ba68 .......h
0200 53758ab4 247329ca Su..$s). b1383c0d dfd125e9 .8<...%.
0208 289d5de6 9ef18842 (.]....B 28d58efa 3bab9f64 (...;..d
0210 d6e85f78 f7020a32 .._x...2 61e530d6 6b5e933b a.0.k^.;
0218 12317147 3309c952 .1qG3..R 3b32e25f 6d212ed3 ;2._m!..
0220 55dd0703 1efc5c65 U.....\e c0e5fcdd 48a40f12 ....H...
0228 544e6f5f ce47bf04 TNo_.G.. 88b179bb a5d22267 ..y..."g
0230 a2d37ea2 a3544443 ..~..TDC b9d22e80 d8f59244 .......D
0238 bc3e0fe3 50722da8 .>..Pr-. 6736fded 0c9b5834 g6....X4
0240 5a749387 38e4e60f Zt..8... edf609dc 36bfcf75 ....6..u
0248 f6ad3941 c8ba5d3e ..9A..]> 54efcb03 dad8fc86 T.......
0250 ca41c6dc e268e8cb .A...h.. 4407682d d4cdbce4 D.h-....
0258 f330231f 8f0e8e95 .0#..... 210ab7bc 2a796205 !...*yb.
0260 567b97c7 b3fb9a7d V{.....} ca1d836f dfb5d4bd ...o....
0268 78b014ce c1cd0ab2 x....... 9ee3d3ff be862fcf ....../.
0270 ffa26e11 083d4b39 ..n..=K9 d6f46807 d32a8ef6 ..h..*..
0278 e2fa4202 5262de00 ..B.Rb.. f89bf8d3 dc9f184d .......M
0280 3779aaec 6ef013e5 7y..n... 760aecbb f367d136 v....g.6
0288 64d4fcfd 3aaa7418 d...:.t. 29016178 2cdaef12 ).ax,...
0290 6f4f680c dfddc306 oOh..... 70e0c4db 9f0c49a8 p.....I.
0298 27673be6 9a0f9eb5 'g;..... 0a46bd0c e370c4e6 .F...p..
02A0 94b131ab 3b066a17 ..1.;.j. 72a9f867 26fb6158 r..g&.aX
02A8 c0561ab2 7032c15f .V..p2._ 9040fee2 99f03865 .@....8e
02B0 32803e7c 0d4128c6 2.>|.A(. 47507a60 34401760 GPz`4@.`
02B8 22842cd8 40f5c89b ".,.@... 388b580e c68f958d 8.X.....
02C0 2be0f105 8ded92ca +....... 9301581c 639d4220 ..X.c.B
02C8 4febdc4a d698dc69 O..J...i 3a6676e8 b12d73fc :fv..-s.
02D0 99b93071 d3e754eb ..0q..T. 6787afb8 5fbe28cf g..._.(.
02D8 68e4c518 f44f1cfe h....O.. 06abe501 837af7e1 .....z..
02E0 74478f64 2d03cb3f tG.d-..? 2d920ee3 bf613248 -....a2H
02E8 2cabd178 99936b76 ,..x..kv 120e4f5d ce1037a1 ..O]..7.
02F0 1ee9e071 560e4768 ...qV.Gh 62f9b725 1f15af6d b..%...m
02F8 5a06a7b6 ddaa251f Z.....%. ab8c7ce6 7cb72aa3 ..|.|.*.
0300 fc1ddfa7 23924a67 ....#.Jg 0768ec5c 6c4c6c99 .h.\lLl.
0308 94cf0a33 c711f8a0 ...3.... 8577da98 8ff66c08 .w....l.
0310 1cecc163 45baa0d1 ...cE... 01d9ab09 9b3325db .....3%.
0318 7c6b9570 8372e0d8 |k.p.r.. 641f601c d255a573 d.`..U.s
0320 d8ba279f 2500d7a5 ..'.%... 8deb64d0 bd3e939f ..d..>..
0328 9e0e91f5 bd81afb3 ........ 35cc7fc7 c6384c5c 5....8L\
0330 9a0049e1 207605e2 ..I. v.. 5c483d21 2e3d4354 \H=!.=CT
0338 44fbc7a4 4f2b0128 D...O+.( 108ee931 fba8d6e6 ...1....
0340 132b7b59 701adaa2 .+{Yp... f96ac8fb d43d6eaf .j...=n.
0348 da75ebab d93b307b .u...;0{ db176a92 b9555b6d ..j..U[m
0350 6c25a583 91f1b96b l%.....k 2fd05618 d3cb34b7 /.V...4.
0358 af65dcff ad1bed6d .e.....m 1274f26a dfd52e66 .t.j...f
0360 2168ae74 9eddb3f5 !h.t.... c16b53a8 ff3e24bc .kS..>$.
0368 4c1e455e bcb79454 L.E^...T 61efa72a 281d34b8 a..*(.4.
0370 7630ddb8 d84b40f7 v0...K@. 2ea69726 c7790b71 ...&.y.q
0378 1f0924ed 0467efa2 ..$..g.. 6aac9b8d 669bd81a j...f...
0380 b4dcb75b 164904bc ...[.I.. 89aaca7a 78322739 ...zx2'9
0388 b0699d64 8c113df6 .i.d..=. 47cab59d 62c02504 G...b.%.
0390 8396bcd7 94dac355 .......U 59c528e3 26d4d354 Y.(.&..T
0398 08a62cbc 64b16d7e ..,.d.m~ eb520c1e d683b3e6 .R......
03A0 2c150051 a91a702b ,..Q..p+ 8bcc2029 b777284b .. ).w(K
03A8 85aa671b f324ac68 ..g..$.h fa4373e9 2cd1628c .Cs.,.b.
03B0 3e0646e2 5c74f8ec >.F.\t.. 7472aba9 b9b43dd2 tr....=.
03B8 ffb8c3e4 219edf0c ....!... 51f90afe 99ead602 Q.......
03C0 1c98c400 4a8fb8d1 ....J... c9688ad7 b1a9f92c .h.....,
03C8 25d27edb 0a62bead %.~..b.. 943b221a 8b96fb87 .;".....
03D0 3bf077ff 7837dd71 ;.w.x7.q 43056eee 696a98e8 C.n.ij..
03D8 8fb3e6b7 9ce1e09e ........ 899b5ad5 1c52a355 ..Z..R.U
03E0 95eca5e8 32049732 ....2..2 2405ab9e c1eb4486 $.....D.
03E8 9f56bf83 5811880b .V..X... c0021716 003b739f .....;s.
03F0 fc8ff8eb 313b9204 ....1;.. b4eef27a e9ddf1e7 ...z....
03F8 5fd72081 764d06fb _. .vM.. 4c8bc755 fce86ee6 L..U..n.
0400 07759d35 4bc3f088 .u.5K... ca620025 f4ef7cb7 .b.%..|.
0408 5dc8a056 7d771fe9 ]..V}w.. c496b8f1 503e0b51 ....P>.Q
0410 b07f6758 966cee45 ..gX.l.E 8486c16d 34884cd1 ...m4.L.
0418 c9549053 033ccf26 .T.S.<.& e8f10eef 08177cb1 ......|.
0420 18838ab4 256da5a3 ....%m.. 03385e42 eef65dfe .8^B..].
0428 c1501214 f8e0ce82 .P...... e62becee 680ed1e1 .+..h...
0430 c9800be8 9691bdc2 ........ 8e0cdb7f 61df9f0e ....a...
0438 8b0b24bb 1f0aef67 ..$....g b624528e 469e5ac9 .$R.F.Z.
0440 288fe3d6 53792a24 (...Sy*$ a3cd61b6 ca183647 ..a...6G
0448 1fbfa8ee b136172c .....6., 8ca15d6e 698896d7 ..]ni...
0450 6769101b aa447baf gi...D{. bb5209f3 8f448b06 .R...D..
0458 6bad3822 bc49b727 k.8".I.' 97ae6b42 603ba93a ..kB`;.:
0460 6d72ee02 6f955b80 mr..o.[. 3853a690 e0847b75 8S....{u
0468 fd9e24a3 d58bec9a ..$..... e7592748 1a687c4d .Y'H.h|M
0470 1083cfc4 85272ac0 .....'*. 9967ab4c 877ba2b8 .g.L.{..
0478 e457f6f4 512fc976 .W..Q/.v 56b6bcf5 b0f4d216 V.......
0480 06be832f b79b6866 .../..hf bf062566 09600fa2 ..%f.`..
0488 c8ebcc53 a91145e9 ...S..E. e115d6f0 50582efe ....PX..
0490 f88d731f 1d300cb0 ..s..0.. e101038c c6b835eb ......5.
0498 452b7e50 638e1bb3 E+~Pc... f74484ce da3b80ee .D...;..
04A0 d2dd8155 6684eb18 ...Uf... 8537a72e 1874e7ad .7...t..
04A8 3eae52ab 96660372 >.R..f.r d6bcc927 37ea1f07 ...'7...
04B0 b69b8b82 ee05c8fc ........ 71199c41 03f70488 q..A....
04B8 37f0954c d99ceab7 7..L.... ac4ab75d 9b0110ec .J.]....
04C0 fcd1b591 dada598b ......Y. abd34b72 a0b35d22 ..Kr..]"
04C8 2cf99505 c7824fef ,.....O. dd85dae7 794e802f ....yN./
04D0 5c5005bd 77c5bf49 \P..w..I e1a3ad25 7eaceaa8 ...%~...
04D8 171ea259 84d09438 ...Y...8 784814b6 d74e08ed xH...N..
04E0 7efc5600 9debbfdc ~.V..... 7fdab862 8a8cb068 ...b...h
04E8 a1d29cac 78c4128b ....x... ee4fea6e 951d9c5b .O.n...[
04F0 84e9f857 f5a77c79 ...W..|y 8ac34af5 b9386d06 ..J..8m.
04F8 08adbb9a 579987a0 ....W... c7d91e78 03fb0ba6 ...x....
0500 884d018d 6d9bd006 .M..m... 2e506d64 ac961d26 .Pmd...&
0508 f9466284 0ed18eaf .Fb..... 2411ca60 1a242742 $..`.$'B
0510 272d55b1 3319ca16 '-U.3... 8d38041a 4b40e0fc .8..K@..
0518 f1b2e8bc d78a224d ......"M 026089b9 93bfbea5 .`......
0520 3deba019 9d2e335d =.....3] c323347b 83185775 .#4{..Wu
0528 6f078bcf 5d48321a o...]H2. fec22cc2 48c18def ..,.H...
0530 4f81a83c a64848dc O..<.HH. a1e3379f 2a4b76b4 ..7.*Kv.
0538 681244a1 c2d365b8 h.D...e. bfb0a932 ccaf6d8c ...2..m.
0540 20e3d4fe 609d53c3 ...`.S. cd4ced49 e17a217b .L.I.z!{
0548 6d022765 f2c07989 m.'e..y. d3217564 3d552971 .!ud=U)q
0550 6acd4061 2acb9740 j.@a*..@ 59536249 7c668aa0 YSbI|f..
0558 96602767 37f7ca90 .`'g7... 2dddfa49 cf9320c2 -..I.. .
0560 3c944d1b e7f444dd <.M...D. 54c7da7a 5ebaa18b T..z^...
0568 f01bd7bf 860e671c ......g. 45221e14 67549a41 E"..gT.A
0570 1f08d503 d833d9da .....3.. 6e7ff33b a5f32d50 n..;..-P
0578 45b428ab 299efd33 E.(.)..3 fe44d211 68cc77e4 .D..h.w.
0580 ee69589b 6c37c04c .iX.l7.L eccaabef f5c02077 ...... w
0588 9c5630cd d7b98aba .V0..... 35859344 66543103 5..DfT1.
0590 41ed81e8 0a3434ae A....44. 05881603 0ff18400 ........
0598 5ed8c8c1 9dd09aa6 ^....... a9856f01 e471ccaf ..o..q..
05A0 ec6d581a 245d0798 .mX.$].. dc8918f4 b7b47602 ......v.
05A8 3fccde5a 01420f0f ?..Z.B.. edefc182 a7364de1 .....6M.
05B0 8b58bad3 fb5b0316 .X...[.. 9e30358b 660f703f .05.f.p?
05B8 35234528 7848e132 5#E(xH.2 2469c453 6832e524 $i.Sh2.$
05C0 973abaad a27adf07 .:...z.. 2fa4581a d95183c8 /.X..Q..
05C8 6bcc05e7 a08e0a97 k....... d593fb32 3cda4948 ...2<.IH
05D0 8c5cccac 035c46c2 .\...\F. deef4a91 d5b8d697 ..J.....
05D8 aadffb70 eb106048 ...p..`H b8ff2ab7 ed022c5a ..*...,Z
05E0 b3e5cff0 9a7d7ded .....}}. 246381b6 55b2b206 $c..U...
05E8 aac3fe29 d3c322f9 ...)..". 2069a3f5 0a06e051 i.....Q
05F0 c0d2d262 049ee312 ...b.... db87e316 3bbc0d9f ....;...
05F8 5391dee7 d9f865f4 S.....e. 98a1255c eba12962 ..%\..)b
FAT32
sector_size 13987 26206
cluster_size 40 169
reserved 56198 1636
fats 1 182
dir_entries 39235 30073
sectors 19170 8887
media A3 8E
fat_length 38572 13104
secs_track 53791 46475
heads 17070 61565
hidden 1218524296 4090327413
total_sect 19017665 2221769396
fat32_length 3414054497 2255882144
flags 13A0 5C64
version 138.86 87.6
root_cluster 144630097 1287174220
info_sector 53761 59979
backup_boot 57651 59028
free_count 2210354847 370606784
next_free 193466712 2675129088
fat32_boot_sector
1 P FAT32 LBA 0 1 1 36480 254 63 586067202
Boot sector
Bad
Backup boot sector
Bad
First sectors (boot code and partition information) are not identical.
Second sectors (cluster information) are not identical.
Third sectors (second part of boot code) are not identical.
A valid FAT Boot sector must be present in order to access
any data; even if the partition is not bootable.
