Guten Abend,
ich habe ein Problem mit der HDD in einem Netbook.
Fehlerbeschreibung:
- Win 7 wollte vom Netbook nicht mehr starten (schwarzer Bildschirm)
- Ich wollte Win 7 neu installieren, aber ohne Erfolg. Beim Formatieren der HDD meckerte Win 7 immer -> Fehler beim Formatieren
Ich habe also mal mit Ultimate Boot CD die HDD per Parted Magic getestet.
Die HDD konnte ich hier ohne Probleme neu formatieren. Mit Disc Health (Perform Test) werden mir aber Fehler angezeigt.
Ist die HDD komplett hin?
Eine erneute Win 7 Installation habe ich noch nicht wieder getestet.
Hier mal eine Zusammenfassung vom Test:

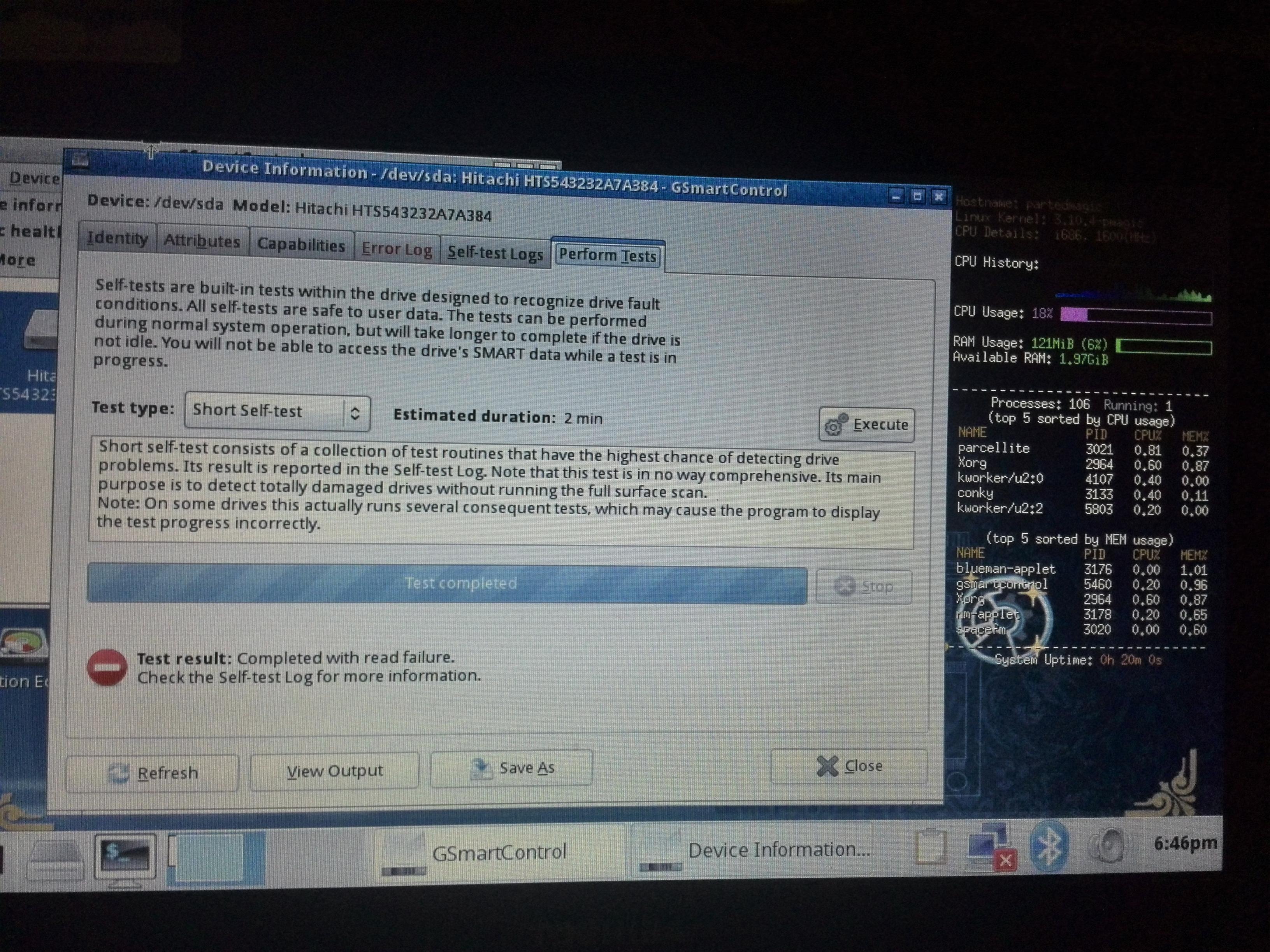

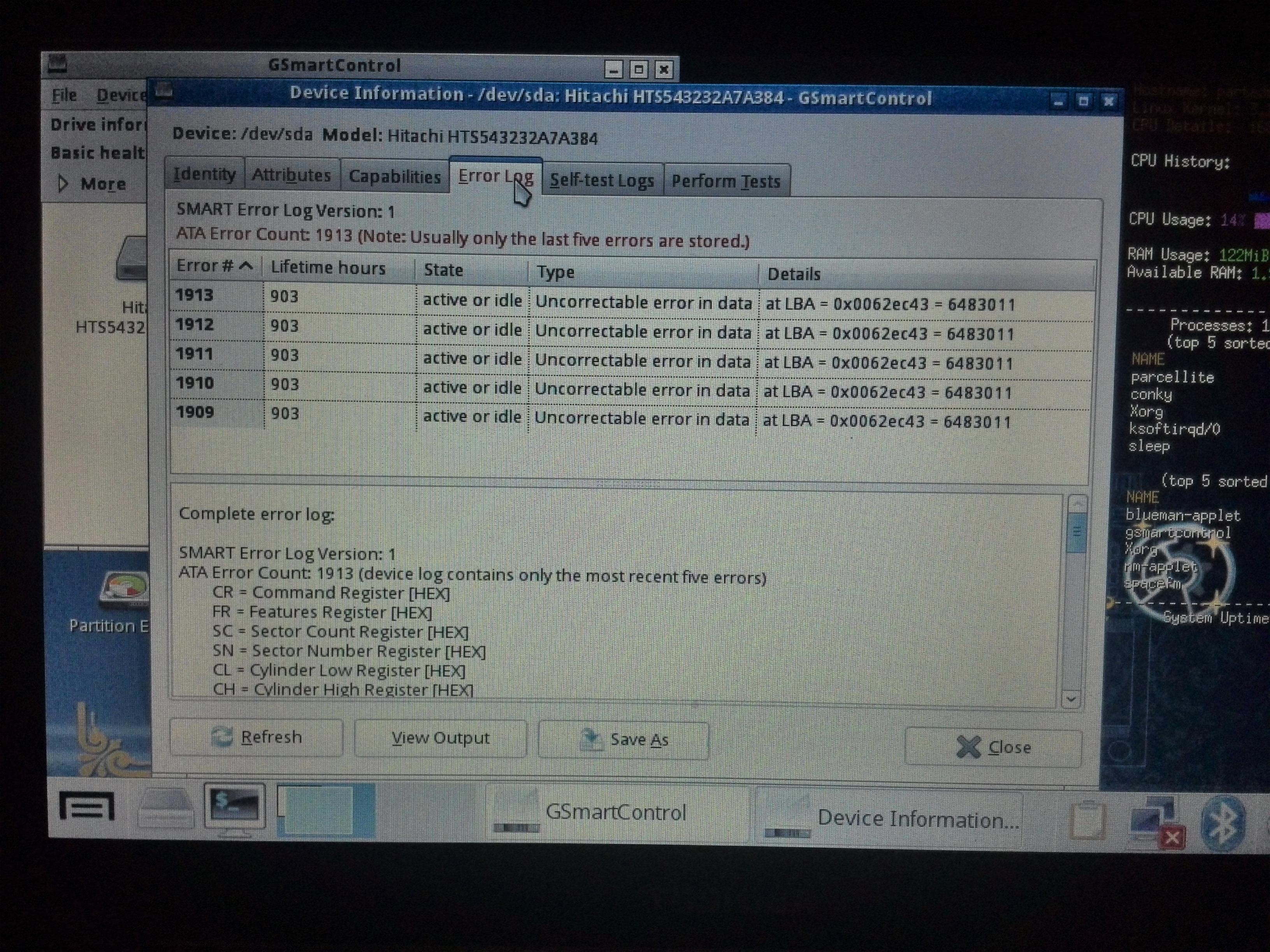

Hier mal noch Bilder:
Gruß Marker
ich habe ein Problem mit der HDD in einem Netbook.
Fehlerbeschreibung:
- Win 7 wollte vom Netbook nicht mehr starten (schwarzer Bildschirm)
- Ich wollte Win 7 neu installieren, aber ohne Erfolg. Beim Formatieren der HDD meckerte Win 7 immer -> Fehler beim Formatieren
Ich habe also mal mit Ultimate Boot CD die HDD per Parted Magic getestet.
Die HDD konnte ich hier ohne Probleme neu formatieren. Mit Disc Health (Perform Test) werden mir aber Fehler angezeigt.
Ist die HDD komplett hin?
Eine erneute Win 7 Installation habe ich noch nicht wieder getestet.
Hier mal eine Zusammenfassung vom Test:
Code:
smartctl 5.43 2012-06-30 r3573 [i686-linux-3.10.4-pmagic] (local build)
Copyright (C) 2002-12 by Bruce Allen, http://smartmontools.sourceforge.net
=== START OF INFORMATION SECTION ===
Device Model: Hitachi HTS543232A7A384
Serial Number: 120314E2M3121K05T0BP
LU WWN Device Id: 5 000cca 6e9c29ffe
Firmware Version: ES2OA70K
User Capacity: 320,072,933,376 bytes [320 GB]
Sector Size: 512 bytes logical/physical
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: 8
ATA Standard is: ATA-8-ACS revision 6
Local Time is: Thu Dec 1 18:58:10 2016 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 121) The previous self-test completed having
the read element of the test failed.
Total time to complete Offline
data collection: ( 45) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 82) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000b 077 077 062 Pre-fail Always - 87425025
2 Throughput_Performance 0x0005 100 100 040 Pre-fail Offline - 0
3 Spin_Up_Time 0x0007 236 236 033 Pre-fail Always - 0
4 Start_Stop_Count 0x0012 093 093 000 Old_age Always - 12459
5 Reallocated_Sector_Ct 0x0033 041 041 005 Pre-fail Always - 1132
7 Seek_Error_Rate 0x000b 100 100 067 Pre-fail Always - 0
8 Seek_Time_Performance 0x0005 100 100 040 Pre-fail Offline - 0
9 Power_On_Hours 0x0012 098 098 000 Old_age Always - 904
10 Spin_Retry_Count 0x0013 100 100 060 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 820
191 G-Sense_Error_Rate 0x000a 100 100 000 Old_age Always - 0
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 56
193 Load_Cycle_Count 0x0012 092 092 000 Old_age Always - 84107
194 Temperature_Celsius 0x0002 193 193 000 Old_age Always - 31 (Min/Max 9/46)
196 Reallocated_Event_Count 0x0032 007 007 000 Old_age Always - 2307
197 Current_Pending_Sector 0x0022 092 092 000 Old_age Always - 408
198 Offline_Uncorrectable 0x0008 100 100 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x000a 200 200 000 Old_age Always - 0
223 Load_Retry_Count 0x000a 100 100 000 Old_age Always - 0
SMART Error Log Version: 1
ATA Error Count: 1913 (device log contains only the most recent five errors)
CR = Command Register [HEX]
FR = Features Register [HEX]
SC = Sector Count Register [HEX]
SN = Sector Number Register [HEX]
CL = Cylinder Low Register [HEX]
CH = Cylinder High Register [HEX]
DH = Device/Head Register [HEX]
DC = Device Command Register [HEX]
ER = Error register [HEX]
ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.
Error 1913 occurred at disk power-on lifetime: 903 hours (37 days + 15 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 01 43 ec 62 00 Error: UNC at LBA = 0x0062ec43 = 6483011
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 01 30 47 ec 62 40 00 00:07:49.631 READ FPDMA QUEUED
60 01 28 46 ec 62 40 00 00:07:49.631 READ FPDMA QUEUED
60 01 20 45 ec 62 40 00 00:07:49.631 READ FPDMA QUEUED
60 01 18 44 ec 62 40 00 00:07:49.631 READ FPDMA QUEUED
60 01 10 43 ec 62 40 00 00:07:49.631 READ FPDMA QUEUED
Error 1912 occurred at disk power-on lifetime: 903 hours (37 days + 15 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 0d 43 ec 62 00 Error: UNC at LBA = 0x0062ec43 = 6483011
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 58 08 f8 eb 62 40 00 00:07:46.338 READ FPDMA QUEUED
60 a8 00 50 eb 62 40 00 00:07:46.338 READ FPDMA QUEUED
60 58 08 f8 ea 62 40 00 00:07:46.335 READ FPDMA QUEUED
60 a8 00 50 ea 62 40 00 00:07:46.335 READ FPDMA QUEUED
60 58 08 f8 e9 62 40 00 00:07:46.332 READ FPDMA QUEUED
Error 1911 occurred at disk power-on lifetime: 903 hours (37 days + 15 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 05 43 ec 62 00 Error: UNC at LBA = 0x0062ec43 = 6483011
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 08 08 40 ec 62 40 00 01:07:04.330 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:07:04.330 SET FEATURES [Enable write cache]
60 08 08 40 ec 62 40 ff 01:07:04.309 READ FPDMA QUEUED
60 08 08 40 ec 62 40 00 01:07:01.002 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:07:01.002 SET FEATURES [Enable write cache]
Error 1910 occurred at disk power-on lifetime: 903 hours (37 days + 15 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 05 43 ec 62 00 Error: UNC at LBA = 0x0062ec43 = 6483011
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 08 08 40 ec 62 40 00 01:07:01.002 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:07:01.002 SET FEATURES [Enable write cache]
60 08 08 40 ec 62 40 ff 01:07:00.973 READ FPDMA QUEUED
60 08 08 40 ec 62 40 00 01:06:57.659 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:06:57.658 SET FEATURES [Enable write cache]
Error 1909 occurred at disk power-on lifetime: 903 hours (37 days + 15 hours)
When the command that caused the error occurred, the device was active or idle.
After command completion occurred, registers were:
ER ST SC SN CL CH DH
-- -- -- -- -- -- --
40 51 05 43 ec 62 00 Error: UNC at LBA = 0x0062ec43 = 6483011
Commands leading to the command that caused the error were:
CR FR SC SN CL CH DH DC Powered_Up_Time Command/Feature_Name
-- -- -- -- -- -- -- -- ---------------- --------------------
60 08 08 40 ec 62 40 00 01:06:57.659 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:06:57.658 SET FEATURES [Enable write cache]
60 08 08 40 ec 62 40 ff 01:06:57.636 READ FPDMA QUEUED
60 08 08 40 ec 62 40 00 01:06:54.331 READ FPDMA QUEUED
ef 02 00 00 00 00 00 00 01:06:54.331 SET FEATURES [Enable write cache]
SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed: read failure 90% 904 34286900
# 2 Short offline Completed: read failure 50% 903 1118
# 3 Short offline Completed: read failure 50% 903 1118
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.Hier mal noch Bilder:
Gruß Marker
