Leserartikel Jonsplus Z20 MATX Gehäuse mit Tragegriff und platz für ATX Netzteil

Status
Für weitere Antworten geschlossen.

nofuture

Cadet 4th Year
Registriert
Sep. 2010
Beiträge
64


Soll bei caseking erhältlich sein bald

https://www.jonsplus.com/products/z20b.html

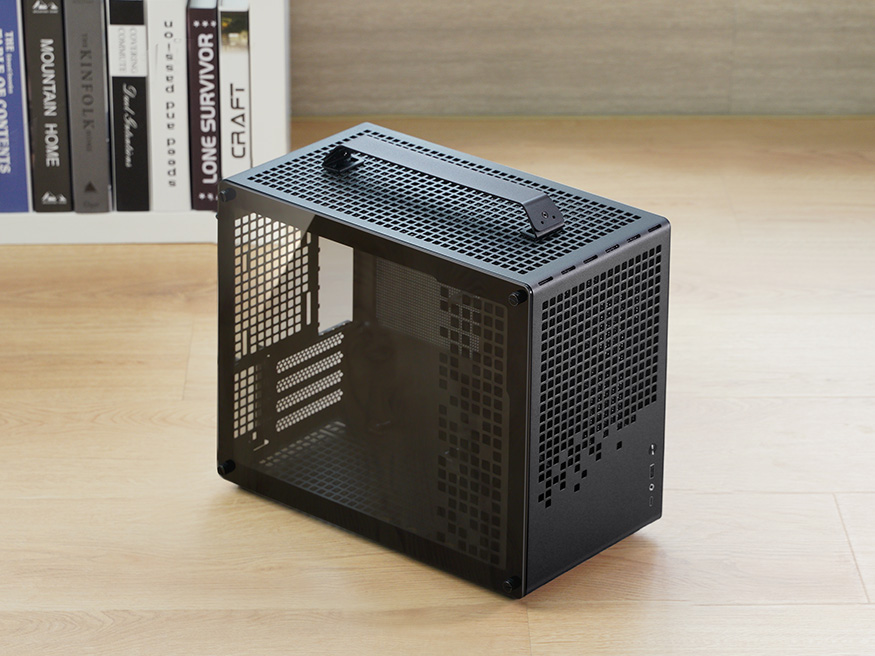

Z20 Tempered Glass Version Black​

High-performance hardware compatibility / compact design​

Building a compact desktop mini-host is fun, but also comes with many trade-offs. As the case size shrinks, conflicts such as compatibility, heat dissipation, and installation experience gradually increase, hence only a minority of users with ample experience possess a clear building strategy and assembly skills. In view of this, we constantly contemplate how to optimize the design to maintain a compact hardware layout, while enhancing the internal hardware compatibility, ultimately allowing more users to experience the practicality and joy of small form factor models.

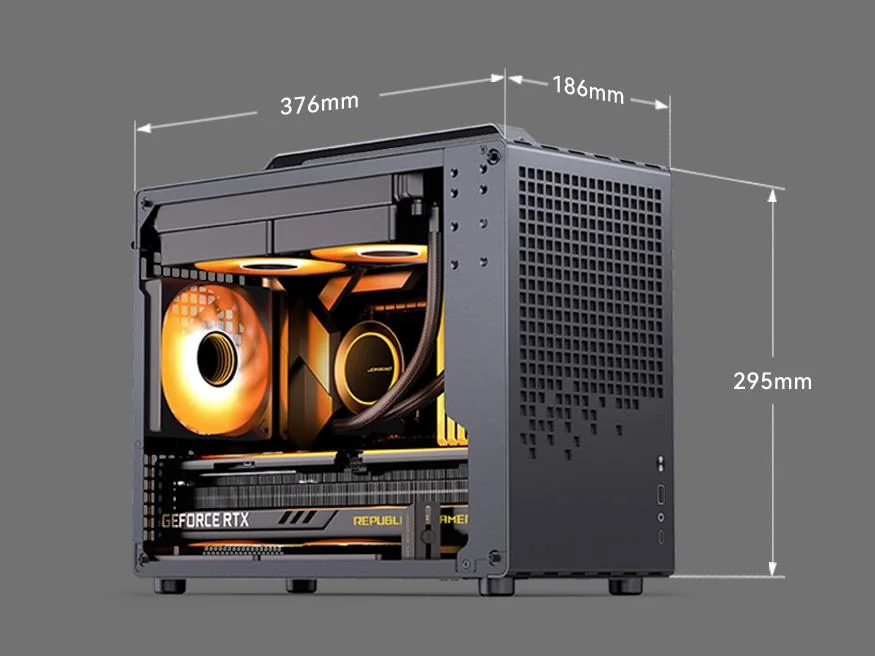

● Main body dimensions 370mm*186mm*295mm (length/width/height, excluding handles/feet and other protrusions), only about 20L in volume
● Frame integrated bending, with plate thickness up to 2mm / Equipped with removable portable handle
● Compatible with a 60mm thickness (30mm radiator + fan) performance grade 240 water cooler or 160mm height dual-tower air cooler
● Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards
● In air-cooled mode, supports ATX power supplies at least 15cm in length; in water-cooled mode, supports ATX power supplies at least 14cm in length
● Optimized installation experience design: flexible and variable hardware combinations within a small space

Danke für das Zeigen dieses interessanten Gehäuses. Wieso allerdings ist dort Text auf englisch rein kopiert und weswegen hast du es als Leserartikel gekennzeichnet?
