Ich habe ein neues „ASUS ROG Strix B850-A Gaming WIFI“ und habe das Problem, dass meine Mikrofonbuchse (hinten und vorne) nicht funktioniert. Das Board verwendet einen „ROG SupremeFX ALC4080 Codec mit Savitech SV3H712 AMP“.
Der ALC4080 scheint Probleme mit Mikrofonen zu besitzen.
# Inputs
- Ich nutze Arch Linux und KDE Plasma 6. Arch wurde nicht neu installiert. sof-firmware und alsa-firmware sind installiert.
- Die Mikrofonbuchse funktioniert unter Windows 11. Der hintere Kopfhöreranschluss und der hintere optische S/PDIF-Ausgang funktionieren.
- Ich habe bereits die neuste Git-Version von alsa-ucm-conf für „0b05:1b9b ASUSTek Computer, Inc. USB Audio“ installiert.
- Das Deaktivieren des HD-Audio-Controllers (NB Azalia) im UEFI hilft nicht.

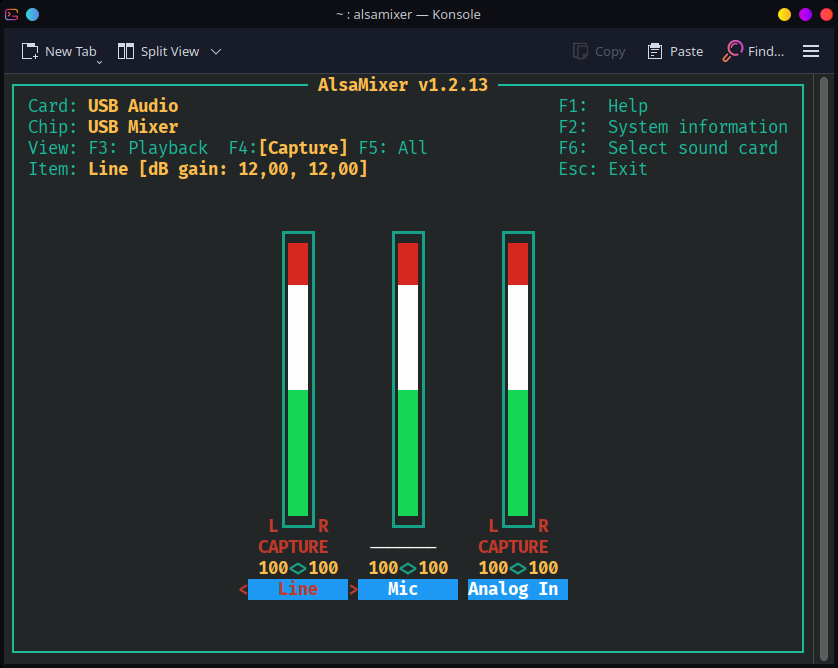

- In alsamixer fehlt auch die Option für die Mikrofon-Verstärkung. Mic wurde auf 100% aufgedreht.
- Über ALSA höre ich auch nichts:
$ arecord -D hw:CARD=3,DEV=0 -f dat -vvv 3-0.wav
$ arecord -D hw:CARD=3,DEV=1 -f dat -vvv 3-1.wav
$ arecord -D hw:CARD=3,DEV=2 -f dat -vvv 3-2.wav
Der ALC4080 scheint Probleme mit Mikrofonen zu besitzen.
- "Looks like alsa does not use internal hardware amplifier for microphone inputs by some reason, It only control volume of input to ADC." #317
- No Micrphone detected on ALC4080 - Gigabyte B850I Aorus Pro (rev 1.0) #528
- Mic not working on "ROG Strix Z790-A Gaming WIFI II" with ALC4080 #431
# Inputs

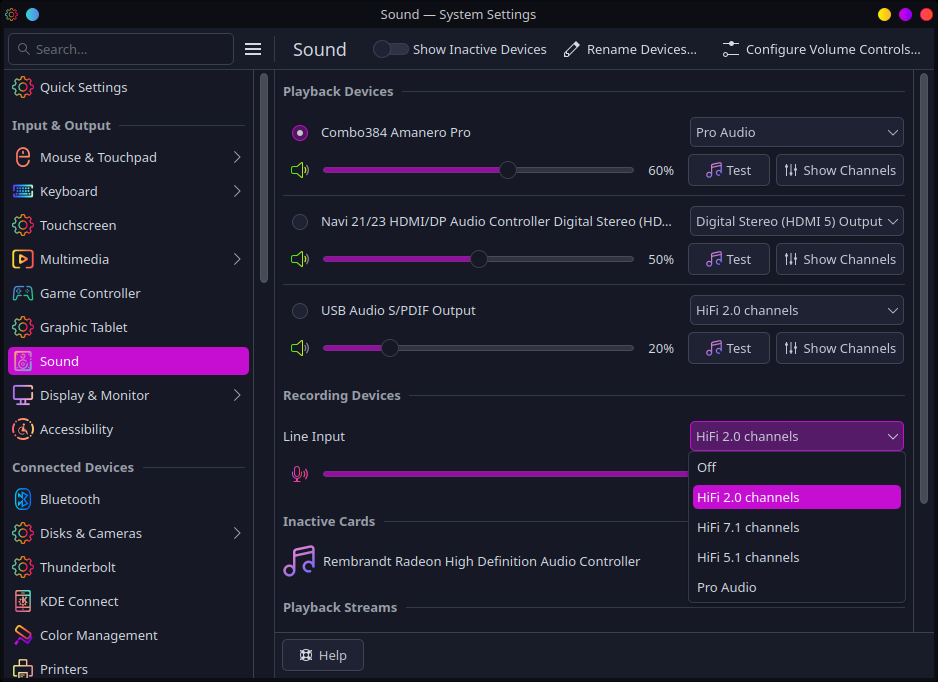

- Line1: Line Input (rear panel line in jack) -> plugged in
- Mic1: Microphone (front panel microphone jack)
Code:
# journalctl -b -p3
Mär 19 10:12:45 archlinux kernel: hub 8-0:1.0: config failed, hub doesn't have any ports! (err -19)
Mär 19 10:13:14 myhostname kernel: usb 1-6: parse_audio_format_rates_v2v3(): unable to retrieve number of sample rates (clock 1)
The parse_audio_format_rates_v2v3() error comes from the "USB Audio".
Code:
# lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
-> Bus 001 Device 002: ID 0b05:1b9b ASUSTek Computer, Inc. USB Audio
Bus 001 Device 003: ID 0b05:19af ASUSTek Computer, Inc. AURA LED Controller
Bus 001 Device 004: ID 13d3:3602 IMC Networks Wireless_Device
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 002: ID 1af3:0001 Kingsis Technology Corporation ZOWIE Gaming mouse
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 005 Device 002: ID 174c:2074 ASMedia Technology Inc. ASM1074 High-Speed hub
Bus 005 Device 003: ID 594d:4d97 YMDK Melody96 Hotswap
Bus 005 Device 004: ID 16d0:071a MCS Combo384 Amanero
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 006 Device 002: ID 174c:3074 ASMedia Technology Inc. ASM1074 SuperSpeed hub
Bus 007 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 008 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Code:
# arecord -l
**** List of CAPTURE Hardware Devices ****
card 3: Audio [USB Audio], device 0: USB Audio [USB Audio]
Subdevices: 1/1
Subdevice #0: subdevice #0
card 3: Audio [USB Audio], device 1: USB Audio [USB Audio #1]
Subdevices: 0/1
Subdevice #0: subdevice #0
card 3: Audio [USB Audio], device 2: USB Audio [USB Audio #2]
Subdevices: 1/1
Subdevice #0: subdevice #0
Code:
# alsaucm -c hw:3 dump text
Verb.HiFi {
Comment "HiFi 2.0 channels"
Device.Speaker {
Comment Speakers
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Speaker - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackChannels 2
PlaybackMixerElem PCM,0
PlaybackPCM "_ucm0001.hw:Audio"
PlaybackPriority 200
TQ HiFi
}
}
Device.Headphones {
Comment "Front Headphones"
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Headphone - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,1
PlaybackPCM "_ucm0001.hw:Audio,1"
PlaybackPriority 300
TQ HiFi
}
}
Device.SPDIF {
Comment "S/PDIF Output"
Values {
CaptureCTL "_ucm0001.hw:Audio"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,2
PlaybackPCM "_ucm0001.hw:Audio,3"
PlaybackPriority 100
TQ HiFi
}
}
Device.Line1 {
Comment "Line Input"
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Line,0
CapturePCM "_ucm0001.hw:Audio,1"
CapturePriority 100
JackControl "Line - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
Device.Mic1 {
Comment Microphone
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Mic,0
CapturePCM "_ucm0001.hw:Audio,2"
CapturePriority 300
JackControl "Mic - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
}
Verb."HiFi 5+1" {
Comment "HiFi 5.1 channels"
Device.Speaker {
Comment Speakers
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Speaker - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackChannels 6
PlaybackMixerElem PCM,0
PlaybackPCM "_ucm0001.hw:Audio"
PlaybackPriority 200
TQ HiFi
}
}
Device.Headphones {
Comment "Front Headphones"
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Headphone - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,1
PlaybackPCM "_ucm0001.hw:Audio,1"
PlaybackPriority 300
TQ HiFi
}
}
Device.SPDIF {
Comment "S/PDIF Output"
Values {
CaptureCTL "_ucm0001.hw:Audio"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,2
PlaybackPCM "_ucm0001.hw:Audio,3"
PlaybackPriority 100
TQ HiFi
}
}
Device.Line1 {
Comment "Line Input"
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Line,0
CapturePCM "_ucm0001.hw:Audio,1"
CapturePriority 100
JackControl "Line - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
Device.Mic1 {
Comment Microphone
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Mic,0
CapturePCM "_ucm0001.hw:Audio,2"
CapturePriority 300
JackControl "Mic - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
}
Verb."HiFi 7+1" {
Comment "HiFi 7.1 channels"
Device.Speaker {
Comment Speakers
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Speaker - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackChannels 8
PlaybackMixerElem PCM,0
PlaybackPCM "_ucm0001.hw:Audio"
PlaybackPriority 200
TQ HiFi
}
}
Device.Headphones {
Comment "Front Headphones"
Values {
CaptureCTL "_ucm0001.hw:Audio"
JackControl "Headphone - Output Jack"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,1
PlaybackPCM "_ucm0001.hw:Audio,1"
PlaybackPriority 300
TQ HiFi
}
}
Device.SPDIF {
Comment "S/PDIF Output"
Values {
CaptureCTL "_ucm0001.hw:Audio"
PlaybackCTL "_ucm0001.hw:Audio"
PlaybackMixerElem PCM,2
PlaybackPCM "_ucm0001.hw:Audio,3"
PlaybackPriority 100
TQ HiFi
}
}
Device.Line1 {
Comment "Line Input"
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Line,0
CapturePCM "_ucm0001.hw:Audio,1"
CapturePriority 100
JackControl "Line - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
Device.Mic1 {
Comment Microphone
Values {
CaptureCTL "_ucm0001.hw:Audio"
CaptureMixerElem Mic,0
CapturePCM "_ucm0001.hw:Audio,2"
CapturePriority 300
JackControl "Mic - Input Jack"
PlaybackCTL "_ucm0001.hw:Audio"
TQ HiFi
}
}
Code:
# doas dmesg | grep -iE 'snd|usb'
[ 0.000000] Command line: snd_usb_audio.autoclock=0 preempt=full threadirqs libahci.ignore_sss=1 amd_pstate=active amdgpu.ppfeaturemask=0xfffdbfff # Disable: PP_STUTTER_MODE ; Enable: PP_GFX_DCS_MASK amdgpu.dcdebugmask=0x10 # Disable: PSR for Linux 6.12 rootflags=subvol=@ bgrt_disable quiet loglevel=4 lsm=landlock,lockdown,yama,integrity,apparmor,bpf lockdown=integrity iommu=pt
[ 0.027761] Kernel command line: snd_usb_audio.autoclock=0 preempt=full threadirqs libahci.ignore_sss=1 amd_pstate=active amdgpu.ppfeaturemask=0xfffdbfff # Disable: PP_STUTTER_MODE ; Enable: PP_GFX_DCS_MASK amdgpu.dcdebugmask=0x10 # Disable: PSR for Linux 6.12 rootflags=subvol=@ bgrt_disable quiet loglevel=4 lsm=landlock,lockdown,yama,integrity,apparmor,bpf lockdown=integrity iommu=pt
[ 0.233117] ACPI: bus type USB registered
[ 0.233117] usbcore: registered new interface driver usbfs
[ 0.233117] usbcore: registered new interface driver hub
[ 0.233117] usbcore: registered new device driver usb
[ 0.468589] xhci_hcd 0000:09:00.0: new USB bus registered, assigned bus number 1
[ 0.524838] xhci_hcd 0000:09:00.0: new USB bus registered, assigned bus number 2
[ 0.524839] xhci_hcd 0000:09:00.0: Host supports USB 3.2 Enhanced SuperSpeed
[ 0.525607] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.13
[ 0.525608] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.525609] usb usb1: Product: xHCI Host Controller
[ 0.525609] usb usb1: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.525610] usb usb1: SerialNumber: 0000:09:00.0
[ 0.525663] hub 1-0:1.0: USB hub found
[ 0.526595] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 0.526601] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.13
[ 0.526602] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.526602] usb usb2: Product: xHCI Host Controller
[ 0.526603] usb usb2: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.526603] usb usb2: SerialNumber: 0000:09:00.0
[ 0.526637] hub 2-0:1.0: USB hub found
[ 0.527088] xhci_hcd 0000:0c:00.3: new USB bus registered, assigned bus number 3
[ 0.527627] xhci_hcd 0000:0c:00.3: new USB bus registered, assigned bus number 4
[ 0.527628] xhci_hcd 0000:0c:00.3: Host supports USB 3.1 Enhanced SuperSpeed
[ 0.527637] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.13
[ 0.527638] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.527639] usb usb3: Product: xHCI Host Controller
[ 0.527639] usb usb3: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.527639] usb usb3: SerialNumber: 0000:0c:00.3
[ 0.527678] hub 3-0:1.0: USB hub found
[ 0.527840] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.
[ 0.527846] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.13
[ 0.527847] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.527847] usb usb4: Product: xHCI Host Controller
[ 0.527848] usb usb4: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.527848] usb usb4: SerialNumber: 0000:0c:00.3
[ 0.527880] hub 4-0:1.0: USB hub found
[ 0.528061] xhci_hcd 0000:0c:00.4: new USB bus registered, assigned bus number 5
[ 0.528588] xhci_hcd 0000:0c:00.4: new USB bus registered, assigned bus number 6
[ 0.528589] xhci_hcd 0000:0c:00.4: Host supports USB 3.1 Enhanced SuperSpeed
[ 0.528598] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.13
[ 0.528598] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.528599] usb usb5: Product: xHCI Host Controller
[ 0.528599] usb usb5: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.528600] usb usb5: SerialNumber: 0000:0c:00.4
[ 0.528627] hub 5-0:1.0: USB hub found
[ 0.528773] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[ 0.528779] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.13
[ 0.528779] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.528780] usb usb6: Product: xHCI Host Controller
[ 0.528780] usb usb6: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.528781] usb usb6: SerialNumber: 0000:0c:00.4
[ 0.528799] hub 6-0:1.0: USB hub found
[ 0.528962] xhci_hcd 0000:0d:00.0: new USB bus registered, assigned bus number 7
[ 0.530221] xhci_hcd 0000:0d:00.0: USB3 root hub has no ports
[ 0.530436] xhci_hcd 0000:0d:00.0: new USB bus registered, assigned bus number 8
[ 0.530437] xhci_hcd 0000:0d:00.0: Host supports USB 3.0 SuperSpeed
[ 0.530450] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.13
[ 0.530451] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.530451] usb usb7: Product: xHCI Host Controller
[ 0.530452] usb usb7: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.530452] usb usb7: SerialNumber: 0000:0d:00.0
[ 0.530473] hub 7-0:1.0: USB hub found
[ 0.530560] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.
[ 0.530567] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.13
[ 0.530567] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 0.530568] usb usb8: Product: xHCI Host Controller
[ 0.530568] usb usb8: Manufacturer: Linux 6.13.7-zen1-1-zen xhci-hcd
[ 0.530569] usb usb8: SerialNumber: 0000:0d:00.0
[ 0.530587] hub 8-0:1.0: USB hub found
[ 0.530610] usbcore: registered new interface driver usbserial_generic
[ 0.530612] usbserial: USB Serial support registered for generic
[ 0.768312] usb 5-2: new high-speed USB device number 2 using xhci_hcd
[ 0.768325] usb 3-1: new full-speed USB device number 2 using xhci_hcd
[ 0.768340] usb 7-1: new high-speed USB device number 2 using xhci_hcd
[ 0.829340] usb 1-6: new high-speed USB device number 2 using xhci_hcd
[ 0.898490] usb 5-2: New USB device found, idVendor=174c, idProduct=2074, bcdDevice= 0.01
[ 0.898495] usb 5-2: New USB device strings: Mfr=2, Product=3, SerialNumber=0
[ 0.898496] usb 5-2: Product: ASM107x
[ 0.898497] usb 5-2: Manufacturer: ASUS TEK.
[ 0.915670] usb 3-1: New USB device found, idVendor=1af3, idProduct=0001, bcdDevice= 0.01
[ 0.915673] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 0.915674] usb 3-1: Product: ZOWIE Gaming mouse
[ 0.915674] usb 3-1: Manufacturer: Kingsis Peripherals
[ 0.944830] hub 5-2:1.0: USB hub found
[ 0.965758] usb 7-1: New USB device found, idVendor=21c4, idProduct=0cd1, bcdDevice=11.00
[ 0.965759] usb 7-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 0.965760] usb 7-1: Product: USB Flash Drive
[ 0.965760] usb 7-1: Manufacturer: Lexar
[ 0.965761] usb 7-1: SerialNumber: 54000120933WF3YL
[ 1.012094] usb 6-2: new SuperSpeed USB device number 2 using xhci_hcd
[ 1.059386] usb 6-2: New USB device found, idVendor=174c, idProduct=3074, bcdDevice= 0.01
[ 1.059389] usb 6-2: New USB device strings: Mfr=2, Product=3, SerialNumber=0
[ 1.059390] usb 6-2: Product: ASM107x
[ 1.059390] usb 6-2: Manufacturer: ASUS TEK.
[ 1.070072] usb-storage 7-1:1.0: USB Mass Storage device detected
[ 1.070129] scsi host6: usb-storage 7-1:1.0
[ 1.070163] usbcore: registered new interface driver usb-storage
[ 1.072927] usbcore: registered new interface driver uas
[ 1.092190] hub 6-2:1.0: USB hub found
[ 1.150741] usbcore: registered new interface driver usbhid
[ 1.150743] usbhid: USB HID core driver
[ 1.179603] input: Kingsis Peripherals ZOWIE Gaming mouse as /devices/pci0000:00/0000:00:08.1/0000:0c:00.3/usb3/3-1/3-1:1.0/0003:1AF3:0001.0001/input/input3
[ 1.179635] hid-generic 0003:1AF3:0001.0001: input,hidraw0: USB HID v1.11 Mouse [Kingsis Peripherals ZOWIE Gaming mouse] on usb-0000:0c:00.3-1/input0
[ 1.337327] usb 5-2.1: new full-speed USB device number 3 using xhci_hcd
[ 1.457499] usb 5-2.1: New USB device found, idVendor=594d, idProduct=4d97, bcdDevice= 0.01
[ 1.457502] usb 5-2.1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 1.457503] usb 5-2.1: Product: Melody96 Hotswap
[ 1.457504] usb 5-2.1: Manufacturer: YMDK
[ 1.559652] input: YMDK Melody96 Hotswap as /devices/pci0000:00/0000:00:08.1/0000:0c:00.4/usb5/5-2/5-2.1/5-2.1:1.0/0003:594D:4D97.0002/input/input4
[ 1.650321] hid-generic 0003:594D:4D97.0002: input,hidraw1: USB HID v1.11 Keyboard [YMDK Melody96 Hotswap] on usb-0000:0c:00.4-2.1/input0
[ 1.653700] input: YMDK Melody96 Hotswap System Control as /devices/pci0000:00/0000:00:08.1/0000:0c:00.4/usb5/5-2/5-2.1/5-2.1:1.1/0003:594D:4D97.0003/input/input5
[ 1.704388] input: YMDK Melody96 Hotswap Consumer Control as /devices/pci0000:00/0000:00:08.1/0000:0c:00.4/usb5/5-2/5-2.1/5-2.1:1.1/0003:594D:4D97.0003/input/input6
[ 1.704415] input: YMDK Melody96 Hotswap Keyboard as /devices/pci0000:00/0000:00:08.1/0000:0c:00.4/usb5/5-2/5-2.1/5-2.1:1.1/0003:594D:4D97.0003/input/input7
[ 1.744343] hid-generic 0003:594D:4D97.0003: input,hidraw2: USB HID v1.11 Keyboard [YMDK Melody96 Hotswap] on usb-0000:0c:00.4-2.1/input1
[ 1.826321] usb 5-2.4: new high-speed USB device number 4 using xhci_hcd
[ 1.923718] usb 5-2.4: New USB device found, idVendor=16d0, idProduct=071a, bcdDevice= 1.96
[ 1.923720] usb 5-2.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 1.923720] usb 5-2.4: Product: Combo384 Amanero
[ 1.923721] usb 5-2.4: Manufacturer: Amanero Technologies
[ 1.923722] usb 5-2.4: SerialNumber: 413-001
[ 2.175334] scsi 6:0:0:0: Direct-Access Lexar USB Flash Drive 1100 PQ: 0 ANSI: 6
[ 3.106428] usb 1-6: New USB device found, idVendor=0b05, idProduct=1b9b, bcdDevice= 0.13
[ 3.106429] usb 1-6: New USB device strings: Mfr=3, Product=1, SerialNumber=0
[ 3.106430] usb 1-6: Product: USB Audio
[ 3.106430] usb 1-6: Manufacturer: Generic
[ 3.161507] hid-generic 0003:0B05:1B9B.0004: hiddev96,hidraw3: USB HID v1.11 Device [Generic USB Audio] on usb-0000:09:00.0-6/input7
[ 3.336296] usb 1-7: new full-speed USB device number 3 using xhci_hcd
[ 3.693232] usb 1-7: config 1 has an invalid interface number: 2 but max is 1
[ 3.693234] usb 1-7: config 1 has no interface number 1
[ 3.705217] usb 1-7: New USB device found, idVendor=0b05, idProduct=19af, bcdDevice= 1.00
[ 3.705218] usb 1-7: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3.705219] usb 1-7: Product: AURA LED Controller
[ 3.705220] usb 1-7: Manufacturer: AsusTek Computer Inc.
[ 3.705220] usb 1-7: SerialNumber: 9876543210
[ 3.720066] hid-generic 0003:0B05:19AF.0005: hiddev97,hidraw4: USB HID v1.11 Device [AsusTek Computer Inc. AURA LED Controller] on usb-0000:09:00.0-7/input2
[ 3.892311] usb 1-11: new high-speed USB device number 4 using xhci_hcd
[ 4.110445] usb 1-11: New USB device found, idVendor=13d3, idProduct=3602, bcdDevice= 1.00
[ 4.110451] usb 1-11: New USB device strings: Mfr=5, Product=6, SerialNumber=7
[ 4.110453] usb 1-11: Product: Wireless_Device
[ 4.110454] usb 1-11: Manufacturer: MediaTek Inc.
[ 4.110454] usb 1-11: SerialNumber: 000000000
[ 17.594890] snd_hda_intel 0000:03:00.1: enabling device (0000 -> 0002)
[ 17.595003] snd_hda_intel 0000:03:00.1: Handle vga_switcheroo audio client
[ 17.595004] snd_hda_intel 0000:03:00.1: Force to non-snoop mode
[ 17.595054] snd_hda_intel 0000:0c:00.1: enabling device (0000 -> 0002)
[ 17.595082] snd_hda_intel 0000:0c:00.1: Handle vga_switcheroo audio client
[ 17.598968] usbcore: registered new interface driver btusb
[ 17.601850] snd_hda_intel 0000:0c:00.1: bound 0000:0c:00.0 (ops amdgpu_dm_audio_component_bind_ops [amdgpu])
[ 17.603113] snd_hda_intel 0000:03:00.1: bound 0000:03:00.0 (ops amdgpu_dm_audio_component_bind_ops [amdgpu])
[ 17.654886] usb 5-2.4: Warning! Unlikely big volume range (=32767), cval->res is probably wrong.
[ 17.654892] usb 5-2.4: [10] FU [PCM Playback Volume] ch = 2, val = -32767/0/1
[ 17.658758] usb 5-2.4: Warning! Unlikely big volume range (=32767), cval->res is probably wrong.
[ 17.658760] usb 5-2.4: [10] FU [PCM Playback Volume] ch = 1, val = -32767/0/1
[ 33.328940] usb 1-6: parse_audio_format_rates_v2v3(): unable to retrieve number of sample rates (clock 1)
[ 41.634249] usbcore: registered new interface driver snd-usb-audio
Code:
# pactl list cards
Card #50
Name: alsa_card.usb-Generic_USB_Audio-00
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "3"
api.alsa.card.longname = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
api.alsa.card.name = "USB Audio"
api.alsa.path = "hw:3"
api.alsa.split-enable = "true"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio3"
api.dbus.ReserveDevice1.Priority = "-20"
device.api = "alsa"
device.bus = "usb"
device.bus-id = "usb-Generic_USB_Audio-00"
device.bus_path = "pci-0000:09:00.0-usb-0:6:1.0"
device.description = "USB Audio"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-usb"
device.name = "alsa_card.usb-Generic_USB_Audio-00"
device.nick = "USB Audio"
device.plugged.usec = "41632790"
device.product.id = "0x1b9b"
device.product.name = "USB Audio"
device.serial = "Generic_USB_Audio"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:02.1/0000:04:00.0/0000:05:0c.0/0000:09:00.0/usb1/1-6/1-6:1.0/sound/card3"
device.vendor.id = "0x0b05"
device.vendor.name = "ASUSTek Computer, Inc."
media.class = "Audio/Device"
spa.object.id = "8"
factory.id = "15"
client.id = "47"
object.id = "50"
object.serial = "50"
object.path = "alsa:acp:Audio"
alsa.card = "3"
alsa.card_name = "USB Audio"
alsa.long_card_name = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
alsa.driver_name = "snd_usb_audio"
alsa.mixer_name = "USB Mixer"
alsa.components = "USB0b05:1b9b"
alsa.id = "Audio"
device.string = "3"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
HiFi: HiFi 2.0 channels (sinks: 3, sources: 2, priority: 9000, available: yes)
HiFi 7+1: HiFi 7.1 channels (sinks: 3, sources: 2, priority: 1000, available: yes)
HiFi 5+1: HiFi 5.1 channels (sinks: 3, sources: 2, priority: 1000, available: yes)
pro-audio: Pro Audio (sinks: 4, sources: 3, priority: 1, available: yes)
Active Profile: HiFi
Ports:
[Out] SPDIF: S/PDIF Output (type: SPDIF, priority: 100, latency offset: 0 usec, availability unknown)
Properties:
port.type = "spdif"
device.icon_name = "audio-speakers"
card.profile.port = "0"
Part of profile(s): HiFi 7+1, HiFi 5+1, HiFi
[Out] Headphones: Front Headphones (type: Headphones, priority: 300, latency offset: 0 usec, availability group: Headphone - Output, not available)
Properties:
port.type = "headphones"
port.availability-group = "Headphone - Output"
device.icon_name = "audio-headphones"
card.profile.port = "1"
Part of profile(s): HiFi 7+1, HiFi 5+1, HiFi
[Out] Speaker: Speakers (type: Speaker, priority: 200, latency offset: 0 usec, availability group: Speaker - Output, not available)
Properties:
port.type = "speaker"
port.availability-group = "Speaker - Output"
device.icon_name = "audio-speakers"
card.profile.port = "2"
Part of profile(s): HiFi 7+1, HiFi 5+1, HiFi
[In] Mic1: Microphone (type: Mic, priority: 300, latency offset: 0 usec, availability group: Mic - Input, not available)
Properties:
port.type = "mic"
port.availability-group = "Mic - Input"
device.icon_name = "audio-input-microphone"
card.profile.port = "3"
Part of profile(s): HiFi 7+1, HiFi 5+1, HiFi
[In] Line1: Line Input (type: Line, priority: 100, latency offset: 0 usec, availability group: Line - Input, available)
Properties:
port.type = "line"
port.availability-group = "Line - Input"
device.icon_name = "audio-input-microphone"
card.profile.port = "4"
Part of profile(s): HiFi 7+1, HiFi 5+1, HiFi
Code:
# doas lsusb -v | grep -A 20 -i "0b05:1b9b"
Bus 001 Device 002: ID 0b05:1b9b ASUSTek Computer, Inc. USB Audio
Negotiated speed: High Speed (480Mbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x0b05 ASUSTek Computer, Inc.
idProduct 0x1b9b USB Audio
bcdDevice 0.13
iManufacturer 3 Generic
iProduct 1 USB Audio
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0e23
Code:
# pactl list sources
Source #65
State: SUSPENDED
Name: alsa_input.usb-Generic_USB_Audio-00.HiFi__Mic1__source
Description: USB Audio Microphone
Driver: PipeWire
Sample Specification: s24le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
Base Volume: 65536 / 100% / 0,00 dB
Monitor of Sink: n/a
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "3"
alsa.card_name = "USB Audio"
alsa.class = "generic"
alsa.components = "USB0b05:1b9b"
alsa.device = "2"
alsa.driver_name = "snd_usb_audio"
alsa.id = "USB Audio"
alsa.long_card_name = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
alsa.mixer_device = "_ucm0003.hw:Audio"
alsa.mixer_name = "USB Mixer"
alsa.name = "USB Audio #2"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.sync.id = "00000000:00000000:00000000:00000000"
api.alsa.card.longname = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
api.alsa.card.name = "USB Audio"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:Audio,2"
api.alsa.pcm.card = "3"
api.alsa.pcm.stream = "capture"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "13"
device.api = "alsa"
device.class = "sound"
device.icon_name = "audio-input-microphone"
device.id = "52"
device.profile.description = "Microphone"
device.profile.name = "HiFi: Mic1: source"
device.routes = "1"
factory.name = "api.alsa.pcm.source"
media.class = "Audio/Source"
device.description = "USB Audio"
node.name = "alsa_input.usb-Generic_USB_Audio-00.HiFi__Mic1__source"
node.nick = "USB Audio #2"
node.pause-on-idle = "false"
object.path = "alsa:acp:Audio:13:capture"
port.group = "capture"
priority.driver = "1712"
priority.session = "1712"
factory.id = "19"
clock.quantum-limit = "8192"
client.id = "47"
node.driver = "true"
node.loop.name = "data-loop.0"
library.name = "audioconvert/libspa-audioconvert"
object.id = "45"
object.serial = "65"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "3"
api.alsa.split-enable = "true"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio3"
api.dbus.ReserveDevice1.Priority = "-20"
device.bus = "usb"
device.bus-id = "usb-Generic_USB_Audio-00"
device.bus_path = "pci-0000:09:00.0-usb-0:6:1.0"
device.enum.api = "udev"
device.name = "alsa_card.usb-Generic_USB_Audio-00"
device.nick = "USB Audio"
device.plugged.usec = "39411866"
device.product.id = "0x1b9b"
device.product.name = "USB Audio"
device.serial = "Generic_USB_Audio"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:02.1/0000:04:00.0/0000:05:0c.0/0000:09:00.0/usb1/1-6/1-6:1.0/sound/card3"
device.vendor.id = "0x0b05"
device.vendor.name = "ASUSTek Computer, Inc."
spa.object.id = "8"
device.string = "3"
Ports:
[In] Mic1: Microphone (type: Mic, priority: 300, availability group: Mic - Input, not available)
Active Port: [In] Mic1
Formats:
pcm
Source #66
State: RUNNING
Name: alsa_input.usb-Generic_USB_Audio-00.HiFi__Line1__source
Description: USB Audio Line Input
Driver: PipeWire
Sample Specification: s24le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
Base Volume: 41350 / 63% / -12,00 dB
Monitor of Sink: n/a
Latency: 0 usec, configured 0 usec
Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "3"
alsa.card_name = "USB Audio"
alsa.class = "generic"
alsa.components = "USB0b05:1b9b"
alsa.device = "1"
alsa.driver_name = "snd_usb_audio"
alsa.id = "USB Audio"
alsa.long_card_name = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
alsa.mixer_device = "_ucm0003.hw:Audio"
alsa.mixer_name = "USB Mixer"
alsa.name = "USB Audio #1"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.sync.id = "00000000:00000000:00000000:00000000"
api.alsa.card.longname = "Generic USB Audio at usb-0000:09:00.0-6, high speed"
api.alsa.card.name = "USB Audio"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:Audio,1"
api.alsa.pcm.card = "3"
api.alsa.pcm.stream = "capture"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "14"
device.api = "alsa"
device.class = "sound"
device.icon_name = "audio-input-microphone"
device.id = "52"
device.profile.description = "Line Input"
device.profile.name = "HiFi: Line1: source"
device.routes = "1"
factory.name = "api.alsa.pcm.source"
media.class = "Audio/Source"
device.description = "USB Audio"
node.name = "alsa_input.usb-Generic_USB_Audio-00.HiFi__Line1__source"
node.nick = "USB Audio #1"
node.pause-on-idle = "false"
object.path = "alsa:acp:Audio:14:capture"
port.group = "capture"
priority.driver = "1728"
priority.session = "1728"
factory.id = "19"
clock.quantum-limit = "8192"
client.id = "47"
node.driver = "true"
node.loop.name = "data-loop.0"
library.name = "audioconvert/libspa-audioconvert"
object.id = "43"
object.serial = "66"
node.max-latency = "16384/48000"
api.alsa.period-size = "512"
api.alsa.period-num = "64"
api.alsa.headroom = "512"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "3"
api.alsa.split-enable = "true"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio3"
api.dbus.ReserveDevice1.Priority = "-20"
device.bus = "usb"
device.bus-id = "usb-Generic_USB_Audio-00"
device.bus_path = "pci-0000:09:00.0-usb-0:6:1.0"
device.enum.api = "udev"
device.name = "alsa_card.usb-Generic_USB_Audio-00"
device.nick = "USB Audio"
device.plugged.usec = "39411866"
device.product.id = "0x1b9b"
device.product.name = "USB Audio"
device.serial = "Generic_USB_Audio"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:02.1/0000:04:00.0/0000:05:0c.0/0000:09:00.0/usb1/1-6/1-6:1.0/sound/card3"
device.vendor.id = "0x0b05"
device.vendor.name = "ASUSTek Computer, Inc."
spa.object.id = "8"
device.string = "3"
Ports:
[In] Line1: Line Input (type: Line, priority: 100, availability group: Line - Input, available)
Active Port: [In] Line1
Formats:
pcm
Code:
# lsmod | grep snd
snd_seq_dummy 12288 0
snd_hrtimer 12288 1
snd_seq 135168 7 snd_seq_dummy
snd_hda_codec_hdmi 106496 2
snd_hda_intel 69632 2
snd_usb_audio 581632 5
snd_intel_dspcfg 45056 1 snd_hda_intel
snd_intel_sdw_acpi 16384 1 snd_intel_dspcfg
snd_usbmidi_lib 53248 1 snd_usb_audio
snd_hda_codec 229376 2 snd_hda_codec_hdmi,snd_hda_intel
snd_ump 40960 1 snd_usb_audio
snd_hda_core 151552 3 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec
snd_rawmidi 57344 2 snd_usbmidi_lib,snd_ump
snd_hwdep 20480 2 snd_usb_audio,snd_hda_codec
snd_seq_device 16384 3 snd_seq,snd_ump,snd_rawmidi
snd_pcm 221184 5 snd_hda_codec_hdmi,snd_hda_intel,snd_usb_audio,snd_hda_codec,snd_hda_core
snd_timer 57344 3 snd_seq,snd_hrtimer,snd_pcm
mc 98304 1 snd_usb_audio
snd 163840 28 snd_seq,snd_seq_device,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_usb_audio,snd_usbmidi_lib,snd_hda_codec,snd_timer,snd_ump,snd_pcm,snd_rawmidi
soundcore 16384 1 snd
Zuletzt bearbeitet:
