Hi Guten Tag,
ich kämpfe seit längerem mit diesem Problem: Anderer Thread
Deshalb habe ich den Driver Verifier gestartet, dieser verlangsamte meinen PC extremst und führte kurz nach der Anmeldung zu einem BSOD "DRIVER_VERIFIER_DETECTED_VIOLATION". Nachdem ich den Verifier im abgesicherten Modus wieder deaktiviert hatte, trat kein BSOD mehr auf und die Geschwindigkeit war normal.
Dann wollte ich in die Ereignisanzeige, kann diese aber im Windwos Startmenü nicht mehr finden.

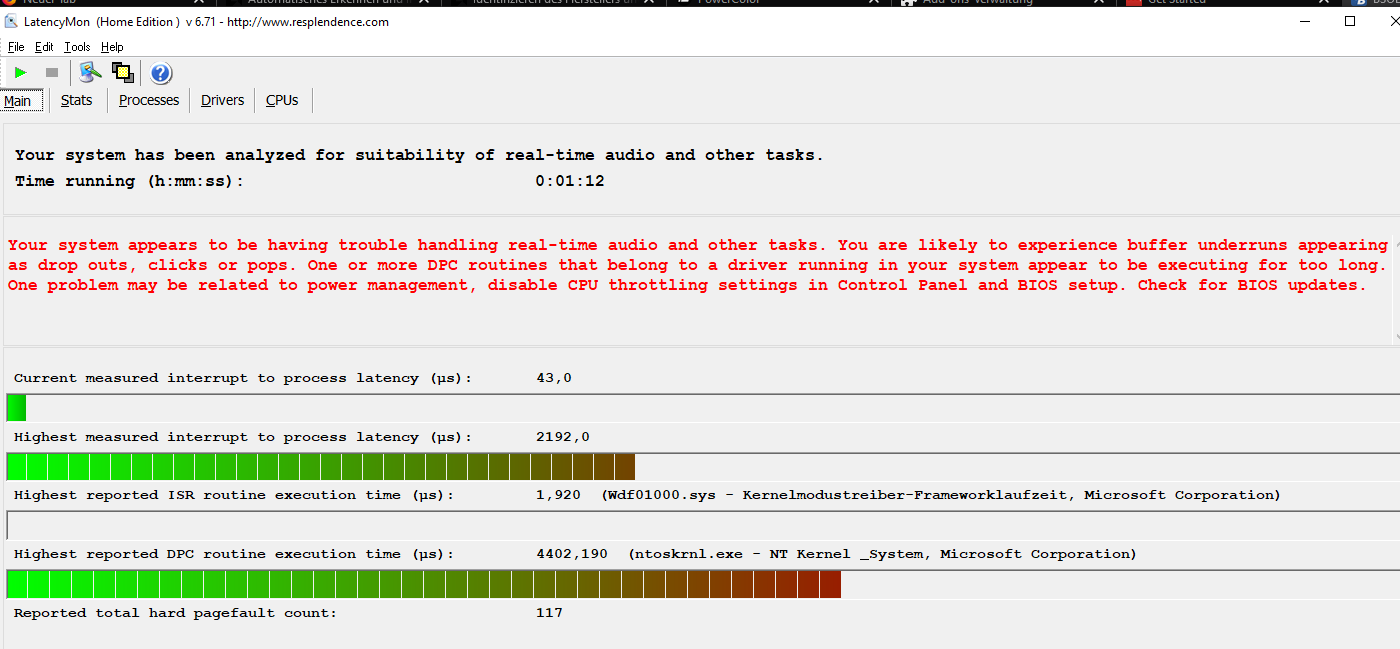

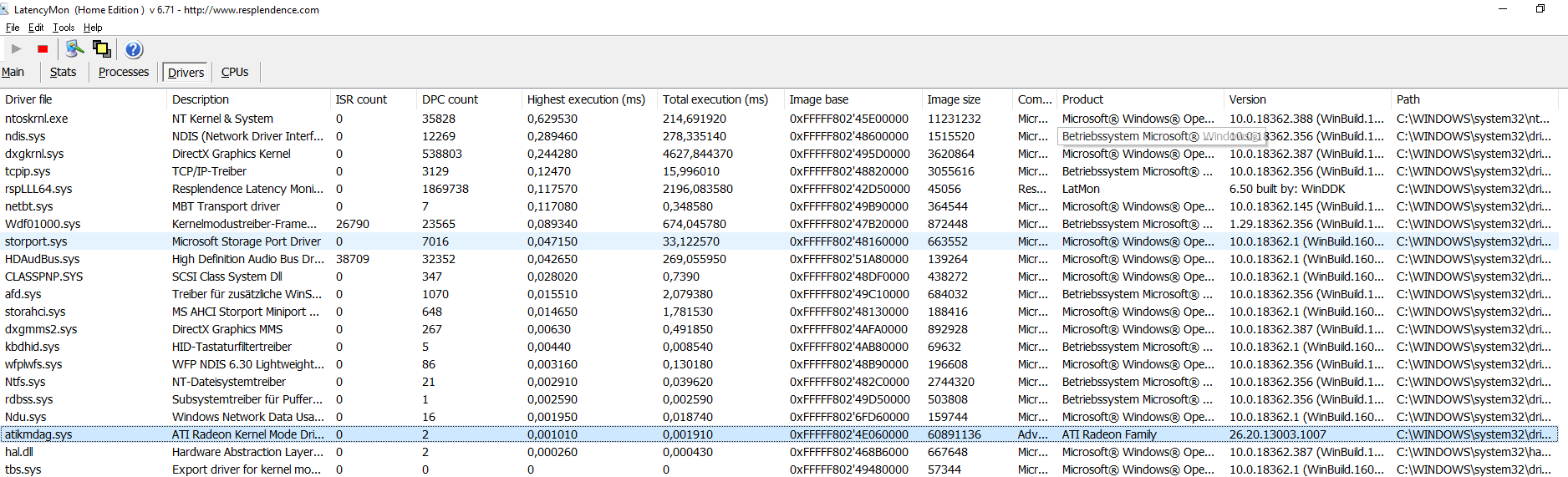

Außerdem ist mir aufgefallen, dass Storport.sys sehr viele Hard pagefaults erzeugt (ich weiß nicht was das bedeutet) habe dazu LatencyMon verwendet. Siehe Spoiler:

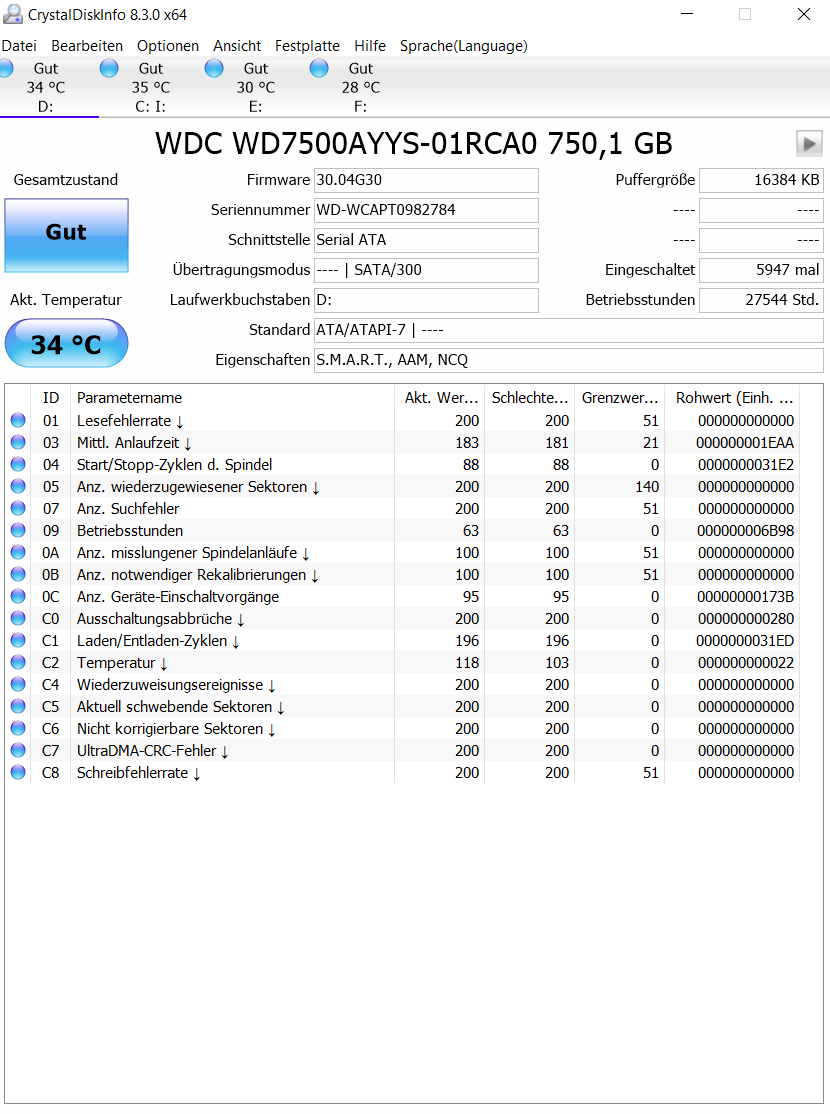

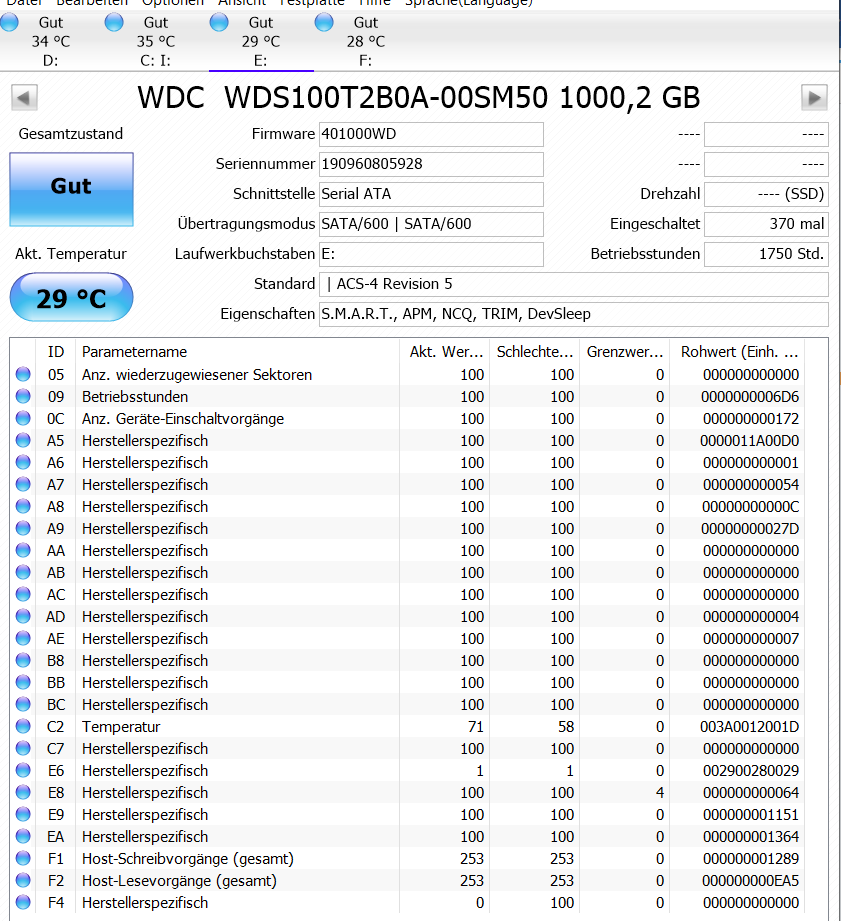

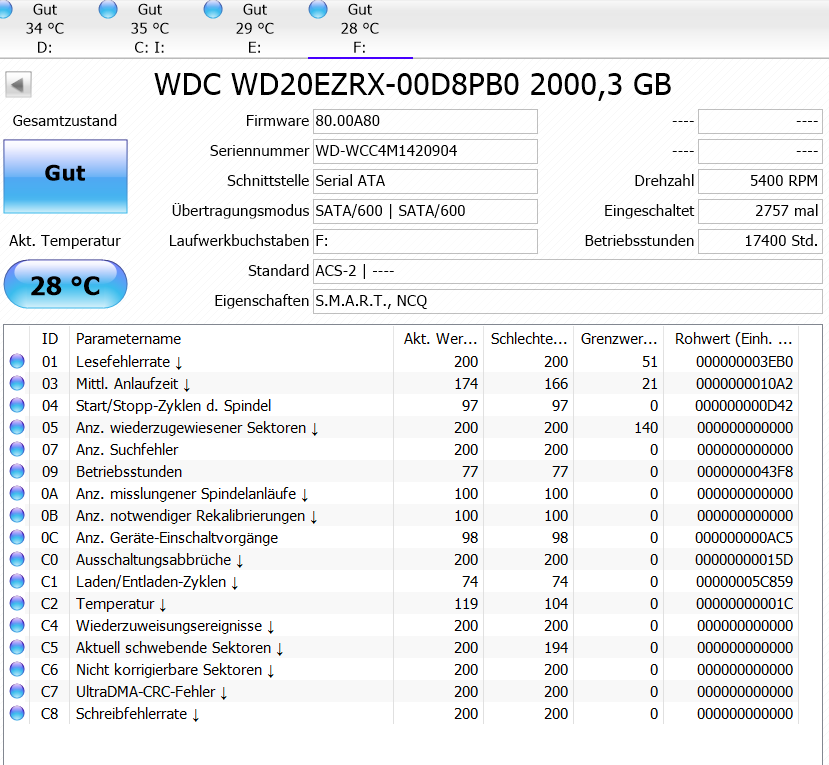

Der PC verhält sich einfach komisch, ich kann mir nicht vorstellen dass es an defekter Hardware liegt, alles ist neu außer 2 Festplatten, die sind aber nur für Daten das System liegt auf einer SSD.
Im Handyvideo zu sehen, wenn ich scrolle hängt der PC (siehe auch Mauszeiger) und Piepst und wenn ich den Balken schiebe läuft alles flüssig und piepst nicht.
ich kämpfe seit längerem mit diesem Problem: Anderer Thread
Deshalb habe ich den Driver Verifier gestartet, dieser verlangsamte meinen PC extremst und führte kurz nach der Anmeldung zu einem BSOD "DRIVER_VERIFIER_DETECTED_VIOLATION". Nachdem ich den Verifier im abgesicherten Modus wieder deaktiviert hatte, trat kein BSOD mehr auf und die Geschwindigkeit war normal.
Dann wollte ich in die Ereignisanzeige, kann diese aber im Windwos Startmenü nicht mehr finden.

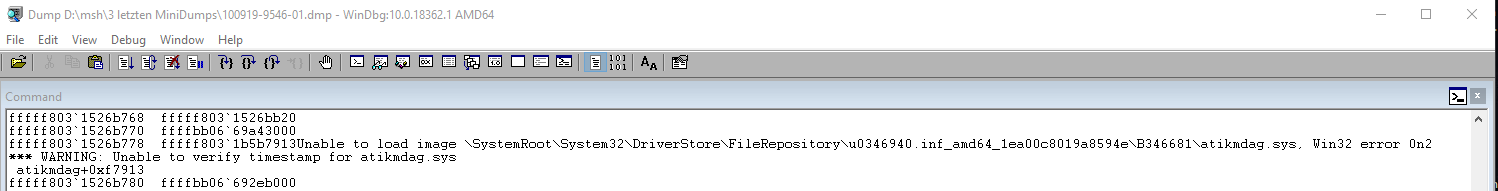

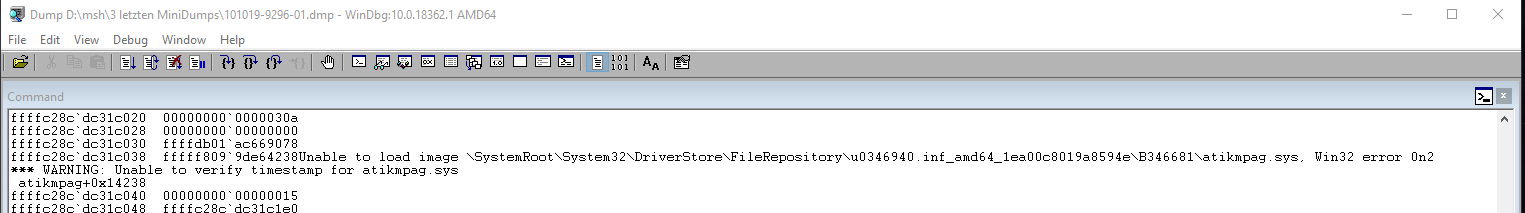

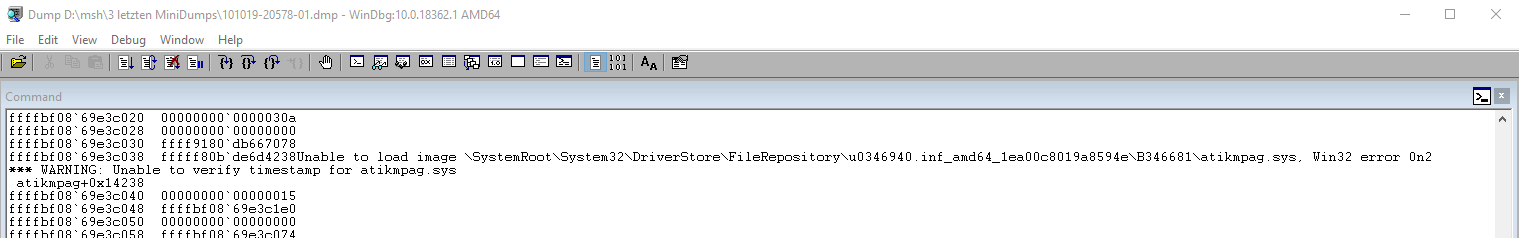

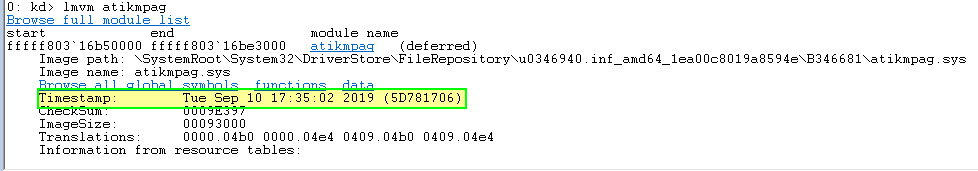

- also Frage 1. kann sich jemand mal die Minidumps ansehen um dem Grund näher zu kommen. (BluescreenView hab ich verwendet)
- u

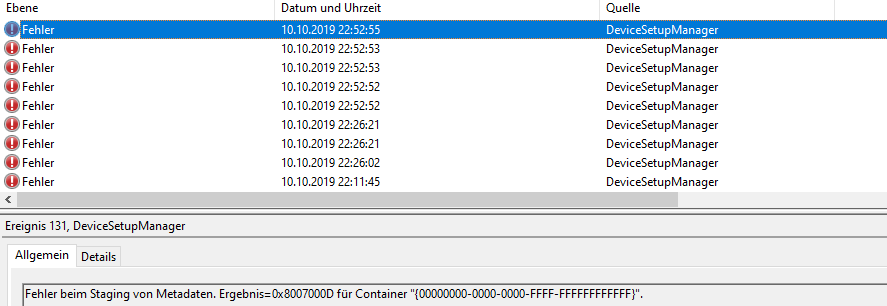

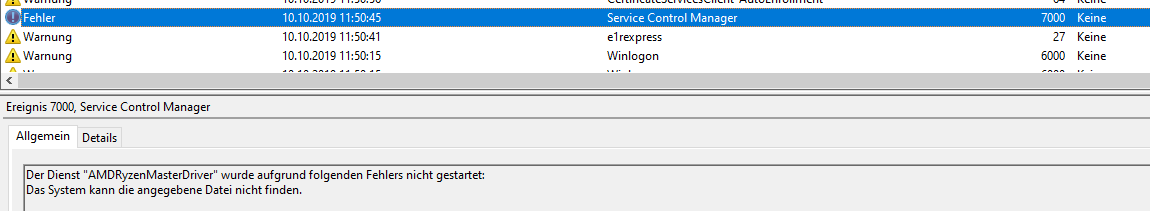

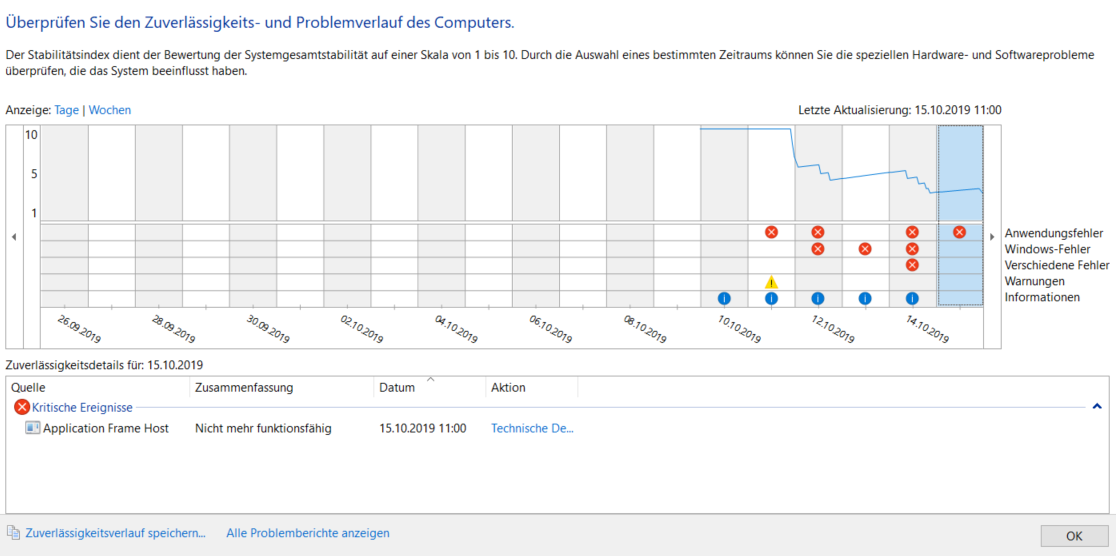

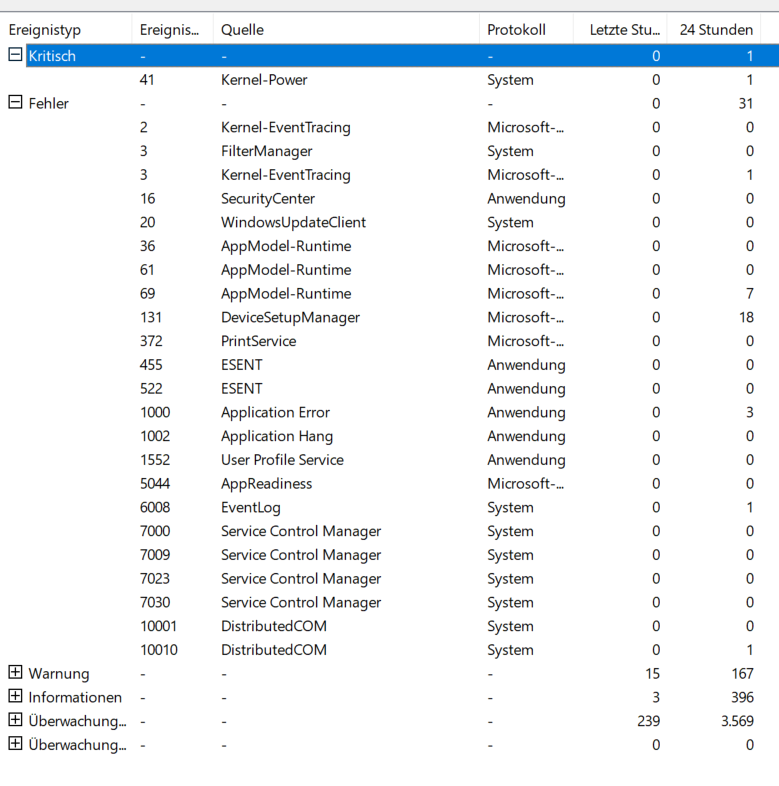

nd Frage 2.wie komm ich zu der Ereignisanzeige.(Habe erneut die Suche benutzt und es dann auch gefunden, anscheinend ist die Indezierung abgestürtzt oder zurückgesetzt worden.)

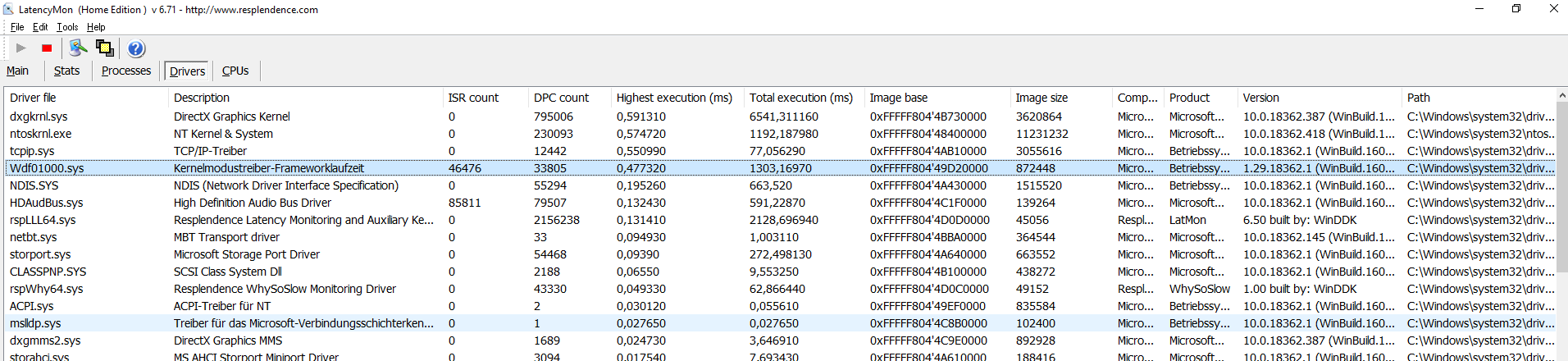

Außerdem ist mir aufgefallen, dass Storport.sys sehr viele Hard pagefaults erzeugt (ich weiß nicht was das bedeutet) habe dazu LatencyMon verwendet. Siehe Spoiler:
Hypano schrieb:Hi ich schreib hiernochmal, ich hab das Problem immer noch Grafikkarte kann ich ausschließen da ich jetzt eine neue habe.

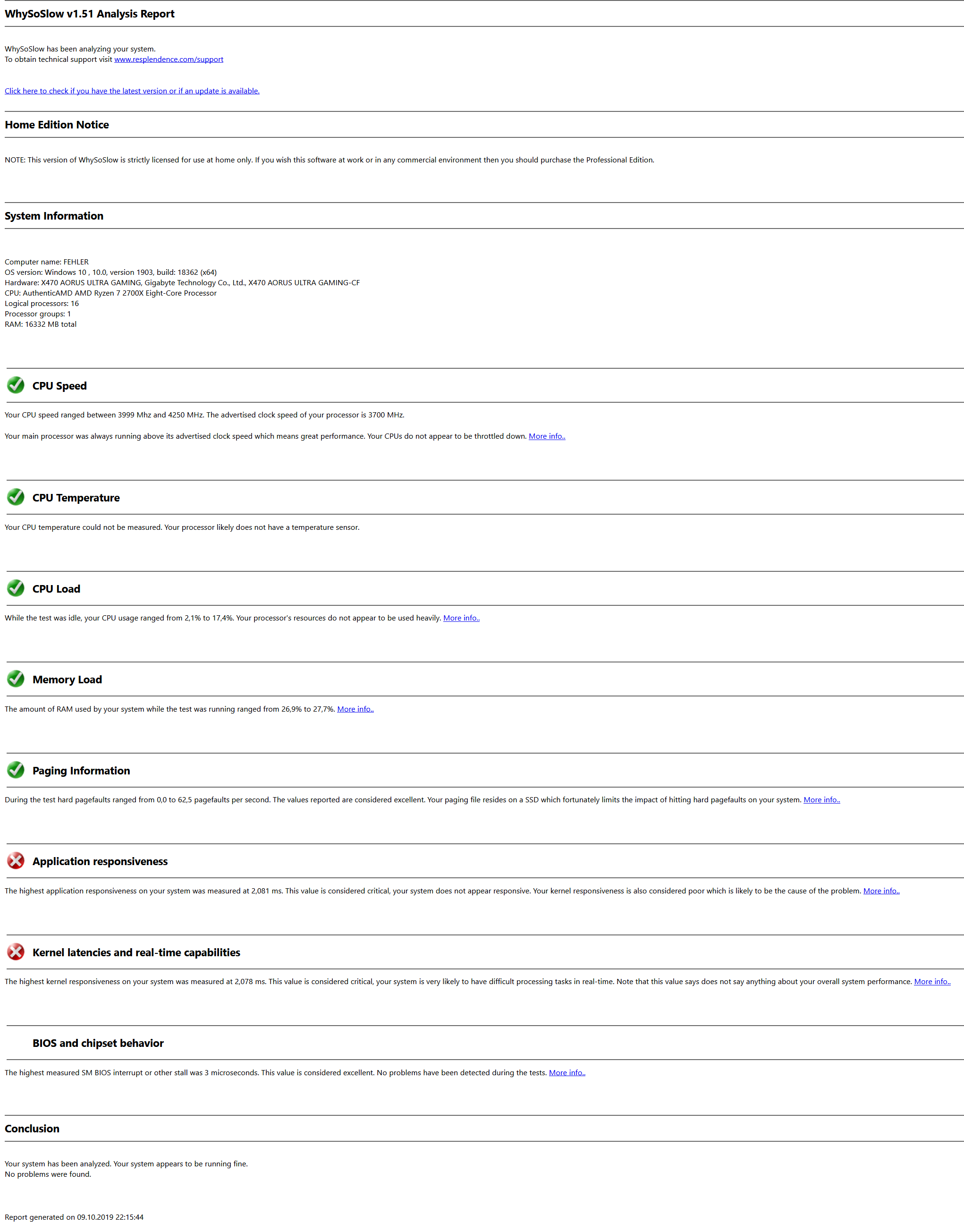

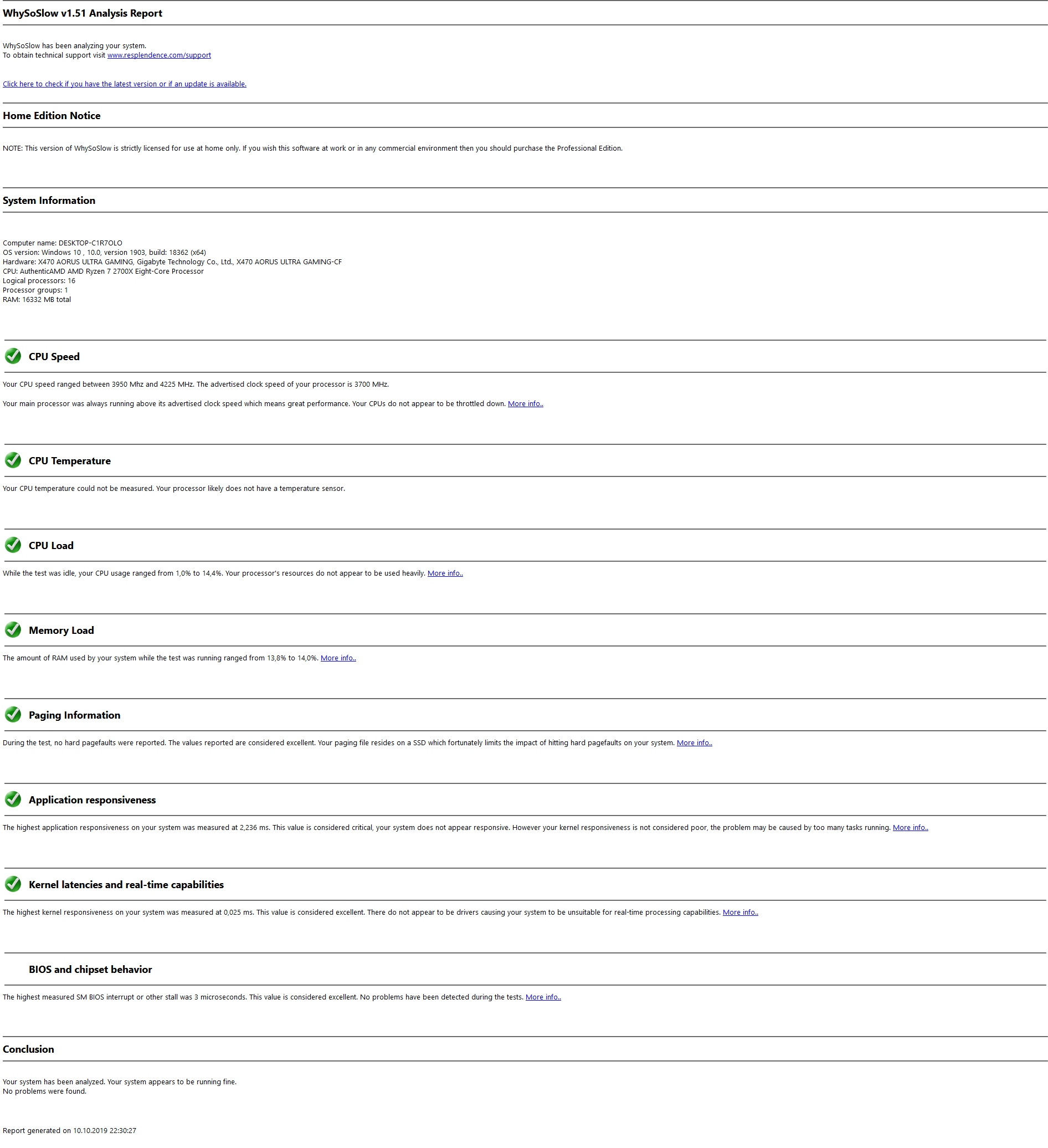

Ich habe mal die "WhySoSlow Analysis" durchgeführt. (Report weiter unten im Spoiler)
Können diese Ruckler mit dem zu hohen CPU Takt zu tun haben? Ich hab selber nichts overclocked - während des testes gabs aber auch keine Ruckler.
Oder kann es an der Kernelsache liegen?
Wenn ja was bedeutet das und was könnte ich ausprobieren?
Nachdem ichs nochmal durchlaufen lassen habe .. waren die beiden roten auch grün, aber vielleicht lags an einem "Schluckauf" den ich nicht mitbekommen habe.
_
CONCLUSION
_
Your system appears to be having trouble handling real-time audio and other tasks. You are likely to experience buffer underruns appearing as drop outs, clicks or pops. One or more DPC routines that belong to a driver running in your system appear to be executing for too long. Also one or more ISR routines that belong to a driver running in your system appear to be executing for too long. One problem may be related to power management, disable CPU throttling settings in Control Panel and BIOS setup. Check for BIOS updates.
LatencyMon has been analyzing your system for 0:01:57 (h:mm:ss) on all processors.
_
SYSTEM INFORMATION
_
Computer name: FEHLER
OS version: Windows 10 , 10.0, version 1903, build: 18362 (x64)
Hardware: X470 AORUS ULTRA GAMING, Gigabyte Technology Co., Ltd., X470 AORUS ULTRA GAMING-CF
CPU: AuthenticAMD AMD Ryzen 7 2700X Eight-Core Processor
Logical processors: 16
Processor groups: 1
RAM: 16332 MB total
_
CPU SPEED
_
Reported CPU speed: 370 MHz
Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.
WARNING: the CPU speed that was measured is only a fraction of the CPU speed reported. Your CPUs may be throttled back due to variable speed settings and thermal issues. It is suggested that you run a utility which reports your actual CPU frequency and temperature.
_
MEASURED INTERRUPT TO USER PROCESS LATENCIES
_
The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.
Highest measured interrupt to process latency (µs): 3014,50
Average measured interrupt to process latency (µs): 5,196706
Highest measured interrupt to DPC latency (µs): 3011,60
Average measured interrupt to DPC latency (µs): 1,888161
_
REPORTED ISRs
_
Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.
Highest ISR routine execution time (µs): 2230,90
Driver with highest ISR routine execution time: Wdf01000.sys - Kernelmodustreiber-Frameworklaufzeit, Microsoft Corporation
Highest reported total ISR routine time (%): 0,000454
Driver with highest ISR total time: HDAudBus.sys - High Definition Audio Bus Driver, Microsoft Corporation
Total time spent in ISRs (%) 0,000730
ISR count (execution time <250 µs): 1487
ISR count (execution time 250-500 µs): 0
ISR count (execution time 500-999 µs): 0
ISR count (execution time 1000-1999 µs): 0
ISR count (execution time 2000-3999 µs): 4
ISR count (execution time >=4000 µs): 0
_
REPORTED DPCs
_
DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.
Highest DPC routine execution time (µs): 2918,220
Driver with highest DPC routine execution time: ntoskrnl.exe - NT Kernel & System, Microsoft Corporation
Highest reported total DPC routine time (%): 0,022986
Driver with highest DPC total execution time: storport.sys - Microsoft Storage Port Driver, Microsoft Corporation
Total time spent in DPCs (%) 0,039798
DPC count (execution time <250 µs): 105271
DPC count (execution time 250-500 µs): 0
DPC count (execution time 500-999 µs): 44
DPC count (execution time 1000-1999 µs): 37
DPC count (execution time 2000-3999 µs): 54
DPC count (execution time >=4000 µs): 0
_
REPORTED HARD PAGEFAULTS
_
Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.
NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.
Process with highest pagefault count: microsoft.photos.exe
Total number of hard pagefaults 2444
Hard pagefault count of hardest hit process: 2239
Number of processes hit: 12
_
PER CPU DATA
_
CPU 0 Interrupt cycle time (s): 4,339756
CPU 0 ISR highest execution time (µs): 2230,90
CPU 0 ISR total execution time (s): 0,013535
CPU 0 ISR count: 1127
CPU 0 DPC highest execution time (µs): 2241,510
CPU 0 DPC total execution time (s): 0,218534
CPU 0 DPC count: 36509
_
CPU 1 Interrupt cycle time (s): 2,877821
CPU 1 ISR highest execution time (µs): 2,760
CPU 1 ISR total execution time (s): 0,000023
CPU 1 ISR count: 10
CPU 1 DPC highest execution time (µs): 73,20
CPU 1 DPC total execution time (s): 0,004495
CPU 1 DPC count: 1437
_
CPU 2 Interrupt cycle time (s): 2,394679
CPU 2 ISR highest execution time (µs): 0,0
CPU 2 ISR total execution time (s): 0,0
CPU 2 ISR count: 0
CPU 2 DPC highest execution time (µs): 2132,90
CPU 2 DPC total execution time (s): 0,039744
CPU 2 DPC count: 8112
_
CPU 3 Interrupt cycle time (s): 2,750050
CPU 3 ISR highest execution time (µs): 0,0
CPU 3 ISR total execution time (s): 0,0
CPU 3 ISR count: 0
CPU 3 DPC highest execution time (µs): 2179,840
CPU 3 DPC total execution time (s): 0,011657
CPU 3 DPC count: 2624
_
CPU 4 Interrupt cycle time (s): 2,528835
CPU 4 ISR highest execution time (µs): 0,0
CPU 4 ISR total execution time (s): 0,0
CPU 4 ISR count: 0
CPU 4 DPC highest execution time (µs): 2918,220
CPU 4 DPC total execution time (s): 0,075235
CPU 4 DPC count: 13951
_
CPU 5 Interrupt cycle time (s): 2,735083
CPU 5 ISR highest execution time (µs): 0,0
CPU 5 ISR total execution time (s): 0,0
CPU 5 ISR count: 0
CPU 5 DPC highest execution time (µs): 22,860
CPU 5 DPC total execution time (s): 0,001753
CPU 5 DPC count: 849
_
CPU 6 Interrupt cycle time (s): 2,548780
CPU 6 ISR highest execution time (µs): 0,0
CPU 6 ISR total execution time (s): 0,0
CPU 6 ISR count: 0
CPU 6 DPC highest execution time (µs): 36,920
CPU 6 DPC total execution time (s): 0,017292
CPU 6 DPC count: 3283
_
CPU 7 Interrupt cycle time (s): 2,622427
CPU 7 ISR highest execution time (µs): 0,0
CPU 7 ISR total execution time (s): 0,0
CPU 7 ISR count: 0
CPU 7 DPC highest execution time (µs): 11,580
CPU 7 DPC total execution time (s): 0,000078
CPU 7 DPC count: 11
_
CPU 8 Interrupt cycle time (s): 3,038954
CPU 8 ISR highest execution time (µs): 0,0
CPU 8 ISR total execution time (s): 0,0
CPU 8 ISR count: 0
CPU 8 DPC highest execution time (µs): 2214,320
CPU 8 DPC total execution time (s): 0,039748
CPU 8 DPC count: 4969
_
CPU 9 Interrupt cycle time (s): 2,748548
CPU 9 ISR highest execution time (µs): 0,0
CPU 9 ISR total execution time (s): 0,0
CPU 9 ISR count: 0
CPU 9 DPC highest execution time (µs): 12,770
CPU 9 DPC total execution time (s): 0,000083
CPU 9 DPC count: 32
_
CPU 10 Interrupt cycle time (s): 3,154326
CPU 10 ISR highest execution time (µs): 0,0
CPU 10 ISR total execution time (s): 0,0
CPU 10 ISR count: 0
CPU 10 DPC highest execution time (µs): 2642,20
CPU 10 DPC total execution time (s): 0,078685
CPU 10 DPC count: 9901
_
CPU 11 Interrupt cycle time (s): 2,841686
CPU 11 ISR highest execution time (µs): 0,0
CPU 11 ISR total execution time (s): 0,0
CPU 11 ISR count: 0
CPU 11 DPC highest execution time (µs): 32,30
CPU 11 DPC total execution time (s): 0,000063
CPU 11 DPC count: 25
_
CPU 12 Interrupt cycle time (s): 3,461195
CPU 12 ISR highest execution time (µs): 1,440
CPU 12 ISR total execution time (s): 0,000153
CPU 12 ISR count: 314
CPU 12 DPC highest execution time (µs): 2232,620
CPU 12 DPC total execution time (s): 0,204934
CPU 12 DPC count: 17909
_
CPU 13 Interrupt cycle time (s): 2,752446
CPU 13 ISR highest execution time (µs): 0,790
CPU 13 ISR total execution time (s): 0,000005
CPU 13 ISR count: 10
CPU 13 DPC highest execution time (µs): 15,810
CPU 13 DPC total execution time (s): 0,000115
CPU 13 DPC count: 46
_
CPU 14 Interrupt cycle time (s): 3,061405
CPU 14 ISR highest execution time (µs): 1,150
CPU 14 ISR total execution time (s): 0,000007
CPU 14 ISR count: 9
CPU 14 DPC highest execution time (µs): 2203,550
CPU 14 DPC total execution time (s): 0,048911
CPU 14 DPC count: 5246
_
CPU 15 Interrupt cycle time (s): 2,813934
CPU 15 ISR highest execution time (µs): 1,070
CPU 15 ISR total execution time (s): 0,000013
CPU 15 ISR count: 21
CPU 15 DPC highest execution time (µs): 2139,150
CPU 15 DPC total execution time (s): 0,007075
CPU 15 DPC count: 502
_
Im Handyvideo zu sehen, wenn ich scrolle hängt der PC (siehe auch Mauszeiger) und Piepst und wenn ich den Balken schiebe läuft alles flüssig und piepst nicht.
