MS HD Audio Treiber verhindert installation von Realtek Audiotreiber
Hallo,
ich nutze ein System mit Windows 10 Pro, einer GTX 660 und nem AsRoch h97m Pro4 (alles andere ist unwichtig), ich würde gerne meine 3,5 mm Klinkenanschlüsse, bzw. mein Headsetmikrofon nutzen, allerdings gibt der HD Audiotreiber von MS nur Sound über meinen Monitor aus und der hat kein 3,5 mm Input, die am Mainboard und am Gehäuse werden deaktiviert und der Realtek Treiber deinstalliert.
Wie installiere ich den Realtek Treiber und wie deinstalliere ich den HD Audio Treiber von Microsoft, bzw. wie stelle ich ihn so ein, das ich den MB Sound nutzen kann.
Normalerweise kann sich der Realtek Treiber problemlos über den von MS installieren. Kann es vielleicht sein das der OnBoard Audiochip im BIOS deaktiviert ist?
Ohne dem Realtek Treiber taucht der OnBoard auch nur als HD Audio auf (weil der generische MS Treiber ihn erkennt). Allerdings vermute ich das es sich bei dem im Bild vom TE nicht um den OnBoard sondern evtl. um was anderes handelt.
Normalerweise kann sich der Realtek Treiber problemlos über den von MS installieren. Kann es vielleicht sein das der OnBoard Audiochip im BIOS deaktiviert ist?
Das er deaktiviert ist würdest du nur im Bios sehen... und gerade weil im Gerätemanager nichts da ist würd ich darauf tippen. Ansonsten ist wohl was anderes faul, kam auch schon vor das der Chip sich einfach verabschiedet hat und defekt war. Passiert selten, aber kommt vor.
Im Normalfall gibt es irgendwo eine Seite bei der alle OnBoard Komponenten aufgelistet sind um sie zu Konfigurieren, also LAN, SATA und eben auch Audio.
Offensichtlich liegt es nicht am Treiber sondern am Soundchip oder am Bios, darum habe ich mal ne nachricht an AAsRock geschrieben, hierbei wurden meine gesamten bios infos an die geschickt (ohne meine Einverständnis-Erklärung), auf jeden Fall veröffentliche ich sie hier für eure Fehlersuche, den komischerweise werden die Eingesteckten Audiogeräte im Bios noch erkannt (siehe Markierten Ausschnitt), woanders aber nicht.

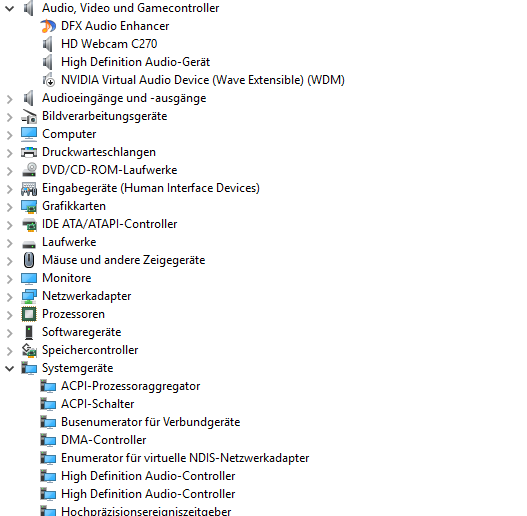

Ich habe hier ein screenshot von etwas wo ich nicht weiß ob es eine ursache für mein problem sein könnte:
Und hier das Bios (ich habe noch andere möglicherweise Wesentliche dinge markiert):
