Windows 10 friert ständig ein nach Wechsel auf Samsung 850 EVO 250 GB

[headcrab]

Hallo Leute,

bin ganz neu hier und hab auch schon mein erstes Problem.
Gestern hab ich meine erste SSD bekommen, die 850 Evo mit 250GB. Auf dem Computer war schon Windows 10 Pro 64 Bit installiert, zunächst habe ich mit dem Data Migration Tool vom Samsung die Daten von der HDD auf die SSD geklont. Hat auch einwandfrei funktioniert, jedoch frierte Windows nach kurzer Zeit plötzlich ein. Habe mir gedacht dass das vielleicht durch das Klonen zustande gekommen ist, also noch einmal Clean Install auf die SSD gemacht, doch das selbe Problem besteht immer noch.
Natürlich habe ich in den Foren schon alles durchsucht, bin jedoch zu keiner Lösung gekommen.
Vielleicht ist das Netzteil zu schwach, vielleicht ist es die Grafikkarte, vielleicht der Arbeitsspeicher, oder einfach irgendwelche Fehleinstellungen im BIOS (Bios zu alt und keine SSD-Unterstützung??) oder in Windows selbst. Leider habe ich einfach nicht besonders viel Ahnung davon und bitte deshalb um Hilfe.

Habe euch mal die Specs aufgelistet:

Windows Version 6.2 (Build 9200)
9.11.10586.0
12288 MB
AMD Phenom(tm) II X4 965 Processor
3445,1 MHz
Realtek Digital Output(Optical) |
Realtek Digital Output (Realtek |

AMD Radeon HD 7800 Series | AMD Radeon HD 7800 Series | AMD Radeon HD 7800 Series | AMD Radeon HD 7800 Series | AMD Radeon HD 7800 Series | AMD Radeon HD 7800 Series
1x; SyncMaster P2370(G)/P23700(G),Magic P2370G(Digital) |
1920 X 1080 - 32 bit
Network Present
TP-LINK 300Mbps Wireless N Adapter | Realtek PCIe GBE Family Controller | Microsoft Wi-Fi Direct Virtual Adapter
1x (E: | ) E: TSSTcorpCDDVDW SH-S223C
COM Ports NOT Present. LPT1
3 Button Wheel Mouse Present
C: 232,3GB
C: 202,3GB
8 host controllers.
Not Detected
American Megatrends Inc.
System Product Name
OnLine
| |
Mitteleuropäische Zeit
No Battery
ASUSTeK Computer INC. M4A88TD-M EVO
192.168.2.101 |
60-E3-27-59-28-F9
DESKTOP-T7ENFG8
1801

Würde mich über eure Hilfe freuen!



[Hatsune_Miku]

Hast du mal die SSD mit Crystaldiskinfo gecheckt ?`Auch bei neuer HW kann es gelegentlich mal wieder zu defekten kommen.



[AdoK]

Vor dem Clonen ist kontrolliert worden ob AHCI im UEFI/ BIOS aktiv?

Welcher SATA-Treiber wird verwendet, der AMD-Chipsatz-Treiber und wenn ja, ist der aktuell?



[Sterntaste]

ein frischeres BIOS als die 1801 gibt es für Dein Board nicht. NT zu schwach würde ich ausklammern, da eine SSD so wenig Strom benötigt, dass die keinen Faktor darstellen sollte. Setz mal das BIOS zurück, schaue auf die Treiber, ob man da von den Chipsatzherstellern neuer versorgt werden. Ist Magician von Samsung drauf? Damit könnte man auch rausfinden, ob die SSD überhaupt in Ordnung ist.



[headcrab]

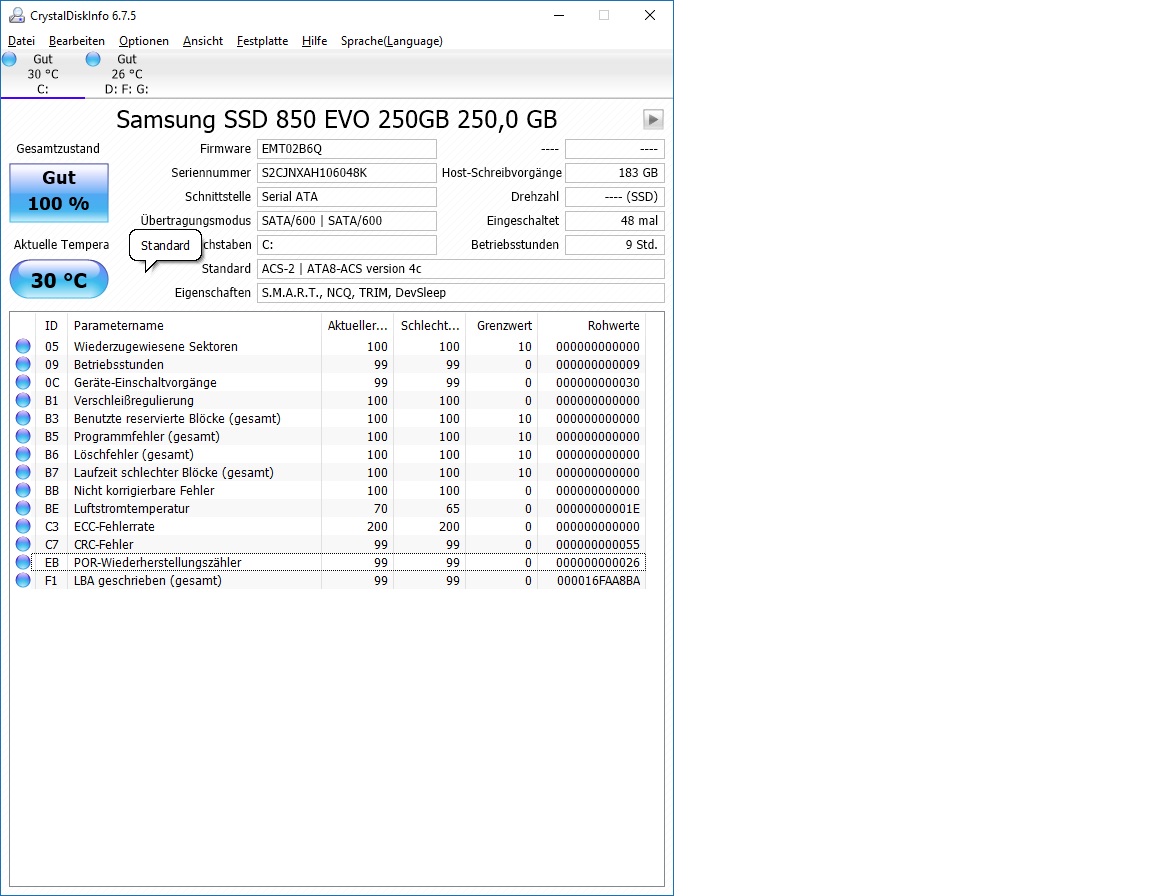

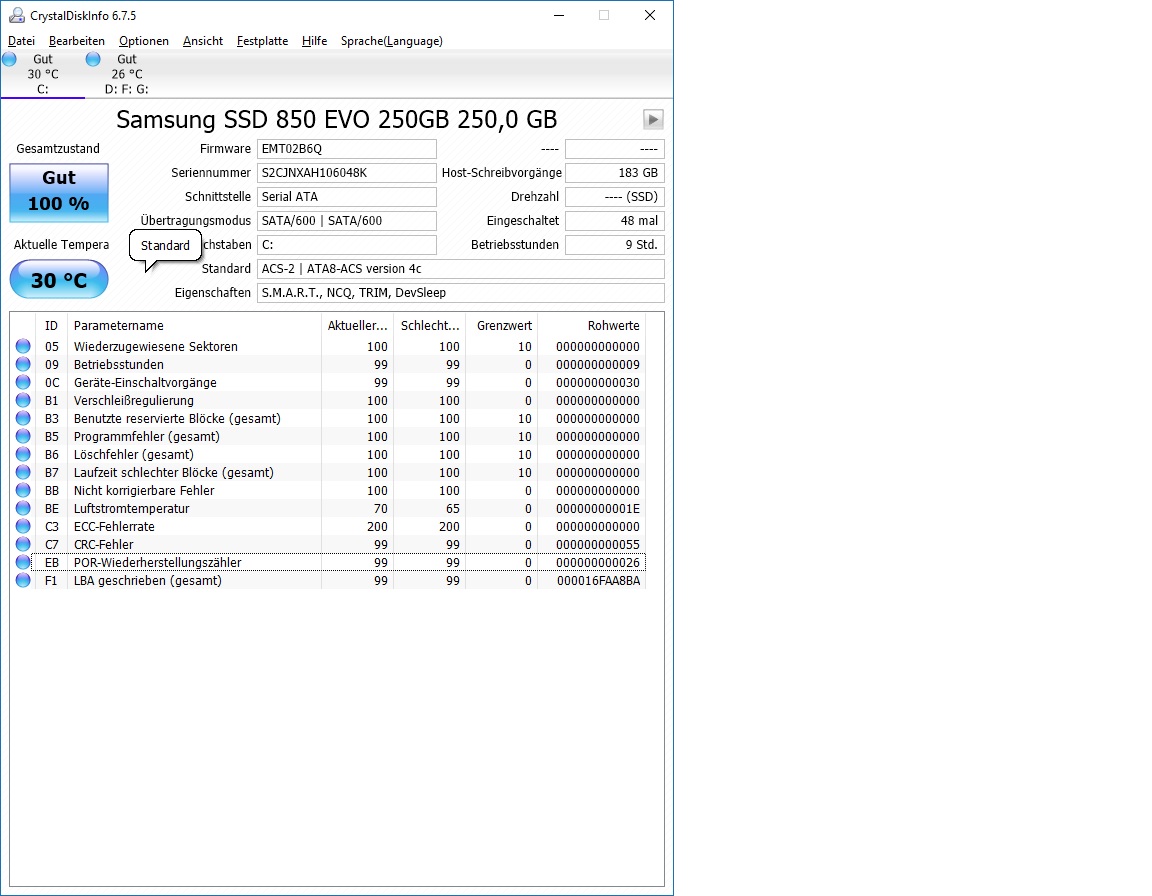

Zustand Gut (100%), Temperatur 31 Grad

Ergänzung (18. Februar 2016)

Würde mir jetzt den 15.7.1 Chipset-Treiber von AMD herunterladen, wenn das der richtige ist.
Das mit dem AHCI hab ich eingestellt bevor ich die SSD installiert habe, ändert sich das wieder bei einer Neuinstallation?
Wie setze ich das BIOS zurück? Ja, Magician sagt mir dass mit der SSD alles in Ordnung ist



[AdoK]

15.12 ist der aktuelle Chipsatz-Treiber, siehe https://www.computerbase.de/downloads/treiber/mainboards/amd-chipsatztreiber/

Wenn zuvor AHCI im UEFI/ BIOS eingestellt wurde, so bleibt es auch so eingestellt. Ausnahme wäre du stellst es selber um oder würde durch ein BIOS-/ CMOS-Reset zurückgesetzt werden.

Das UEFI/ BIOS setzt du auf Werkseinstellungen zurück via Jumper oder Entfernen der Batterie. Siehe auch Handbuch vom Motherboard.

Danach ggfs. die persönlichen Einstellungen wie z.B. Datum/ Uhrzeit, Bootoptionen und ggfs. AHCI wieder einstellen.



[HasseLadebalken]

"C1E" macht gerne Probleme, diesen Energiesparmodus kann man einfach deaktivieren in den CPU-Features vom Bios.
Braucht im übrigen eh kein Mensch, Intel hat Speedstep (EIST) und AMD eben Cool'n'Queit


Gruss HasseLadebalken



[headcrab]

@ Adok, habe deinen aufgelisteten Treiber installiert

@HasseLadebalken C1E Support habe ich deaktiviert.

Gucke jetzt ob der PC wieder einfriert, wenn ja, werde ich das mit dem Entfernen der Batterie mal versuchen.

Vielen Dank schon mal, hier wird einem wirklich schnell geholfen!

Ergänzung (18. Februar 2016)

Habs nun mit Jumper zurückgesetzt (von Pin 1-2 auf 2-3 und wieder zurück), im BIOS wieder auf AHCI umgestellt und die Bootreihenfolge angepasst, jetzt kommt nur noch ein Bluescreen mit "inaccessible boot Device", obwohl die Reihenfolge richtig ist. Und nun?



[Robo32]

Falls es nochmal passiert, poste hier aller Reiter aus CPUz.



[headcrab]

Würde ich gerne machen, wenn ich ins Windows reinkäme

hat komischerweise funktioniert, nachdem ich auf IDE umgeschaltet habe



[Robo32]

Dann starte von der alten Platte und überprüfe die SSD mit CrystalDiskInfo.



[headcrab]
