Hallo Freunde,
Hallo nfszocker,

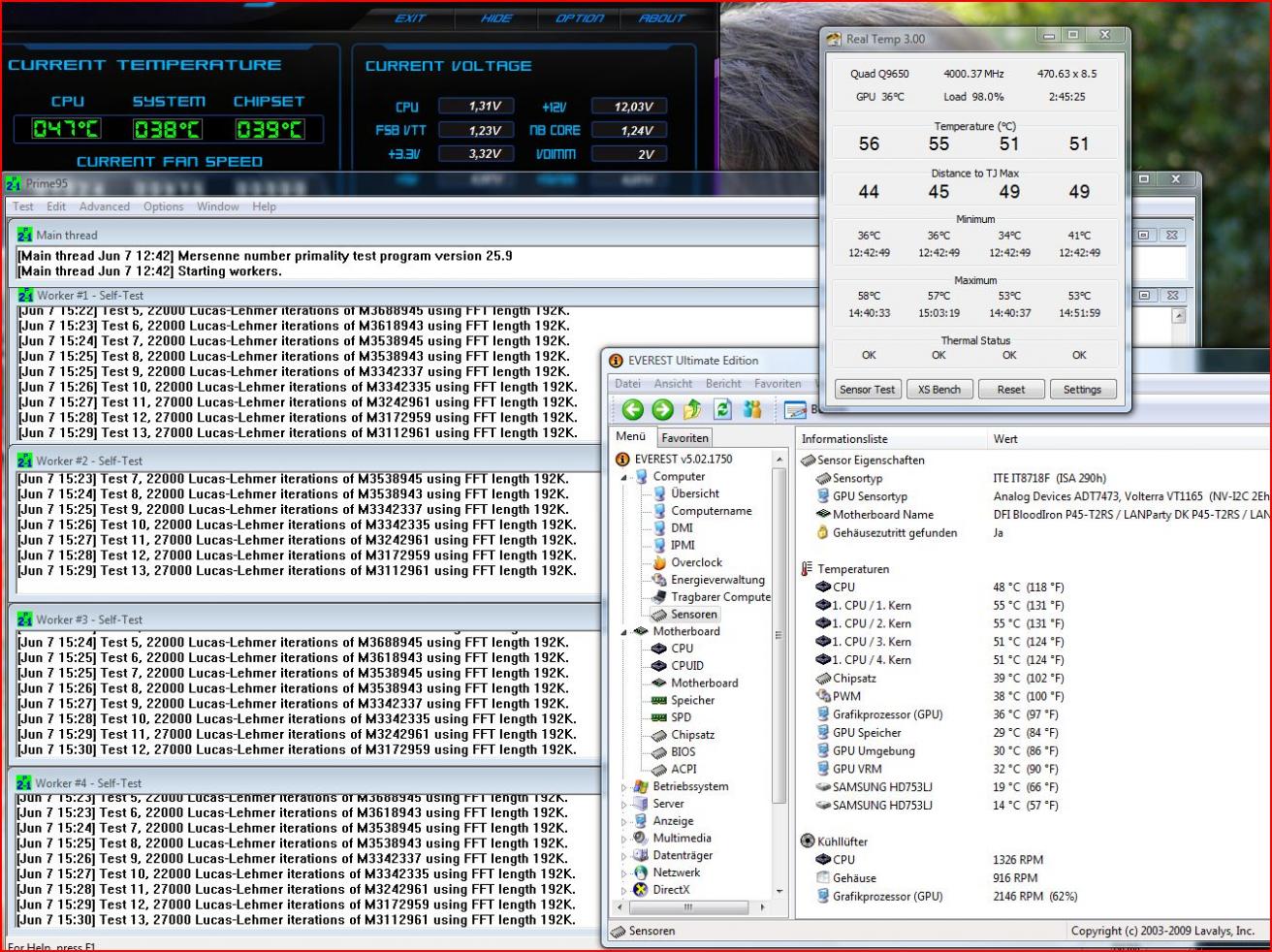

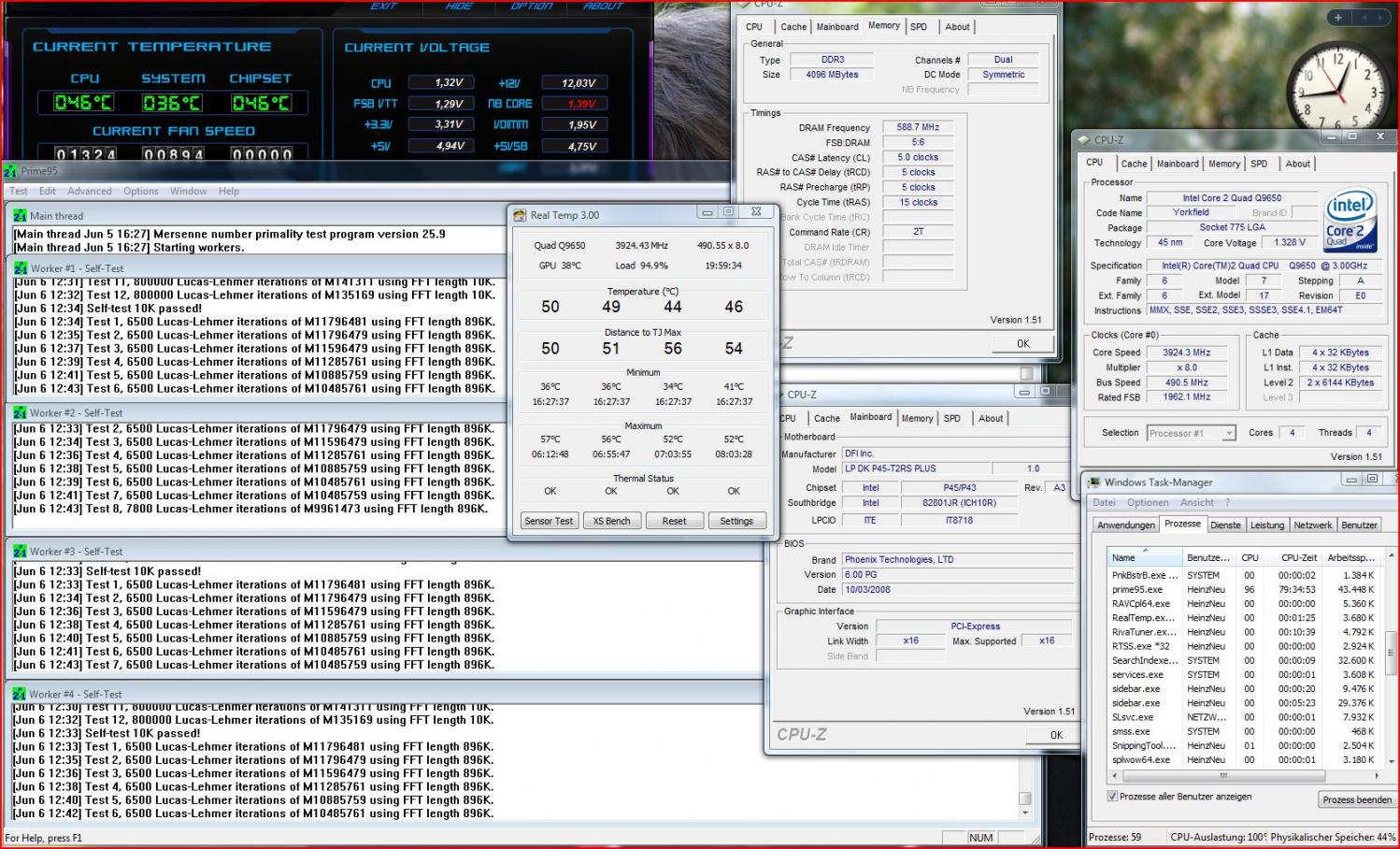

wie versprochen der Screenshot und die BIOS-Settings:
BIOS-Settings des DFI LANPARTY DK P45-T2RS Plus
BIOS v. 03.10.2008-D45PDA03
CPU Feature Page
Thermal Management Control................Enabled
PPM (EIST) Mode............................Enabled
Limit CPUID MaxVal........................Disabled
CIE Function..............................Enabled
Execute Disable Bit.......................Disabled
Virtualization Technology.................Disabled
Core Multi-Processing.....................Enabled
Main BIOS Page
Exit Setup Shutdown......................Mode 2
Shutdown after AC loss....................Enabled
AC Shutdown free..........................Enabled
O.C. Fail Retry Counter...................1
O.C. Fail CMOS Reload.....................Disabled
CPU Clock Ratio........................... 8 x
CPU N/2 Ratio.............................Disabled
CPU Clock.................................490
Boot Up Clock.............................360
CPU Clock Amplitude....................... 800mV
CPU Clock0 Skew........................... 100ps
CPU Clock0 Skew........................... 100ps
DRAM Speed................................333/800
PCIE Clock................................100MHz
CPU Spread Spectrum.......................Disabled
PCIE Spread Spectrum......................Disabled
Voltage Setting Page
CPU VID Control ....................... +1.00mV
DRAM Voltage Control......................1,95V
SB Core/CPU PLL Voltage...................1.55V
NB Core Voltage...........................1.43250V
CPU VTT Voltage...........................1.33V
VCore Droop Control.......................Enabled
Clockgen Voltage Control..................3.45V
[
GTL+ Buffers Strength .................... Strong]
CPU GTL 0/2 REF Volt......................0.67X
CPU GTL 1/3 REF Volt......................0.67X
North Bridge GTL 0 REF Volt ................0.67X
[
North Bridge GTL 1 REF Volt ................0.67X]
FSB Vref.................................. Auto
DRAM Timing Page
Enhance Data Transmitting.................Fast
Enhance Addressing........................Fast
T2 Dispatch...............................Disabled
Clock Setting Fine Delay..................siehe die Liste unten.
Flex Memory Mode..........................Auto
CAS Latency Time (tCL)....................5
RAS# to CAS# Delay (tRCD).................5
RAS# Precharge (tRP)......................5
Precharge Delay (tRAS)....................15
All Precharge to Act......................6
REF to ACT Delay (tRFC)...................54
Performance Level.........................8
Read Delay Phase Adjust...................Auto
MCH ODT Latency...........................Auto
Write to PRE Delay (tWR)..................Auto
Rank Write to Read (tWTR).................Auto
ACT to ACT Delay (tRRD)...................Auto
Read to Write Delay (tRDWR)...............Auto
Ranks Write to Write (tWRWR)..............Auto
Ranks Write to Read (tWRRD)...............Auto
Read CAS# Precharge (tRTP)................Auto
ALL PRE to Refresh........................Auto
Read Delay Phase Adjust Page
Channel 1 Phase 0 Pull-In.................Auto
Channel 1 Phase 1 Pull-In.................Auto
Channel 1 Phase 2 Pull-In.................Auto
Channel 1 Phase 3 Pull-In.................Auto
Channel 1 Phase 4 Pull-In.................Auto
Channel 2 Phase 0 Pull-In.................Auto
Channel 2 Phase 1 Pull-In.................Auto
Channel 2 Phase 2 Pull-In.................Auto
Channel 2 Phase 3 Pull-In.................Auto
Channel 2 Phase 4 Pull-In.................Auto
Clock Setting Fine Delay Page
DLL and RCOMP Settings .................ByMenu
Ch1 DRAM Default Skew.....................Model 3
Ch2 DRAM Default Skew.....................Model 3
RCOMP Setting.............................Model 1
Fine Delay Step Degree....................70ps
Ch1 Clock Crossing Setting................Aggressive
DIMM 1 Clock fine delay...................Current 1924ps
DIMM 2 Clock fine delay...................Current 1924ps
Ch 1 Control0 fine delay..................Current 194ps
Ch 1 Control1 fine delay..................Current 194ps
Ch 1 Control2 fine delay..................Current 110ps
Ch 1 Control3 fine delay..................Current 96ps
Ch 1 Command fine delay...................Current 134ps
Ch2 Clock Crossing Setting................Nominal
DIMM 3 Clock fine delay...................Current 1924ps
DIMM 4 Clock fine delay...................Current 1882ps
Ch 2 Control0 fine delay..................Current 152ps
Ch 2 Control1 fine delay..................Current 152ps
Ch 2 Control2 fine delay..................Current 70ps
Ch 2 Control3 fine delay..................Current 56ps
Ch 2 Command fine delay...................Current 152ps
Ch1Ch2 CommonClock Setting................Auto
Ch1 RDCAS GNT-Chip Delay..................Auto
Ch1 WRCAS GNT-Chip Delay..................Auto
Ch1 Command to CS Delay...................Auto
Ch2 RDCAS GNT-Chip Delay..................Auto
Ch2 WRCAS GNT-Chip Delay..................Auto
Ch2 Command to CS Delay...................Auto
Die in Klammern gesetzten Optionen GTL+Buffers Strong sowie NB GTL 0 REF Volt, NB GTL 1 REF Volt. sind nicht in diesem BIOS nicht vorhanden! Erst in späteren ab Dez. 08.
Mir ist es nach wie vor nicht gelungen, die tRFEs über das BIOS auf 16.838T zu setzen. Daher habe ich mir mit Memset 4 geholfen. Wer hat hierzu oder zur Verbesserung der RAM-Performance einen Vorschlag. Mein RAM läuft mit 1.176 MHz noch unter Standard!

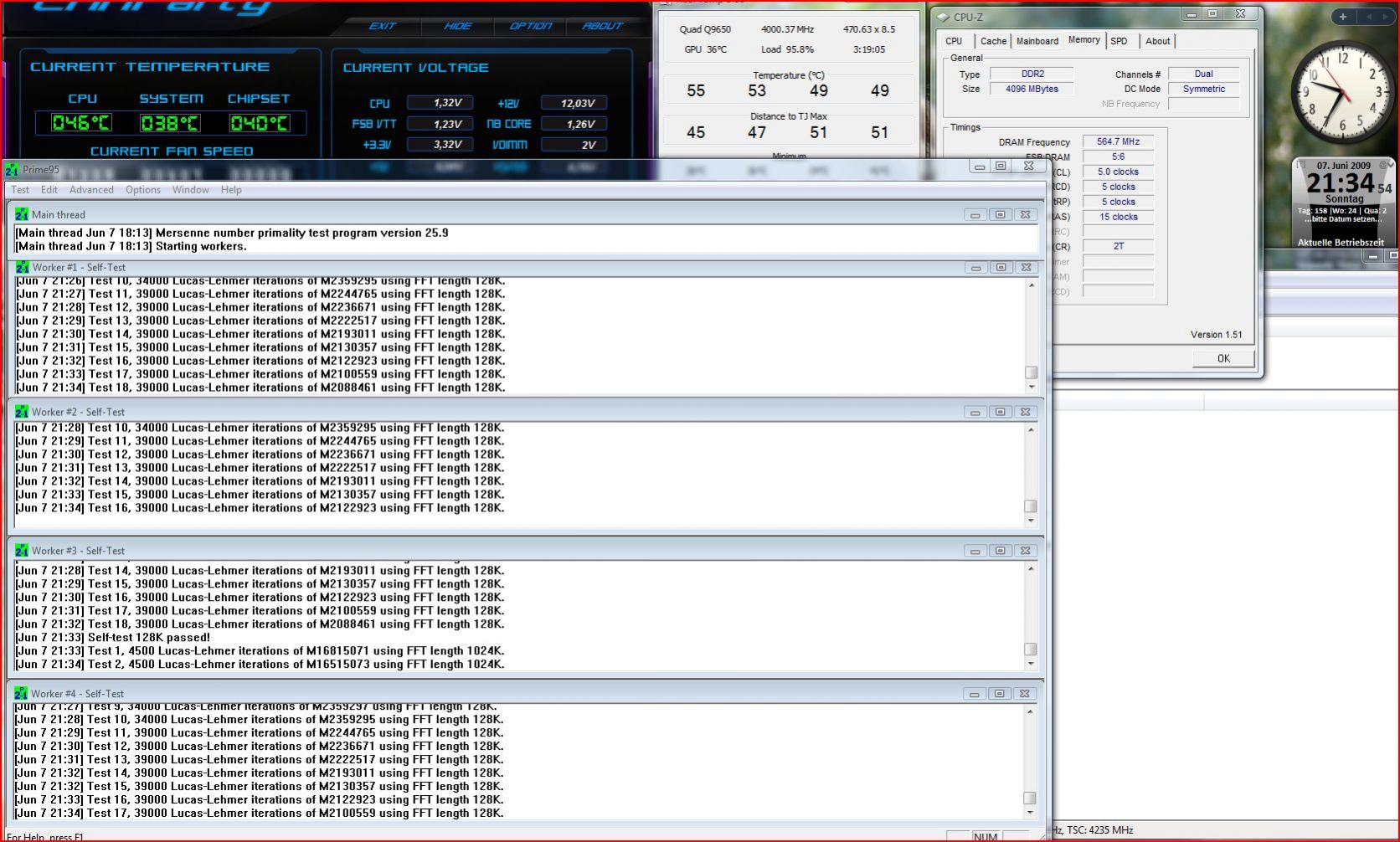

P.S. Leider wurde es nur rund 20 Stunden prime95 Custom, in Place FFTs, weil die edle Nachkommenschaft meine Absenz in Fitnessstudio für einen Stopp nutzte
- Muss ich das bios für e8600 flashen ?
