Hier noch ein Mal eine Auflistung, was die ganzen Errors in TM5 für einen Grund haben (nach Reihenfolge):

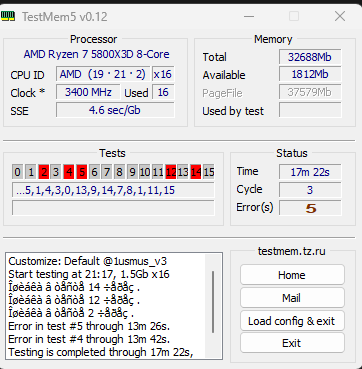

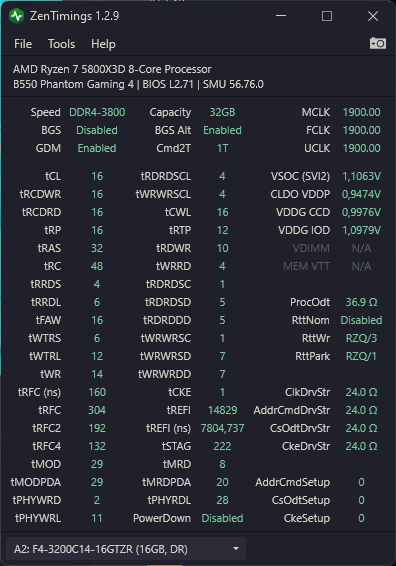

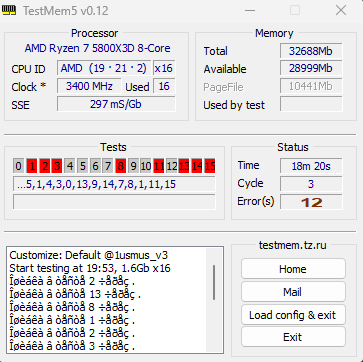

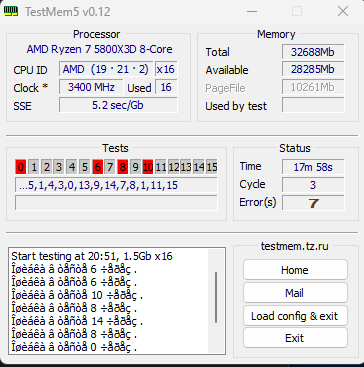

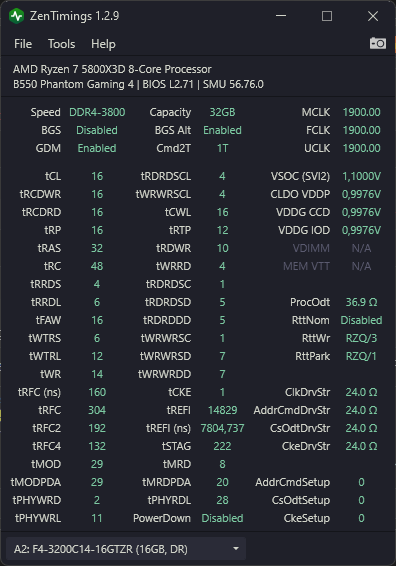

Die Error Codes Erklärungsversuche beziehen sich ausschließlich auf das 1usmusV3 Profil.
Error 0 refresh stable error = voltage cutoff choke
Error 1=Simple Test 16mb ~ can be voltage related, can be tRFC issues,
tiny timeout issues for example tRRD_L looks like a bit awkward
Error 2, 12 is a timeout issue, somewhere something ends too quickly or you lack voltage and cells are not recharged in time
a sync issue with other words which's first culprit is voltage somewhere or resistance somewhere
Error 3 & 4 by checking the MT.cfg - are MirrorMove errors
That set shows tRFC 2 issues and this tRFC "auto predicted" ? is wrong.
tRFC is so far always even
as tRFC stepping are 32,16,8,4,2 ,
Error 5 then 6 is a timings missmatch between dimms (data mirror move)
Error 6 is purely related to the IMC , be if procODT, CLDO_VDDP or vSOC
~ it translates to "i couldn't even start transfering data, i crashed"
4-6x error 6 result in full bluescreen
Error 7, 11 are burst tests
it will error out if CAD_BUS is not optimal
will error out if tRFC is too low
mostly errors out only after time
Error 9 burst test 4mb is a voltage stability issue
If you've lowered tRP , increase vDimm a tiny bit
If you've increased tRP to longer delay, decrease vDIMM +0.01 , one tiny step
Error 10 mostly affects the first 5 main timings
- noticed it can be tRCDWR to RD. can be tRP too, but it also can be the last two tRDWR & tRDRD which don't play well with your main tRCDWR/RD
Error 13 = Simple Test 64mb, timeout while transfering big data
= full crash, nearly always related to voltage ~ as memory was not able to autocorrect it
Error 14 we know is MirrorMove Omb, a timeout issue
- it can error after the 2nd or 3rd pass if something is off my some ns and just "got lost"
).
