Ostwolf89 · 31. März 2020

Das klingt ja erstmal nicht schlecht.

Wenn du höher gehen willst einfach Bescheid geben dann schauen wir uns das nochmal an. ^^
Du hast hierbei aber garantiert noch Luft zum optimieren der Timings.^^

spamarama · 31. März 2020

spamarama schrieb:
Danke für die Tipps!
Habe ProcOdt jetzt auf 53, wie mittels Ryzen DRAM Calculator 1.7.0 empfohlen und GDM aus.
Damit bootet er zumindest problemlos. Werde jetzt mal schauen wie stabil das ist und mich dann morgen ransetzen und die Timings reduzieren. Anbei die neuen Werte.

Wie ich jetzt feststellen muss, bootet der Rechner mit diesen Werten nicht sauber hoch. Der Rechner benötigt oftmals zwei Anläufe, bevor Windows gestartet wird. Gibt es da allgemeine Tipps? ProcODT weiter erhöhen?

Pr3dator · 31. März 2020

Ostwolf89 schrieb:
Also zu deinen Fragen bist du hier leider im falschen Forumsteil gelandet.
Hier ist das RAM OC angesiedelt, Es gibt auch einen Teil der sich mit MB Einstellungen beschäftigt. (Ich glaube da ist der discord auch eine gute Anlaufstelle)

Schon, aber wenn ich es bisher richtig Verstanden habe, gibt es ja auch RAM OC relevante Bios Einstellungen oder nicht? und um die ging es mir Hauptsächlich.

Ostwolf89 schrieb:
Ein paar antworten kann ich dir trotzdem geben:
Load Line Calibration -Auto
sofern nicht wirklich großartige Probleme bestehen auf Auto lassen. Das ändert nur ein wenig das Anlaufverhalten der Spannung beim Boosten der CPU.
Precision Boost Overdrive- Auto, Enable, Disable?
Disabled oder Advancded mit 200MHz auto OC

Ansonsten würde ich noch die C-States aktivieren, damit nicht benutzte Kerne schlafen gelegt werden.
Mehr Einstellungen habe ich bei meinem 3700x auch nicht gemacht. Und nebenbei dann halt im späteren Verlauf noch ein RAM OC auf die Sticks gepackt.^^

Danke.
Werde ich mir mal Notieren und dann mal am WE testen inkl. den ersten RAM OC Tests.

VG

Ostwolf89 · 31. März 2020

Pr3dator schrieb:
Schon, aber wenn ich es bisher richtig Verstanden habe, gibt es ja auch RAM OC relevante Bios Einstellungen oder nicht? und um die ging es mir Hauptsächlich.

RAM Einstellungen

Das einzige was mir einfallen würde, wäre das XMP-Profil zu aktivieren. Das wäre meine initiale Eingangssache.
Okay, dann meld dich zu gegebener Zeit.

Es wäre dann im Verlauf noch schön, wenn du uns noch sagen würdest, was du so verbaut hast. CPU, Kühler, MB und natürlich der Arbeitsspeicher.

Wenn du dich ans RAM OC wagen willst. Aber versuch dich erstmal selbst. Ich habe auch ein wenig gebraucht, um das Kit hier am PC (R5 2600x) von 2933 auf jetzt 3400 zu übertakten). Mein R7 3700x steht in Signatur.

cm87 · 31. März 2020

@Pr3dator hier mal meine Einstellungen:

[2020/03/31 21:24:04]
Ai Overclock Tuner [Auto]
Performance Enhancer [Auto]
Memory Frequency [DDR4-3800MHz]
FCLK Frequency [1900MHz]
Core Performance Boost [Auto]
CPU Core Ratio [Auto]
Core VID [Auto]
CCX0 Ratio [Auto]
CCX1 Ratio [Auto]
TPU [Keep Current Settings]
Performance Bias [Auto]
Precision Boost Overdrive [Auto]
Precision Boost Overdrive Scalar [Auto]
Max CPU Boost Clock Override [75MHz]
Platform Thermal Throttle Limit [Auto]
DRAM CAS# Latency [14]
Trcdrd [18]
Trcdwr [14]
DRAM RAS# PRE Time [15]
DRAM RAS# ACT Time [32]
Trc [60]
TrrdS [4]
TrrdL [6]
Tfaw [16]
TwtrS [5]
TwtrL [10]
Twr [16]
Trcpage [Auto]
TrdrdScl [4]
TwrwrScl [4]
Trfc [550]
Trfc2 [Auto]
Trfc4 [Auto]
Tcwl [14]
Trtp [12]
Trdwr [10]
Twrrd [4]
TwrwrSc [1]
TwrwrSd [7]
TwrwrDd [7]
TrdrdSc [1]
TrdrdSd [5]
TrdrdDd [5]
Tcke [1]
ProcODT [36.9 ohm]
Cmd2T [1T]
Gear Down Mode [Enabled]
Power Down Enable [Disabled]
RttNom [Auto]
RttWr [Auto]
RttPark [Auto]
MemAddrCmdSetup [Auto]
MemCsOdtSetup [Auto]
MemCkeSetup [Auto]
MemCadBusClkDrvStren [Auto]
MemCadBusAddrCmdDrvStren [Auto]
MemCadBusCsOdtDrvStren [Auto]
MemCadBusCkeDrvStren [Auto]
Mem Over Clock Fail Count [Auto]
Voltage Monitor [Die Sense]
CPU Load-line Calibration [Auto]
CPU Current Capability [120%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Auto]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
CPU Power Thermal Control [120]
VDDSOC Load-line Calibration [Level 3]
VDDSOC Current Capability [Auto]
VDDSOC Switching Frequency [Auto]
VDDSOC Phase Control [Auto]
DRAM Current Capability [130%]
DRAM Power Phase Control [Extreme]
DRAM Switching Frequency [Manual]
Fixed DRAM Switching Frequency(KHz) [400]
SB Clock Spread Spectrum [Disabled]
VTTDDR Voltage [Auto]
VPP_MEM Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
VDDP Voltage [Auto]
1.8V Standby Voltage [Auto]
CPU 3.3v AUX [Auto]
1.2V SB Voltage [Auto]
DRAM R1 Tune [Auto]
DRAM R2 Tune [Auto]
DRAM R3 Tune [Auto]
DRAM R4 Tune [Auto]
PCIE Tune R1 [Auto]
PCIE Tune R2 [Auto]
PCIE Tune R3 [Auto]
PLL Tune R1 [Auto]
PLL reference voltage [Auto]
T Offset [Auto]
Sense MI Skew [Auto]
Sense MI Offset [Auto]
Promontory presence [Auto]
Clock Amplitude [Auto]
CPU Core Voltage [Auto]
CPU SOC Voltage [Manual]
- VDDSOC Voltage Override [1.10000]
DRAM Voltage [1.50000]
VDDG CCD Voltage Control [0.950]
VDDG IOD Voltage Control [0.950]
CLDO VDDP voltage [900]
1.00V SB Voltage [Auto]
1.8V PLL Voltage [Auto]
TPM Device Selection [Discrete TPM]
Erase fTPM NV for factory reset [Enabled]
PSS Support [Enabled]
NX Mode [Enabled]
SVM Mode [Disabled]
SMT Mode [Auto]
Core Leveling Mode [Automatic mode]
SATA Port Enable [Enabled]
SATA Mode [AHCI]
NVMe RAID mode [Disabled]
SMART Self Test [Enabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
HD Audio Controller [Enabled]
PCIEX16_2 Bandwidth [X8 Mode]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [All On]
Realtek 2.5G LAN Controller [Enabled]
Realtek PXE OPROM [Disabled]
Intel LAN Controller [Enabled]
Intel LAN OPROM [Disabled]
ASM1074 Controller [Enabled]
Wi-Fi 6 (802.11ax) Controller [Disabled]
Bluetooth Controller [Enabled]
USB power delivery in Soft Off state (S5) [Enabled]
PCIEX16_1 Mode [Auto]
PCIEX16_2 Mode [Auto]
PCIEX1 Mode [Auto]
PCIEX16_3 Mode [Auto]
M.2_1 Link Mode [Auto]
M.2_2 Link Mode [Auto]
SB Link Mode [Auto]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
SR-IOV Support [Disabled]
ASPM Support [Disabled]
Legacy USB Support [Enabled]
XHCI Hand-off [Enabled]
VendorCoProductCode [Auto]
U32G2_2 [Enabled]
U32G2_3 [Enabled]
U32G2_4 [Enabled]
U32G1_10 [Enabled]
U32G1_11 [Enabled]
USB12 [Enabled]
USB13 [Enabled]
U32G2_7 [Enabled]
U32G2_8 [Enabled]
U32G2_C9 [Enabled]
Network Stack [Disabled]
Device [SATA6G_4: WDC WD1003FZEX-00K3CA0]
CPU Temperature [Monitor]
CPU Package Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Temperature [Monitor]
PCH Temperature [Monitor]
T_Sensor Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
High Amp Fan Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
PCH Fan Speed [Monitor]
Flow Rate [Monitor]
CPU Core Voltage [Monitor]
PCH Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
DRAM Voltage [Monitor]
Core PLL Voltage [Monitor]
CPU Q-Fan Control [PWM Mode]
CPU Fan Step Up [0 sec]
CPU Fan Step Down [0 sec]
CPU Fan Speed Lower Limit [200 RPM]
CPU Fan Profile [Manual]
CPU Upper Temperature [70]
CPU Fan Max. Duty Cycle (%) [100]
CPU Middle Temperature [25]
CPU Fan Middle Duty Cycle (%) [50]
CPU Lower Temperature [20]
CPU Fan Min. Duty Cycle (%) [50]
Chassis Fan 1 Q-Fan Control [PWM Mode]
Chassis Fan 1 Q-Fan Source [MotherBoard]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [600 RPM]
Chassis Fan 1 Profile [Manual]
Chassis Fan 1 Upper Temperature [70]
Chassis Fan 1 Max. Duty Cycle (%) [100]
Chassis Fan 1 Middle Temperature [25]
Chassis Fan 1 Middle Duty Cycle (%) [50]
Chassis Fan 1 Lower Temperature [20]
Chassis Fan 1 Min. Duty Cycle (%) [50]
Chassis Fan 2 Q-Fan Control [PWM Mode]
Chassis Fan 2 Q-Fan Source [MotherBoard]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [600 RPM]
Chassis Fan 2 Profile [Manual]
Chassis Fan 2 Upper Temperature [70]
Chassis Fan 2 Max. Duty Cycle (%) [100]
Chassis Fan 2 Middle Temperature [25]
Chassis Fan 2 Middle Duty Cycle (%) [50]
Chassis Fan 2 Lower Temperature [20]
Chassis Fan 2 Min. Duty Cycle (%) [50]
Chassis Fan 3 Q-Fan Control [PWM Mode]
Chassis Fan 3 Q-Fan Source [MotherBoard]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [600 RPM]
Chassis Fan 3 Profile [Manual]
Chassis Fan 3 Upper Temperature [70]
Chassis Fan 3 Max. Duty Cycle (%) [100]
Chassis Fan 3 Middle Temperature [25]
Chassis Fan 3 Middle Duty Cycle (%) [50]
Chassis Fan 3 Lower Temperature [20]
Chassis Fan 3 Min. Duty Cycle (%) [50]
High Amp Fan Q-Fan Control [Auto]
High Amp Fan Q-Fan Source [CPU]
High Amp Fan Step Up [0 sec]
High Amp Fan Step Down [0 sec]
High Amp Fan Speed Low Limit [200 RPM]
High Amp Fan Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
PCH Fan Q-Fan Control | Note warning below [PWM Mode]
PCH Fan Step Up [0 sec]
PCH Fan Step Down [0 sec]
PCH Fan Speed Low Limit [200 RPM]
PCH Fan Profile [Manual]
PCH Fan Upper Temperature [93]
PCH Fan Max. Duty Cycle (%) [100]
PCH Fan Middle Temperature [60]
PCH Fan Middle Duty Cycle(%) [40]
PCH Fan Lower Temperature [55]
PCH Fan Min. Duty Cycle (%) [0]
PSPP Policy [Auto]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Fast Boot]
Boot Logo Display [Auto]
Bootup NumLock State [On]
POST Delay Time [1 sec]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Launch CSM [Disabled]
OS Type [Other OS]
AMI Native NVMe Driver Support [Enabled]
Flexkey [Reset]
Setup Animator [Disabled]
Load from Profile [1]
Profile Name [3800c14]
Save to Profile [8]
DIMM Slot Number [DIMM_A2]
Bus Interface [PCIEX16_1]
Download & Install ARMOURY CRATE app [Disabled]
CPU Frequency [0]
CPU Voltage [0]
Core control [Auto]
SMT Control [Auto]
Overclock [Auto]
Power Down Enable [Auto]
Cmd2T [Auto]
Gear Down Mode [Auto]
CAD Bus Timing User Controls [Auto]
CAD Bus Drive Strength User Controls [Auto]
Data Bus Configuration User Controls [Auto]
Infinity Fabric Frequency and Dividers [Auto]
Precision Boost Overdrive [Auto]
LN2 Mode [Auto]
SoC Voltage [0]
SoC/Uncore OC Mode [Disabled]
VDDP Voltage Control [Auto]
VDDG Voltage Control [Auto]
Custom Pstate0 [Auto]
L1 Stream HW Prefetcher [Auto]
L2 Stream HW Prefetcher [Auto]
Core Performance Boost [Auto]
Global C-state Control [Enabled]
DRAM ECC Enable [Disabled]
Indirect Branch Prediction Speculation [Auto]
DRAM scrub time [Auto]
Poison scrubber control [Auto]
Redirect scrubber control [Auto]
Redirect scrubber limit [Auto]
NUMA nodes per socket [Auto]
Memory interleaving [Auto]
Memory interleaving size [Auto]
1TB remap [Auto]
DRAM map inversion [Auto]
ACPI SRAT L3 Cache As NUMA Domain [Auto]
ACPI SLIT Distance Control [Auto]
ACPI SLIT remote relative distance [Auto]
GMI encryption control [Auto]
xGMI encryption control [Auto]
CAKE CRC perf bounds Control [Auto]
4-link xGMI max speed [Auto]
3-link xGMI max speed [Auto]
Disable DF to external IP SyncFloodPropagation [Auto]
Disable DF sync flood propagation [Auto]
CC6 memory region encryption [Auto]
Memory Clear [Auto]
Overclock [Auto]
Power Down Enable [Auto]
Cmd2T [Auto]
Gear Down Mode [Auto]
CAD Bus Timing User Controls [Auto]
CAD Bus Drive Strength User Controls [Auto]
Data Bus Configuration User Controls [Auto]
Data Poisoning [Auto]
DRAM Post Package Repair [Disable]
RCD Parity [Auto]
DRAM Address Command Parity Retry [Auto]
Write CRC Enable [Auto]
DRAM Write CRC Enable and Retry Limit [Auto]
Disable Memory Error Injection [True]
DRAM ECC Symbol Size [Auto]
DRAM UECC Retry [Auto]
TSME [Auto]
Data Scramble [Auto]
DFE Read Training [Auto]
FFE Write Training [Auto]
PMU Pattern Bits Control [Auto]
MR6VrefDQ Control [Auto]
CPU Vref Training Seed Control [Auto]
Chipselect Interleaving [Auto]
BankGroupSwap [Auto]
BankGroupSwapAlt [Auto]
Address Hash Bank [Auto]
Address Hash CS [Auto]
Address Hash Rm [Auto]
SPD Read Optimization [Enabled]
MBIST Enable [Disabled]
Pattern Select [PRBS]
Pattern Length [3]
Aggressor Channel [1 Aggressor Channel]
Aggressor Static Lane Control [Disabled]
Target Static Lane Control [Disabled]
Worst Case Margin Granularity [Per Chip Select]
Read Voltage Sweep Step Size [1]
Read Timing Sweep Step Size [1]
Write Voltage Sweep Step Size [1]
Write Timing Sweep Step Size [1]
IOMMU [Auto]
Precision Boost Overdrive [Auto]
Precision Boost Overdrive Scalar [Auto]
FCLK Frequency [Auto]
SOC OVERCLOCK VID [0]
UCLK DIV1 MODE [Auto]
VDDP Voltage Control [Auto]
VDDG Voltage Control [Auto]
SoC/Uncore OC Mode [Auto]
LN2 Mode [Auto]
ACS Enable [Auto]
PCIe ARI Support [Auto]
PCIe Ten Bit Tag Support [Auto]
Max Voltage Offset [Auto]
cTDP Control [Auto]
EfficiencyModeEn [Auto]
Package Power Limit Control [Auto]
APBDIS [Auto]
DF Cstates [Auto]
CPPC [Enabled]
CPPC Preferred Cores [Enabled]
BoostFmaxEn [Auto]
Early Link Speed [Auto]
CV test [Auto]
Loopback Mode [Auto]
Data Link Feature Exchange [Disabled]
Above 4GB MMIO Enable [Disabled]

Mongoo · 31. März 2020

Zu deinen bios Einstellungen. Hast du die Manuel aufgeschrieben oder gibt's dazu ein Tool?

cm87 · 31. März 2020

man kann im BIOS die Settings auf ein USB Stick speichern - und es heisst: manuell nicht Manuel

peterX · 1. April 2020

Also ich hab im Bios mir immer Screenshots gemacht(Usbstick und F12 drücken) damit ich die geänderten werte zur Hand hatte. Die was liefen, hatte ich dann aufs Handy gezogen, um zu sehen, wo der Fehler war.

Jaja der Manuel gelle.

Ostwolf89 · 1. April 2020

Also Ich hab unterschiedliche Profile abgespeichert. Aber naja wenn ich mal wieder ein Bios update mache, sind die dann futsch.

der arme Manuel xD

peterX · 1. April 2020

Bei mir wurden die Profile erst gespeichert, wenn sie Save waren. Macht ja sonst keinen Sinn, gelle.

Chillaholic · 1. April 2020

Moin, hab mir mal die Excel-Tabelle angeschaut und bin verwundert warum die Schreibraten so drastisch schwanken. Einige haben fast so hohe Schreib- wie Leseraten, bei anderen wie mir ist die etwa halbiert. Frage an die Profis, woran liegt das?

P.S. Wie komm ich in die Liste?

Reicht da ein Screenshot von AIDA?

TheOpenfield · 1. April 2020

CPU mit einem oder zwei CCDs. Liste mit 10K% Karhu als "stable".

Chillaholic · 1. April 2020

Danke für die Antwort.
Werd ich wohl noch etwas schrauben und noch mal Karhu anwerfen, Potential ist da noch.

Ostwolf89 · 1. April 2020

peterX schrieb:
Bei mir wurden die Profile erst gespeichert, wenn sie Save waren. Macht ja sonst keinen Sinn, gelle.

Ich hab keine Ahnung wie ich die Profile bei diesem Gigabyte Board ausleeren kann..
Aber für sich genommen habe ich 2 Profile, einem an dem ich gerade teste und ein 10.000% stabiles Karhu-Profil.

peterX · 1. April 2020

Versuch mal default laden und beim Speichern den Namen löschen und speichern. Entweder mault das Board rum oder es geht. habe es selbst noch nicht probiert, sondern das alte Profil überschrieben.

Ostwolf89 · 1. April 2020

Mault nicht aber schreibt dann intelligent wie es ist nameless hin XD
Vielleicht hilft nen Blick in die Anleitung

Handbuch sagt nein...xD

Ich klopf indes mal ab ob 1,41V genug für meine Ramsticks sind bei CL16

, CL 14 mögen sie nicht bei 3400MHz. (oder Spannung muss deutlich rauf)

peterX · 1. April 2020

peterX · 1. April 2020

Chillaholic schrieb:

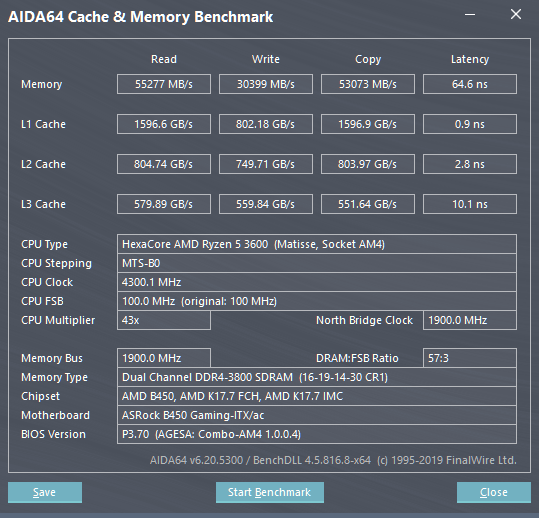

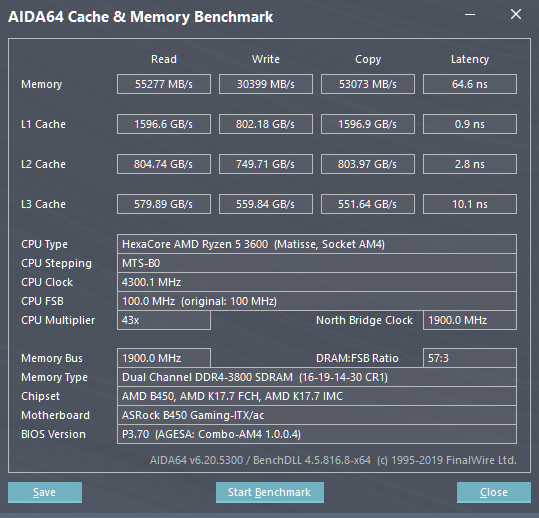

Einige haben fast so hohe Schreib- wie Leseraten, bei anderen wie mir ist die etwa halbiert. Frage an die Profis, woran liegt das?

Weil du eine CPU mit nur einen Die hast, das ist alles so normal und von AMD gewollt.

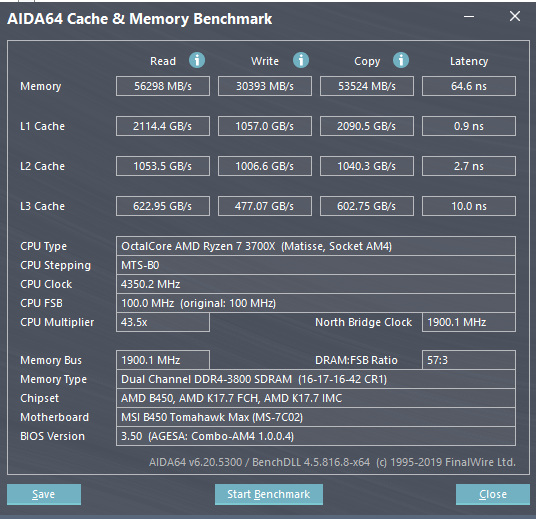

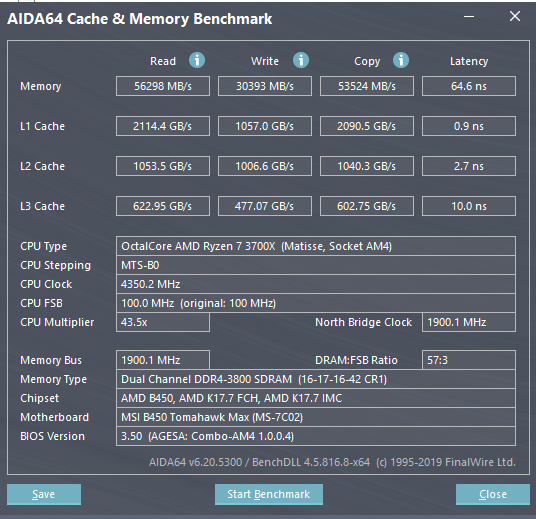

Zum Vergleich bei mir sieht es genauso aus.

Pr3dator · 2. April 2020

cm87 schrieb:
@Pr3dator hier mal meine Einstellungen:

[2020/03/31 21:24:04]
Ai Overclock Tuner [Auto]
Performance Enhancer [Auto]
Memory Frequency [DDR4-3800MHz]
FCLK Frequency [1900MHz]
Core Performance Boost [Auto]
CPU Core Ratio [Auto]
Core VID [Auto]
CCX0 Ratio [Auto]
CCX1 Ratio [Auto]
TPU [Keep Current Settings]
Performance Bias [Auto]
Precision Boost Overdrive [Auto]
Precision Boost Overdrive Scalar [Auto]
Max CPU Boost Clock Override [75MHz]
Platform Thermal Throttle Limit [Auto]
DRAM CAS# Latency [14]
Trcdrd [18]
Trcdwr [14]
DRAM RAS# PRE Time [15]
DRAM RAS# ACT Time [32]
Trc [60]
TrrdS [4]
TrrdL [6]
Tfaw [16]
TwtrS [5]
TwtrL [10]
Twr [16]
Trcpage [Auto]
TrdrdScl [4]
TwrwrScl [4]
Trfc [550]
Trfc2 [Auto]
Trfc4 [Auto]
Tcwl [14]
Trtp [12]
Trdwr [10]
Twrrd [4]
TwrwrSc [1]
TwrwrSd [7]
TwrwrDd [7]
TrdrdSc [1]
TrdrdSd [5]
TrdrdDd [5]
Tcke [1]
ProcODT [36.9 ohm]
Cmd2T [1T]
Gear Down Mode [Enabled]
Power Down Enable [Disabled]
RttNom [Auto]
RttWr [Auto]
RttPark [Auto]
MemAddrCmdSetup [Auto]
MemCsOdtSetup [Auto]
MemCkeSetup [Auto]
MemCadBusClkDrvStren [Auto]
MemCadBusAddrCmdDrvStren [Auto]
MemCadBusCsOdtDrvStren [Auto]
MemCadBusCkeDrvStren [Auto]
Mem Over Clock Fail Count [Auto]
Voltage Monitor [Die Sense]
CPU Load-line Calibration [Auto]
CPU Current Capability [120%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Auto]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
CPU Power Thermal Control [120]
VDDSOC Load-line Calibration [Level 3]
VDDSOC Current Capability [Auto]
VDDSOC Switching Frequency [Auto]
VDDSOC Phase Control [Auto]
DRAM Current Capability [130%]
DRAM Power Phase Control [Extreme]
DRAM Switching Frequency [Manual]
Fixed DRAM Switching Frequency(KHz) [400]
SB Clock Spread Spectrum [Disabled]
VTTDDR Voltage [Auto]
VPP_MEM Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
VDDP Voltage [Auto]
1.8V Standby Voltage [Auto]
CPU 3.3v AUX [Auto]
1.2V SB Voltage [Auto]
DRAM R1 Tune [Auto]
DRAM R2 Tune [Auto]
DRAM R3 Tune [Auto]
DRAM R4 Tune [Auto]
PCIE Tune R1 [Auto]
PCIE Tune R2 [Auto]
PCIE Tune R3 [Auto]
PLL Tune R1 [Auto]
PLL reference voltage [Auto]
T Offset [Auto]
Sense MI Skew [Auto]
Sense MI Offset [Auto]
Promontory presence [Auto]
Clock Amplitude [Auto]
CPU Core Voltage [Auto]
CPU SOC Voltage [Manual]
- VDDSOC Voltage Override [1.10000]
DRAM Voltage [1.50000]
VDDG CCD Voltage Control [0.950]
VDDG IOD Voltage Control [0.950]
CLDO VDDP voltage [900]
1.00V SB Voltage [Auto]
1.8V PLL Voltage [Auto]
TPM Device Selection [Discrete TPM]
Erase fTPM NV for factory reset [Enabled]
PSS Support [Enabled]
NX Mode [Enabled]
SVM Mode [Disabled]
SMT Mode [Auto]
Core Leveling Mode [Automatic mode]
SATA Port Enable [Enabled]
SATA Mode [AHCI]
NVMe RAID mode [Disabled]
SMART Self Test [Enabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
Hot Plug [Disabled]
HD Audio Controller [Enabled]
PCIEX16_2 Bandwidth [X8 Mode]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [All On]
Realtek 2.5G LAN Controller [Enabled]
Realtek PXE OPROM [Disabled]
Intel LAN Controller [Enabled]
Intel LAN OPROM [Disabled]
ASM1074 Controller [Enabled]
Wi-Fi 6 (802.11ax) Controller [Disabled]
Bluetooth Controller [Enabled]
USB power delivery in Soft Off state (S5) [Enabled]
PCIEX16_1 Mode [Auto]
PCIEX16_2 Mode [Auto]
PCIEX1 Mode [Auto]
PCIEX16_3 Mode [Auto]
M.2_1 Link Mode [Auto]
M.2_2 Link Mode [Auto]
SB Link Mode [Auto]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
SR-IOV Support [Disabled]
ASPM Support [Disabled]
Legacy USB Support [Enabled]
XHCI Hand-off [Enabled]
VendorCoProductCode [Auto]
U32G2_2 [Enabled]
U32G2_3 [Enabled]
U32G2_4 [Enabled]
U32G1_10 [Enabled]
U32G1_11 [Enabled]
USB12 [Enabled]
USB13 [Enabled]
U32G2_7 [Enabled]
U32G2_8 [Enabled]
U32G2_C9 [Enabled]
Network Stack [Disabled]
Device [SATA6G_4: WDC WD1003FZEX-00K3CA0]
CPU Temperature [Monitor]
CPU Package Temperature [Monitor]
MotherBoard Temperature [Monitor]
VRM Temperature [Monitor]
PCH Temperature [Monitor]
T_Sensor Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
CPU Fan Speed [Monitor]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
High Amp Fan Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
PCH Fan Speed [Monitor]
Flow Rate [Monitor]
CPU Core Voltage [Monitor]
PCH Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
DRAM Voltage [Monitor]
Core PLL Voltage [Monitor]
CPU Q-Fan Control [PWM Mode]
CPU Fan Step Up [0 sec]
CPU Fan Step Down [0 sec]
CPU Fan Speed Lower Limit [200 RPM]
CPU Fan Profile [Manual]
CPU Upper Temperature [70]
CPU Fan Max. Duty Cycle (%) [100]
CPU Middle Temperature [25]
CPU Fan Middle Duty Cycle (%) [50]
CPU Lower Temperature [20]
CPU Fan Min. Duty Cycle (%) [50]
Chassis Fan 1 Q-Fan Control [PWM Mode]
Chassis Fan 1 Q-Fan Source [MotherBoard]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [600 RPM]
Chassis Fan 1 Profile [Manual]
Chassis Fan 1 Upper Temperature [70]
Chassis Fan 1 Max. Duty Cycle (%) [100]
Chassis Fan 1 Middle Temperature [25]
Chassis Fan 1 Middle Duty Cycle (%) [50]
Chassis Fan 1 Lower Temperature [20]
Chassis Fan 1 Min. Duty Cycle (%) [50]
Chassis Fan 2 Q-Fan Control [PWM Mode]
Chassis Fan 2 Q-Fan Source [MotherBoard]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [600 RPM]
Chassis Fan 2 Profile [Manual]
Chassis Fan 2 Upper Temperature [70]
Chassis Fan 2 Max. Duty Cycle (%) [100]
Chassis Fan 2 Middle Temperature [25]
Chassis Fan 2 Middle Duty Cycle (%) [50]
Chassis Fan 2 Lower Temperature [20]
Chassis Fan 2 Min. Duty Cycle (%) [50]
Chassis Fan 3 Q-Fan Control [PWM Mode]
Chassis Fan 3 Q-Fan Source [MotherBoard]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [600 RPM]
Chassis Fan 3 Profile [Manual]
Chassis Fan 3 Upper Temperature [70]
Chassis Fan 3 Max. Duty Cycle (%) [100]
Chassis Fan 3 Middle Temperature [25]
Chassis Fan 3 Middle Duty Cycle (%) [50]
Chassis Fan 3 Lower Temperature [20]
Chassis Fan 3 Min. Duty Cycle (%) [50]
High Amp Fan Q-Fan Control [Auto]
High Amp Fan Q-Fan Source [CPU]
High Amp Fan Step Up [0 sec]
High Amp Fan Step Down [0 sec]
High Amp Fan Speed Low Limit [200 RPM]
High Amp Fan Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
PCH Fan Q-Fan Control | Note warning below [PWM Mode]
PCH Fan Step Up [0 sec]
PCH Fan Step Down [0 sec]
PCH Fan Speed Low Limit [200 RPM]
PCH Fan Profile [Manual]
PCH Fan Upper Temperature [93]
PCH Fan Max. Duty Cycle (%) [100]
PCH Fan Middle Temperature [60]
PCH Fan Middle Duty Cycle(%) [40]
PCH Fan Lower Temperature [55]
PCH Fan Min. Duty Cycle (%) [0]
PSPP Policy [Auto]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Fast Boot]
Boot Logo Display [Auto]
Bootup NumLock State [On]
POST Delay Time [1 sec]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Launch CSM [Disabled]
OS Type [Other OS]
AMI Native NVMe Driver Support [Enabled]
Flexkey [Reset]
Setup Animator [Disabled]
Load from Profile [1]
Profile Name [3800c14]
Save to Profile [8]
DIMM Slot Number [DIMM_A2]
Bus Interface [PCIEX16_1]
Download & Install ARMOURY CRATE app [Disabled]
CPU Frequency [0]
CPU Voltage [0]
Core control [Auto]
SMT Control [Auto]
Overclock [Auto]
Power Down Enable [Auto]
Cmd2T [Auto]
Gear Down Mode [Auto]
CAD Bus Timing User Controls [Auto]
CAD Bus Drive Strength User Controls [Auto]
Data Bus Configuration User Controls [Auto]
Infinity Fabric Frequency and Dividers [Auto]
Precision Boost Overdrive [Auto]
LN2 Mode [Auto]
SoC Voltage [0]
SoC/Uncore OC Mode [Disabled]
VDDP Voltage Control [Auto]
VDDG Voltage Control [Auto]
Custom Pstate0 [Auto]
L1 Stream HW Prefetcher [Auto]
L2 Stream HW Prefetcher [Auto]
Core Performance Boost [Auto]
Global C-state Control [Enabled]
DRAM ECC Enable [Disabled]
Indirect Branch Prediction Speculation [Auto]
DRAM scrub time [Auto]
Poison scrubber control [Auto]
Redirect scrubber control [Auto]
Redirect scrubber limit [Auto]
NUMA nodes per socket [Auto]
Memory interleaving [Auto]
Memory interleaving size [Auto]
1TB remap [Auto]
DRAM map inversion [Auto]
ACPI SRAT L3 Cache As NUMA Domain [Auto]
ACPI SLIT Distance Control [Auto]
ACPI SLIT remote relative distance [Auto]
GMI encryption control [Auto]
xGMI encryption control [Auto]
CAKE CRC perf bounds Control [Auto]
4-link xGMI max speed [Auto]
3-link xGMI max speed [Auto]
Disable DF to external IP SyncFloodPropagation [Auto]
Disable DF sync flood propagation [Auto]
CC6 memory region encryption [Auto]
Memory Clear [Auto]
Overclock [Auto]
Power Down Enable [Auto]
Cmd2T [Auto]
Gear Down Mode [Auto]
CAD Bus Timing User Controls [Auto]
CAD Bus Drive Strength User Controls [Auto]
Data Bus Configuration User Controls [Auto]
Data Poisoning [Auto]
DRAM Post Package Repair [Disable]
RCD Parity [Auto]
DRAM Address Command Parity Retry [Auto]
Write CRC Enable [Auto]
DRAM Write CRC Enable and Retry Limit [Auto]
Disable Memory Error Injection [True]
DRAM ECC Symbol Size [Auto]
DRAM UECC Retry [Auto]
TSME [Auto]
Data Scramble [Auto]
DFE Read Training [Auto]
FFE Write Training [Auto]
PMU Pattern Bits Control [Auto]
MR6VrefDQ Control [Auto]
CPU Vref Training Seed Control [Auto]
Chipselect Interleaving [Auto]
BankGroupSwap [Auto]
BankGroupSwapAlt [Auto]
Address Hash Bank [Auto]
Address Hash CS [Auto]
Address Hash Rm [Auto]
SPD Read Optimization [Enabled]
MBIST Enable [Disabled]
Pattern Select [PRBS]
Pattern Length [3]
Aggressor Channel [1 Aggressor Channel]
Aggressor Static Lane Control [Disabled]
Target Static Lane Control [Disabled]
Worst Case Margin Granularity [Per Chip Select]
Read Voltage Sweep Step Size [1]
Read Timing Sweep Step Size [1]
Write Voltage Sweep Step Size [1]
Write Timing Sweep Step Size [1]
IOMMU [Auto]
Precision Boost Overdrive [Auto]
Precision Boost Overdrive Scalar [Auto]
FCLK Frequency [Auto]
SOC OVERCLOCK VID [0]
UCLK DIV1 MODE [Auto]
VDDP Voltage Control [Auto]
VDDG Voltage Control [Auto]
SoC/Uncore OC Mode [Auto]
LN2 Mode [Auto]
ACS Enable [Auto]
PCIe ARI Support [Auto]
PCIe Ten Bit Tag Support [Auto]
Max Voltage Offset [Auto]
cTDP Control [Auto]
EfficiencyModeEn [Auto]
Package Power Limit Control [Auto]
APBDIS [Auto]
DF Cstates [Auto]
CPPC [Enabled]
CPPC Preferred Cores [Enabled]
BoostFmaxEn [Auto]
Early Link Speed [Auto]
CV test [Auto]
Loopback Mode [Auto]
Data Link Feature Exchange [Disabled]
Above 4GB MMIO Enable [Disabled]

Perfekt und Danke

cm87 · 2. April 2020

Pr3dator schrieb:
Perfekt und Danke

Finale Settings folgen noch.

Leserartikel AMD Ryzen - RAM OC Community

Lieutenant

Captain

Cadet 1st Year

Lieutenant

Mr. RAM OC Pro

Lieutenant

Mr. RAM OC Pro

Captain

Lieutenant

Captain

Fleet Admiral

Anhänge

Captain

Fleet Admiral

Lieutenant

Captain

Lieutenant

Captain

Captain

Cadet 1st Year

Mr. RAM OC Pro

Ähnliche Themen

Passend zum Thema
